2.4.6 Profibus Interface
The 9-pin female Profibus connector (white) is only available in the SC6000-1211 Profibus
model and allows connection between the host and the controller:
5
1
9
6

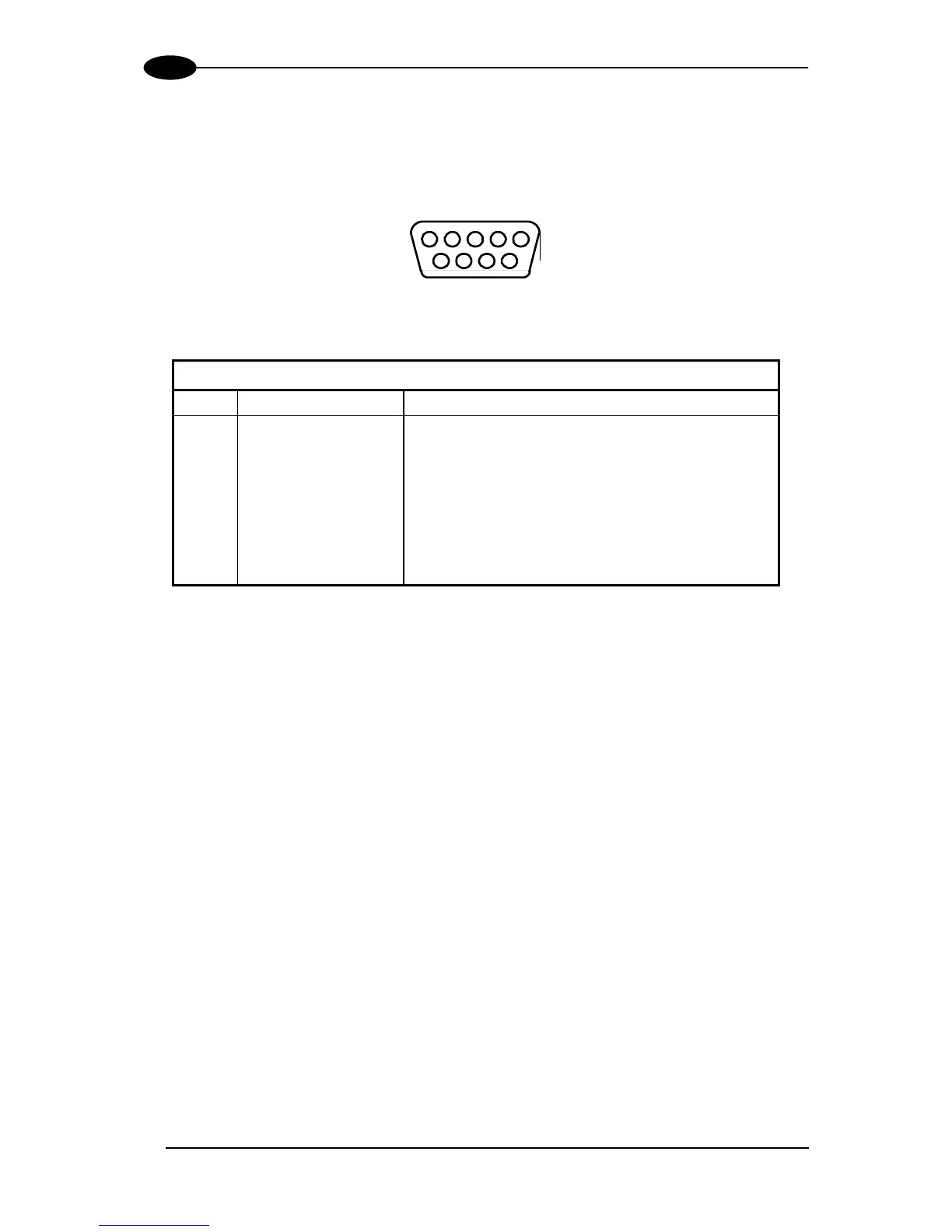

Figure 21 – Profibus 9-pin Female Connector
9-pin D-sub Female Profibus connector pinout
Pin
Name
Function
1
Shield*
Shield, protective ground resp.
2
N.C.
Not connected
3
B-LINE (RxD/TxD-P)
Received/Transmitted data-P
4
CNTR-P**
Repeater control signal
5
DGND
Data ground (M5V)
6
+5 V
Voltage plus (P5V)
7
N.C.
Not connected
8
A-LINE (RxD/TxD-N)
Received/Transmitted data
9
CNTR-N**
Repeater control signal
 signal is optional
** signal is optional; RS485 level
The Profibus interface is used for communication with a Host and allows expanding the
networking and remote diagnostic capabilities of the controller.
For further details refer to the “Profibus_Fam6k.pdf” document provided as supplementary
documentation.
