EXTENDED I/O

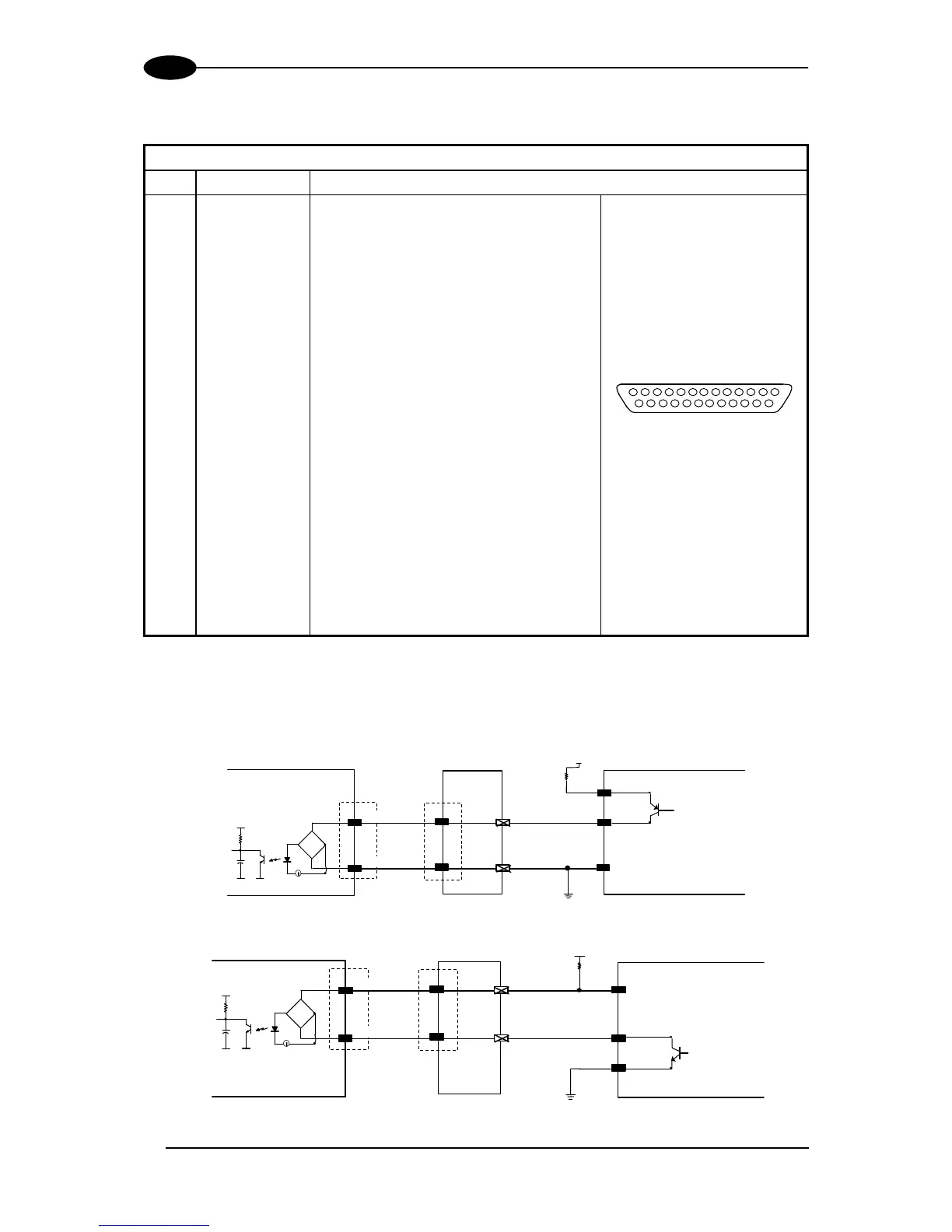

25-pin D-Sub Male Connector Pinout
Pin
Name
Function
1
VS_OUTPUTS
Power for outputs
25
13
14
1
25-pin Female D-sub
Connector
2
IN1 A
Input signal 1 - polarity insensitive
3
IN2 A
Input signal 2 - polarity insensitive
4
IN3 A
Input signal 3 - polarity insensitive
5
GND
Ground
6
OUT1+
Configurable digital output 1 - positive pin
7
OUT2+
Configurable digital output 2 - positive pin
8
OUT3+
Configurable digital output 3 - positive pin
9
VS_INPUTS
Power for inputs
10
OUT4+
Configurable digital output 4 - positive pin
11
OUT5+
Configurable digital output 5 - positive pin
12
OUT6+
Configurable digital output 6 - positive pin
13
GND
Ground
14
GND
Ground
15
IN1 B
Input signal 1 - polarity insensitive
16
IN2 B
Input signal 2 - polarity insensitive
17
IN3 B
Input signal 3 - polarity insensitive
18
GND
Ground
19
OUT1-
Configurable digital output 1 - negative pin
20
OUT2-
Configurable digital output 2 - negative pin
21
OUT3-
Configurable digital output 3 - negative pin
22
GND
Ground
23
OUT4-
Configurable digital output 4 - negative pin
24
OUT5-
Configurable digital output 5 - negative pin
25
OUT6-
Configurable digital output 6 - negative pin
Inputs
All inputs are optocoupled.
USER INTERFACE
SC6000
PSIN
+ 5V
A/B
Vext
B/A
V
~
~
+
-
Ground
PWO
Signal
Figure 47 – PNP Command Input with Electrical Isolation
V
USER INTERFACE
SC6000
PSIN
+ 5V
A/B
B/A
~
~
+
-
PWO
Vext
Ground
Signal
Figure 48 - NPN Command Input with Electrical Isolation
