Datalogic SC6000 User Manual

INSTALLATION
13
2

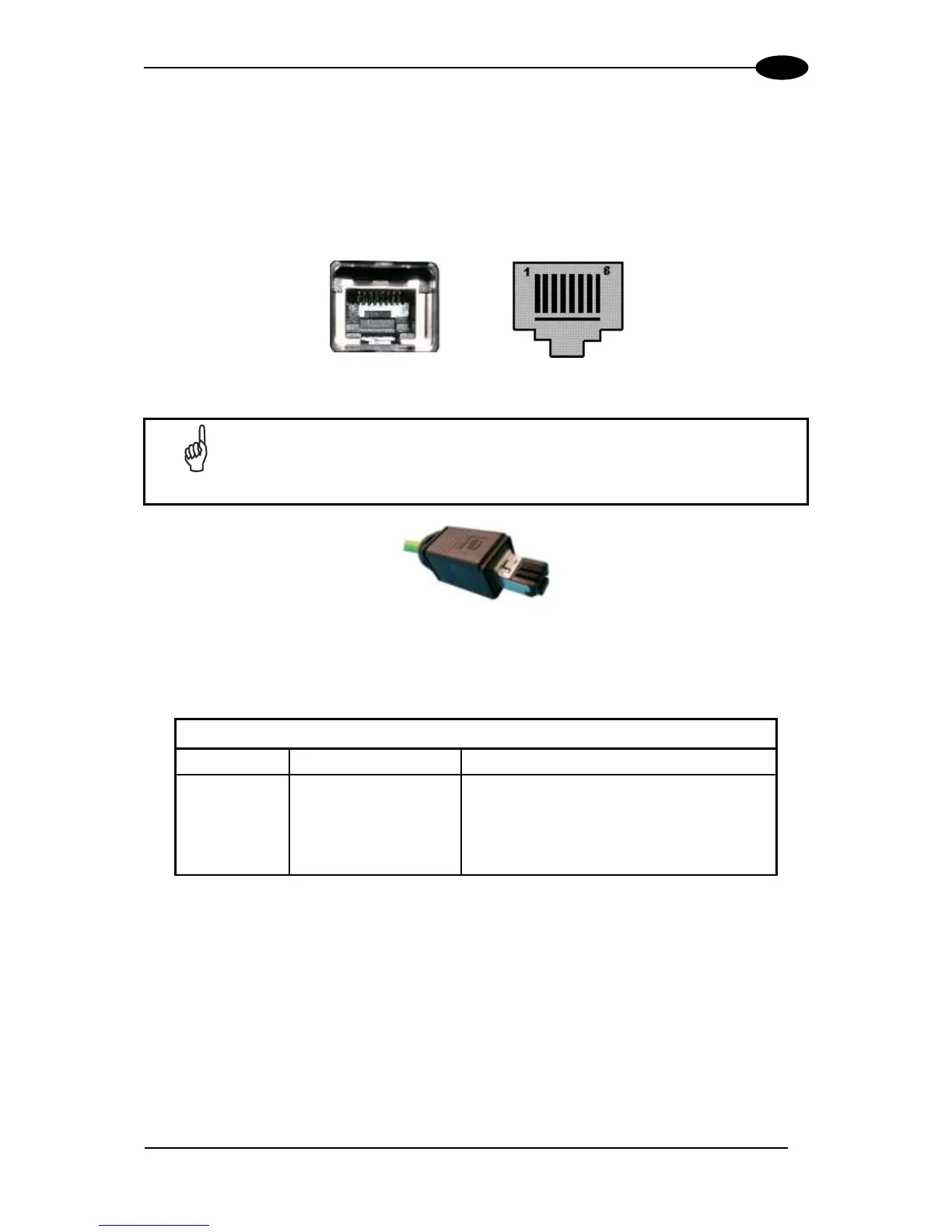

2.4.4 Ethernet Interface
This connector is available for all SC6000 Controller models and allows the Ethernet
connection to the host.
In the SC6000-1230 Dual Ethernet there are two Ethernet connectors for secondary host
connections.
Figure 16 – SC6000 Harting RJ Industrial® Female Connector
NOTE
For Ethernet connections, always use the Harting RJ Industrial® Push Pull
Ethernet connector (included in the package). This connector assures a
robust connection and full IP rated protection.
Figure 17 – Harting RJ Industrial® Push Pull Male Connector
This interface and the connector pinout (see the following table) are IEEE 802.3 10 BaseT
and IEEE 802.3u 100 BaseTx compliant.
RJ45 Modular Jack Pinout
Pin
Name
Function
1
TX +
Transmitted data (+)
2
TX -
Transmitted data (-)
3
RX +
Received data (+)
6
RX -
Received data (-)
4, 5, 7, 8
N.C.
Not connected
