INSTALLATION
19
2
2.5.2 Redundant System Layout
For large local Lonworks networks, a redundant system can per configured in which two
SC6000 Controllers are used together with their respective PWO power supply/junction box
units. The scanners are distributed equally between the PWO units. In this case one of the
SC6000 Controllers is dedicated as the working or active unit while the other functions as a
dedicated protecting or backup unit.

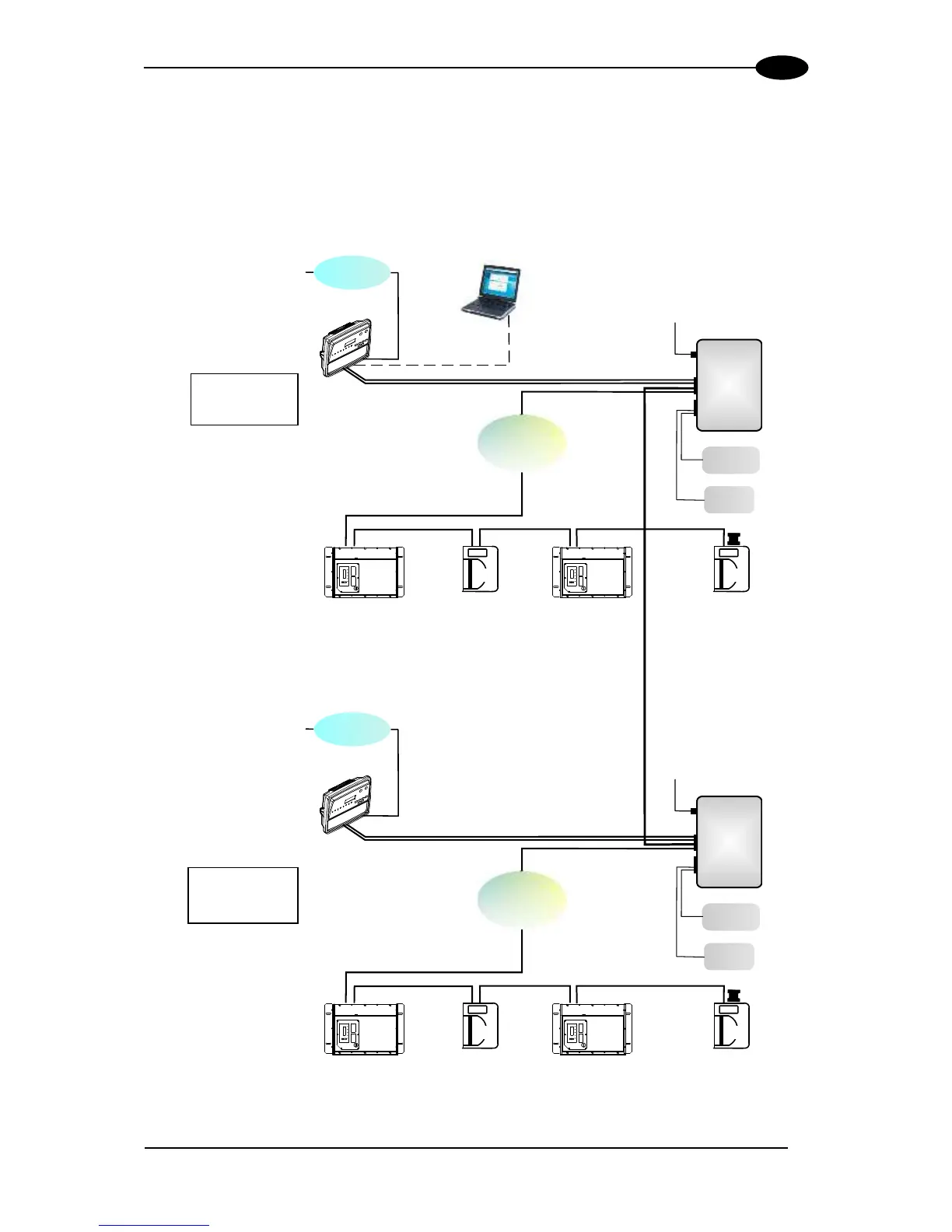

Figure 24 - Redundant Reading Station Layout with DX8200A and DS8100A Scanners
AUX
CAB-SC6103
Extended I/O
ETHERNET
SC6000
CAB-SC6003
CAB-SC6013
Power/Net
VAC INPUT
PWO
LONWORKS
ENCODER
PS
PS Aux
CAB-81xx
CAB-81xx
BTK-8100
CAB-81xx
CAB-81xx
CAB-81xx
Extended I/O
ETHERNET
SC6000
CAB-SC6003
CAB-SC6013
Power/Net
VAC INPUT
PWO
CAB-PWO 03
Redundancy
CAB-81xx
CAB-81xx
CAB-81xx
BTK-8100
DX8200A
DS8100A
DX8200A
DS8100A
ENCODER
PS
PS Aux
LONWORKS
Working
Controller
Protecting
Controller
to Host
to Host
DX8200A
DS8100A
DX8200A
DS8100A
A
H
G
C
D
B
E
F
