Datalogic SC6000 User Manual

INSTALLATION
15
2

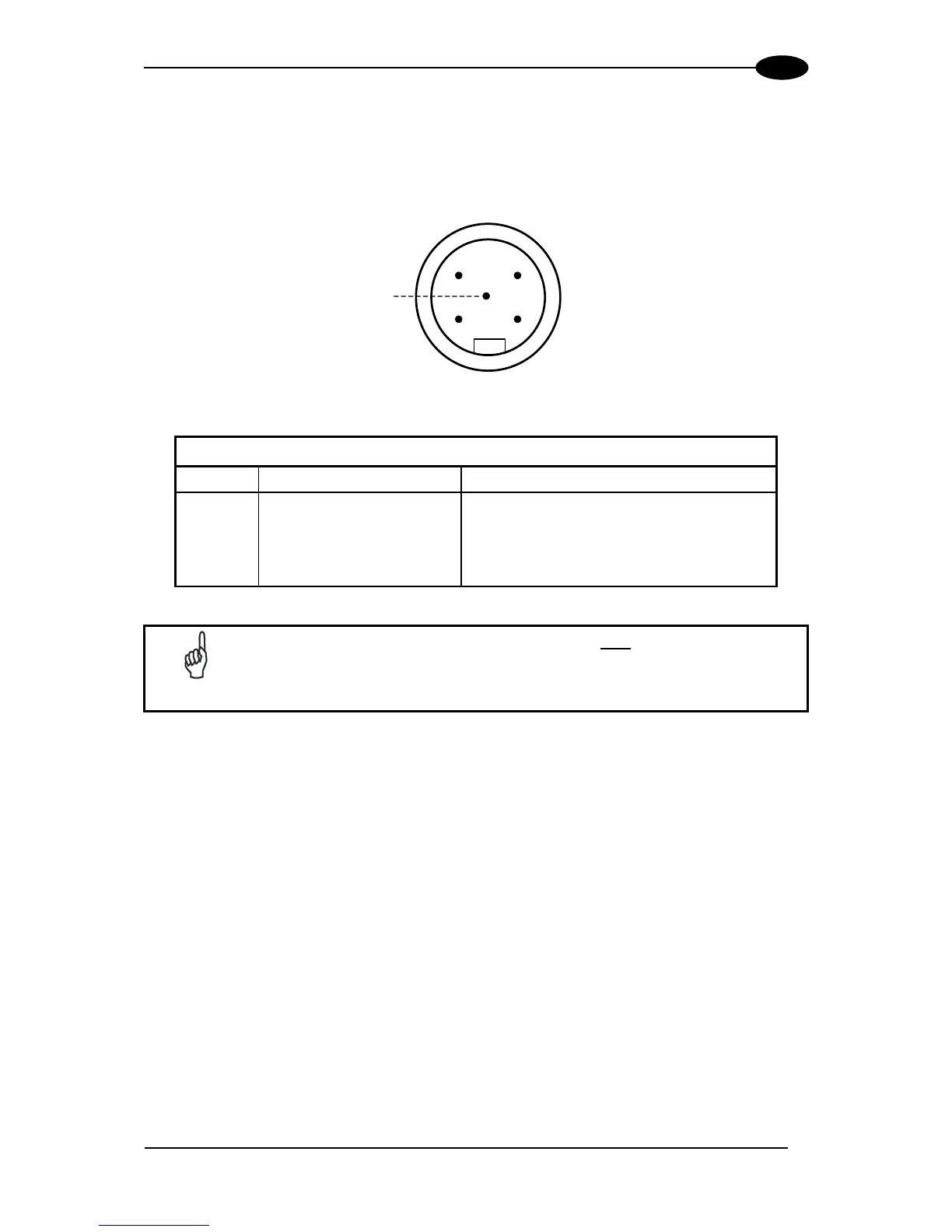

2.4.5 DeviceNet Interface
The 5-pin male connector is only available in the SC6000-1215 DeviceNet model and allows
connection between the host and the controller:
1
3
2
4
5
Figure 20 – DeviceNet 5-pin Male Connector
5-pin DeviceNet connector pinout
Pin
Name
Function
2
V +
Supply voltage – positive pin
5
CAN_L
CAN bus data line – L
1
SHIELD
Shield
4
CAN_H
CAN bus data line – H
3
V -
Supply voltage – negative pin
NOTE
The power supplied on pin V+ and V- is used only to propagate power to
the section of the DeviceNet board directly connected to the Bus. It is
completely isolated from the SC6000 power, which must be supplied on pin
16 and pin 3, 4 of the 25-pin Power/Net connector.
