SC6000
6
2
2.3 MECHANICAL MOUNTING
To mount the SC6000 Controller on the reading station frame proceed as follows:
1 Mount the bracket on the reading station frame: the slots on the bracket will help obtain
the best positioning. When working in environments characterized by strong vibrations,
set the screws as close as possible to the bracket edges, see Figure 5.
2 Tighten the ST-222 bracket to the reading station frame using the screws and washers.

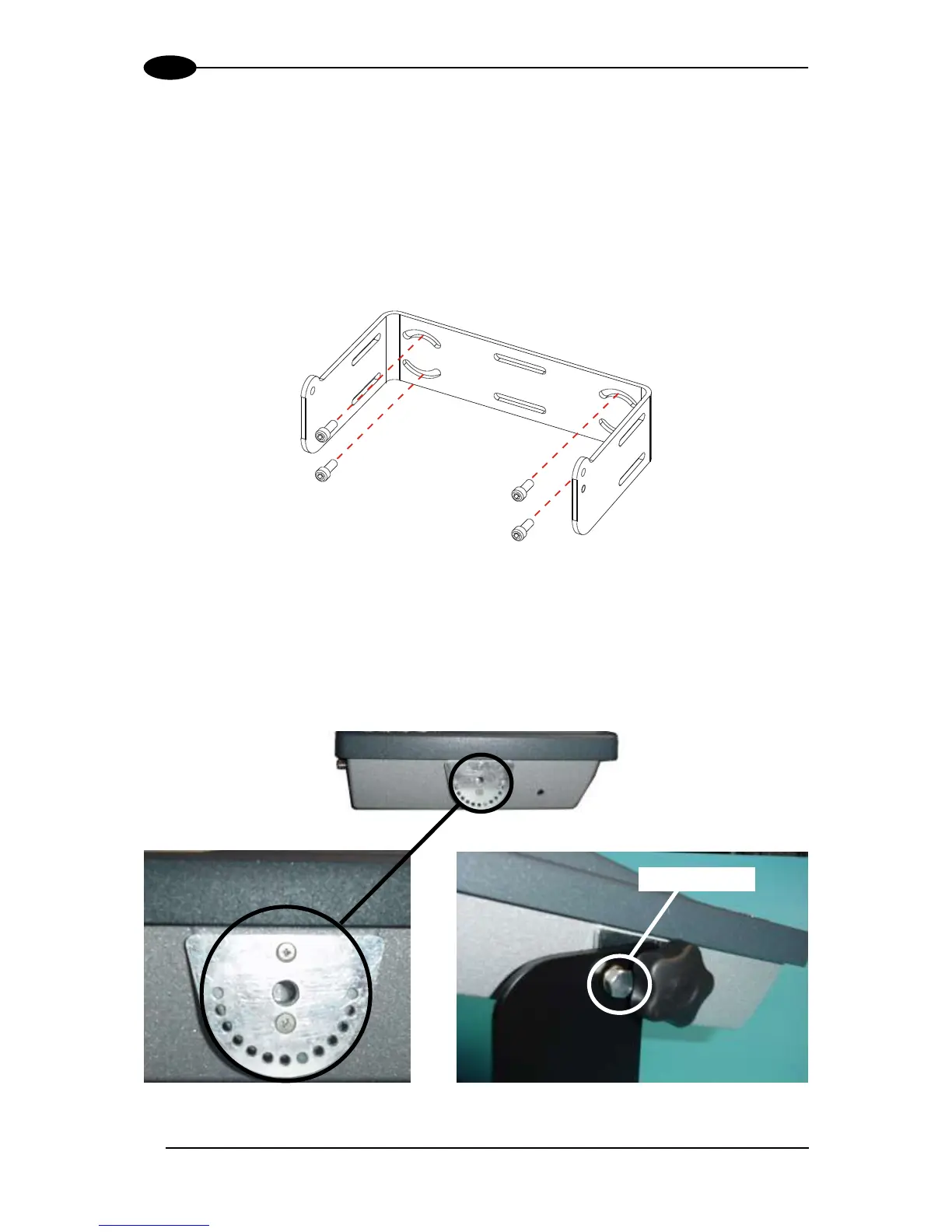

Figure 5 – Mounting the bracket on the reading station frame
3 Position the SC6000 Controller at the top of the bracket: make sure the two large round
openings coincide to the ones located at the edges of the SC6000 Controller.
4 While supporting the SC6000 Controller, rotate the whole device until it is aligned for the
best viewing position, then insert the set pin screw with locking washer until it inserts into
one of the small positioning holes located on the terminal bracket.
Figure 6 – SC6000 Controller Side View with Punched Steel Ring and Relative Set Pin Screw
Set pin screw
