Datalogic SC6000 User Manual

ALTERNATIVE CONNECTIONS REFERENCE
61
A
V
USER INTERFACE
Ground
SC6000
A/B
B/A
GND
VS_INPUTS
Signal
PWO

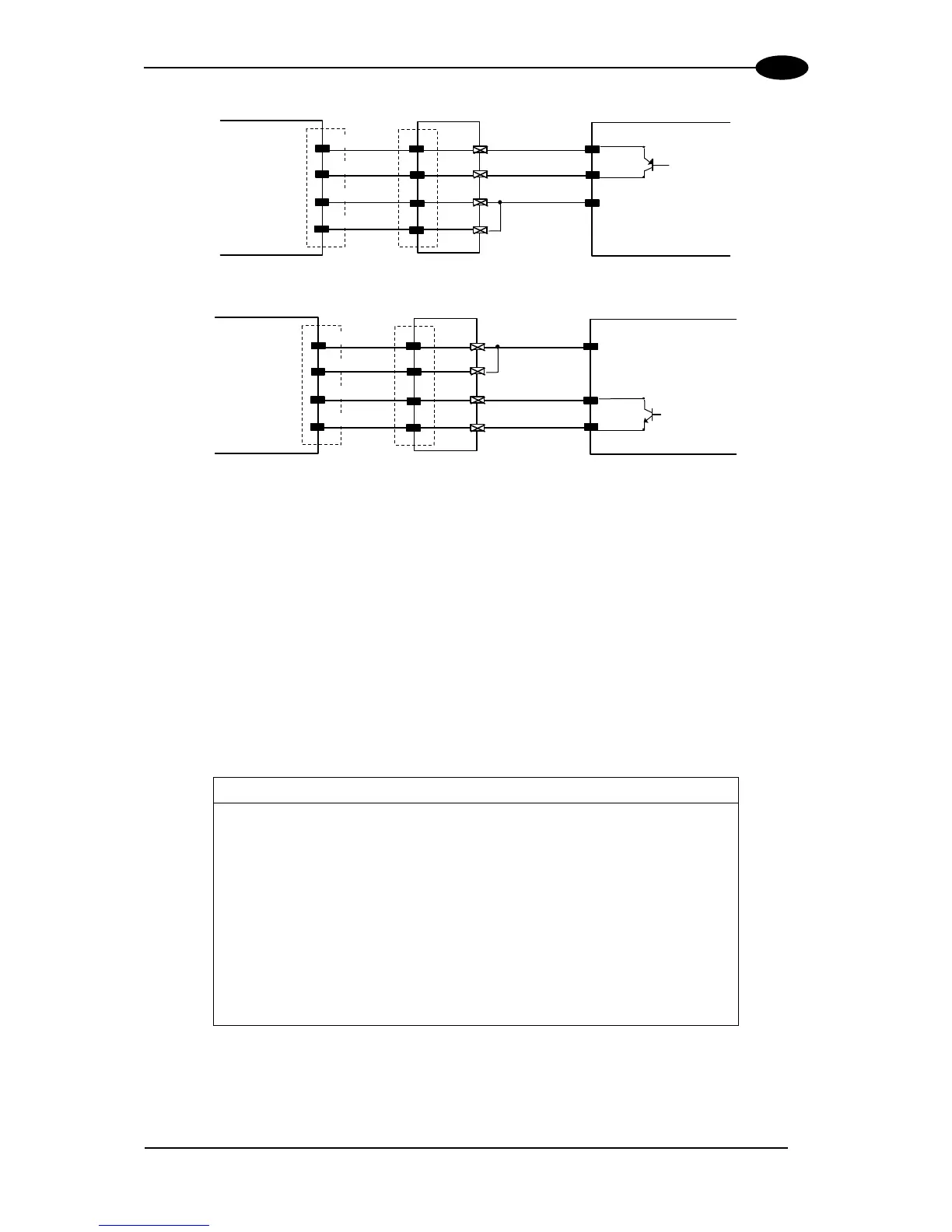

Figure 49 - PNP Command Input Using System Power
V
USER INTERFACE
Ground
SC6000
A/B
B/A
GND
VS_INPUTS
Signal
PWO
Figure 50 - NPN Command Input Using System Power
Isolation between the command logic and the scanner is maintained by powering the inputs
with an external supply voltage (Vext). For convenience, the inputs can be powered using the
VS_INPUTS signal on the SC6000 (pin 9). In this case, however, the device is no longer
electrically isolated. The VS_INPUTS signal on the Extended I/O connector is short-circuit
protected.
The electrical features of these inputs are:
Maximum voltage 30 V
Maximum current 10 mA
Outputs
Six general purpose outputs are available.
Pin
Name
Function
6
OUT 1+
Configurable digital output 1 – positive pin
19
OUT 1-
Configurable digital output 1 – negative pin
7
OUT 2+
Configurable digital output 2 – positive pin
20
OUT 2-
Configurable digital output 2 – negative pin
8
OUT 3+
Configurable digital output 3 – positive pin
21
OUT 3-
Configurable digital output 3 – negative pin
10
OUT 4+
Configurable digital output 4 – positive pin
23
OUT 4-
Configurable digital output 4 – negative pin
11
OUT 5+
Configurable digital output 5 – positive pin
24
OUT 5-
Configurable digital output 5 – negative pin
12
OUT 6+
Configurable digital output 6 – positive pin
25
OUT 6-
Configurable digital output 6 – negative pin
The function of all six outputs can be defined by the user.
Refer to Genius™ Help On-Line for further details.
