Datalogic SC6000 User Manual

SOFTWARE CONFIGURATION
37
3
2. From the Device Menu select Local Device Network Settings and configure your SC6000
as Master (SYNCHRONIZED is the default value), as shown in the figure below:

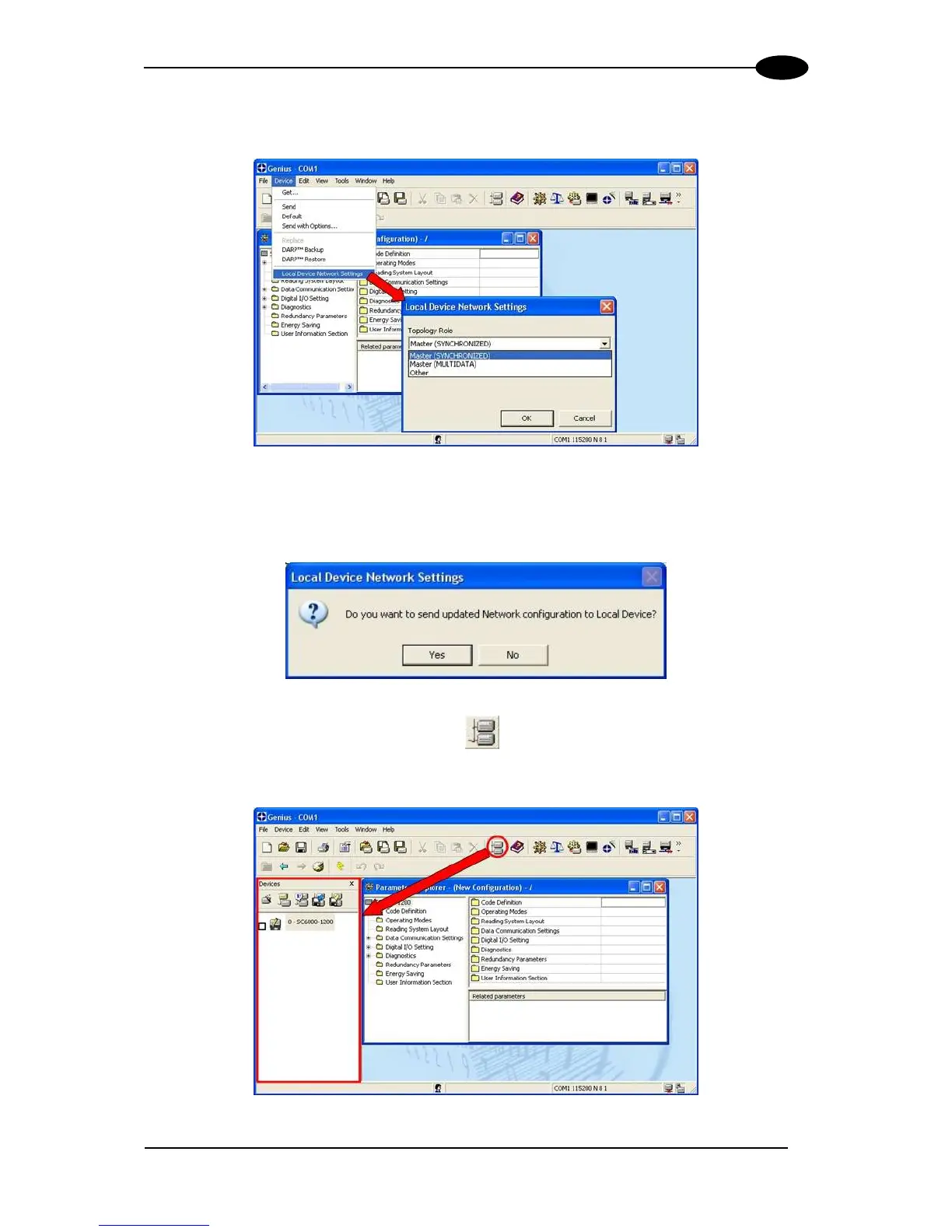

Figure 34 – Local Device Network Settings
The following dialog box appears asking whether to send the updated configuration to the
Local Device or not:
3. Click the “Yes” button, then click on the icon available on the Toolbar to make the
“Devices” area appear next to the Parameter Explorer window. By repeatedly clicking the
icon this area will be displayed or hidden.
Figure 35 – View Device Configuration
