Datamax E-Class Mark II - Maintenance and Adjustments; Cleaning the Printhead; Printhead Replacement

Removal and Replacement
4-5
Bottom
Enclosure
Screws
Printhead
Assembly
Print
Mechanism

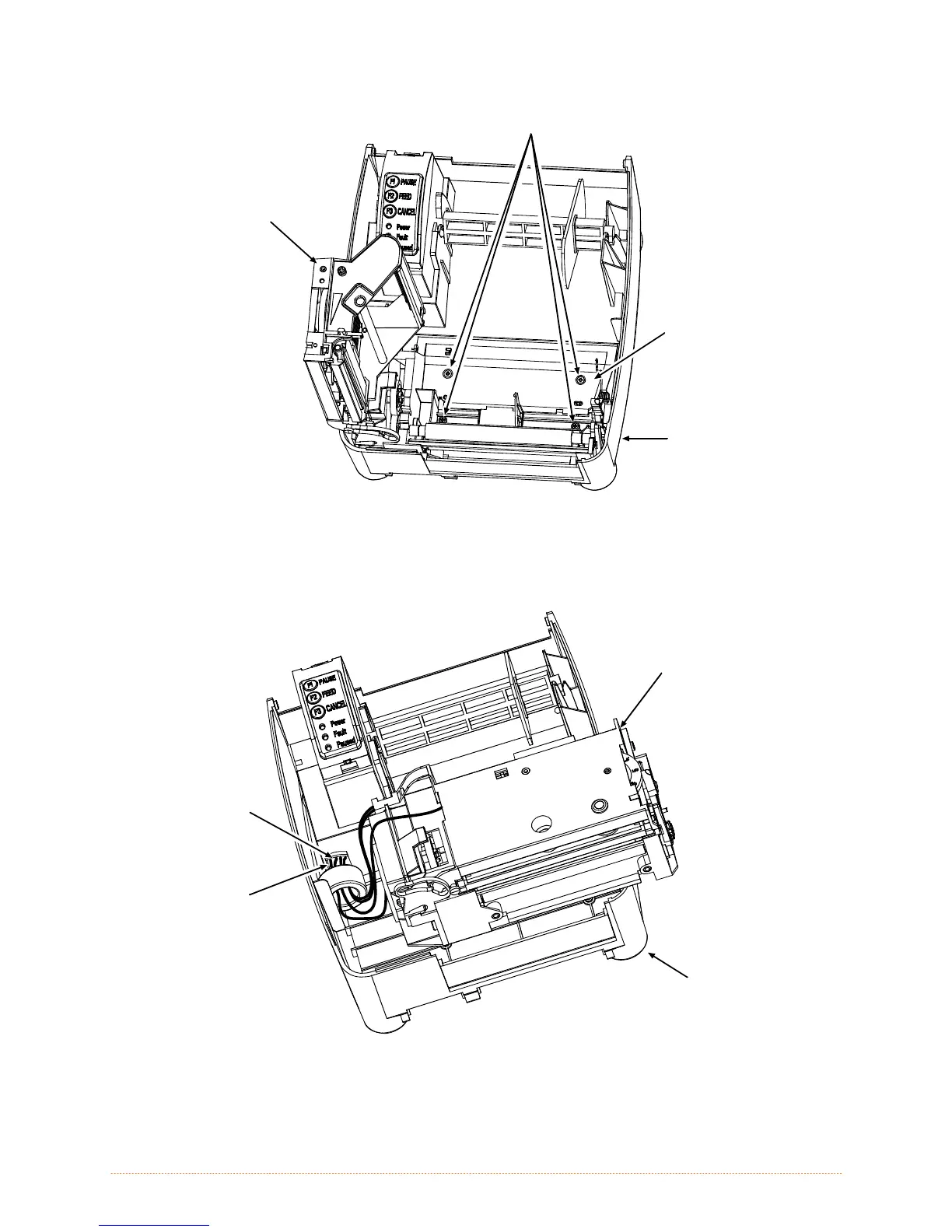

4. Latch the Printhead Assembly then lift the Print Mechanism out of the Bottom Enclosure, taking
care to guide the Cables through the Cutout.
Print
Mechanism
Cutout
Cables
Bottom
Enclosure
