Datamax E-Class Mark II Maintenance Manual

Overview
1-1

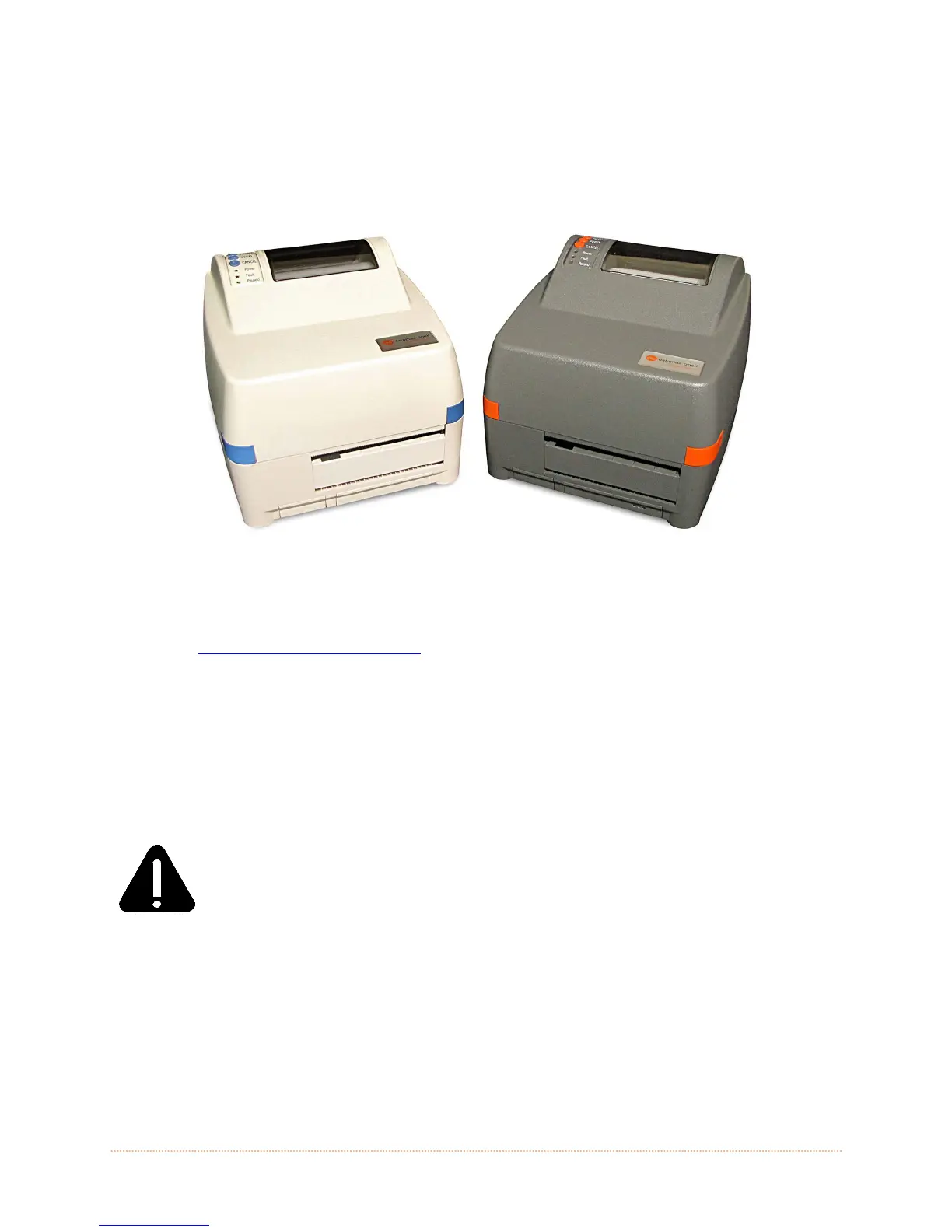

1.0 Introduction
This manual is intended for use by qualified service personnel in the maintenance and repair of
Datamax E-Class model printers. It primarily includes technical information relating to the printer’s
electrical and mechanical components. For related information, refer to the following documents,
available at http://www.datamax-oneil.com
• For general user information, reference the Operator’s Manual (part number 88-2348-01).
• For software documentation, reference the Class Series 2 Programmer’s Manual (part number 88-
2341-01).
Important Information:
The exclamation point inside an equilateral triangle is intended to alert the technician
to the presence of important operating, servicing, or maintenance information. Always,
as with all electrical equipment, follow basic safety precautions to avoid personal injury
and/or printer damage.

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
