Removal and Replacement
4-10

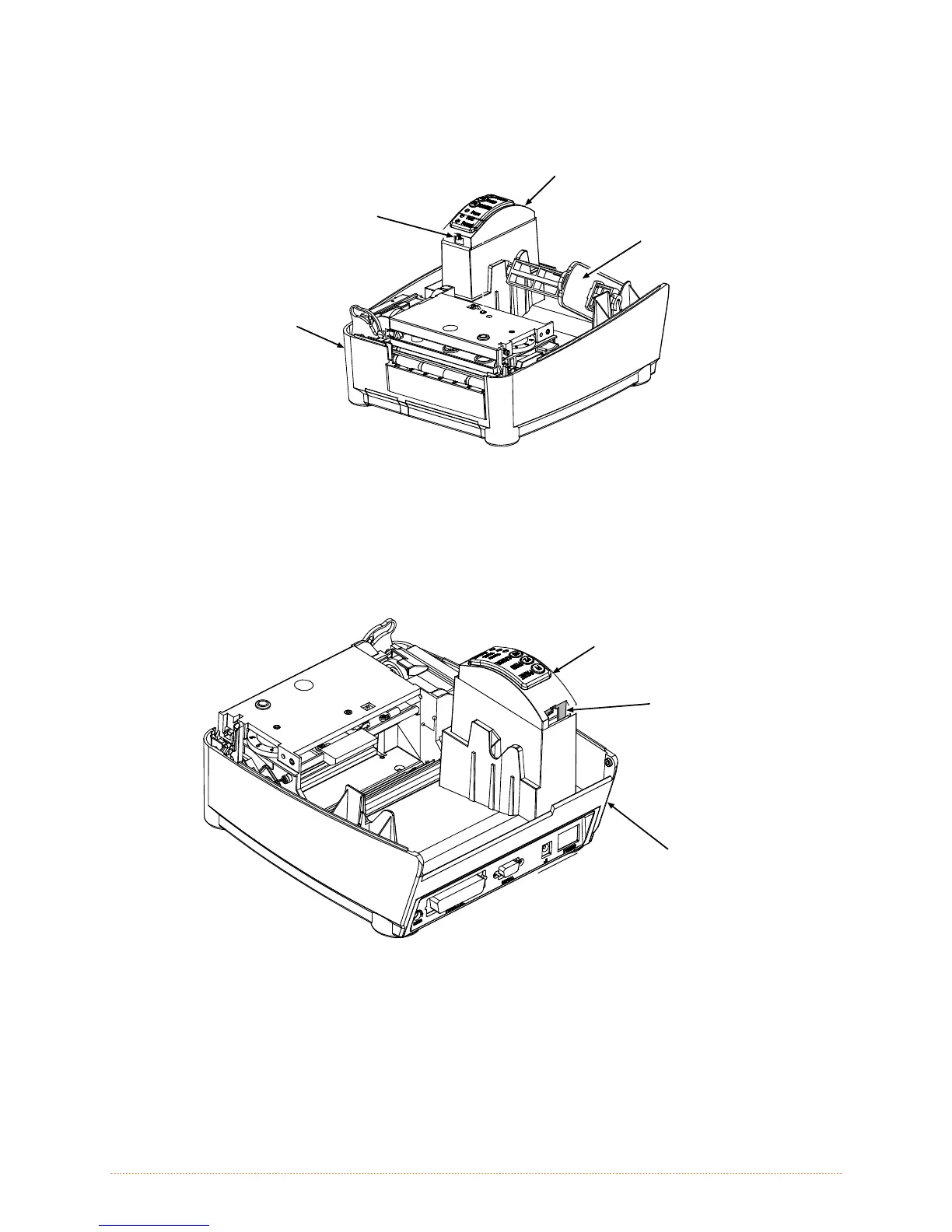

3. Remove the Media Supply Hanger from the Bottom Enclosure.
Media Supply
Hanger
Bottom
Enclosure
Option
Port
Control Panel
Assembly
4. Using a screwdriver, gently push in the Locking Tab then lift the Control Panel Assembly off the
Bottom Enclosure.
Locking Tab
Control Panel
Assembly
Bottom
Enclosure
