Technical Manual
86

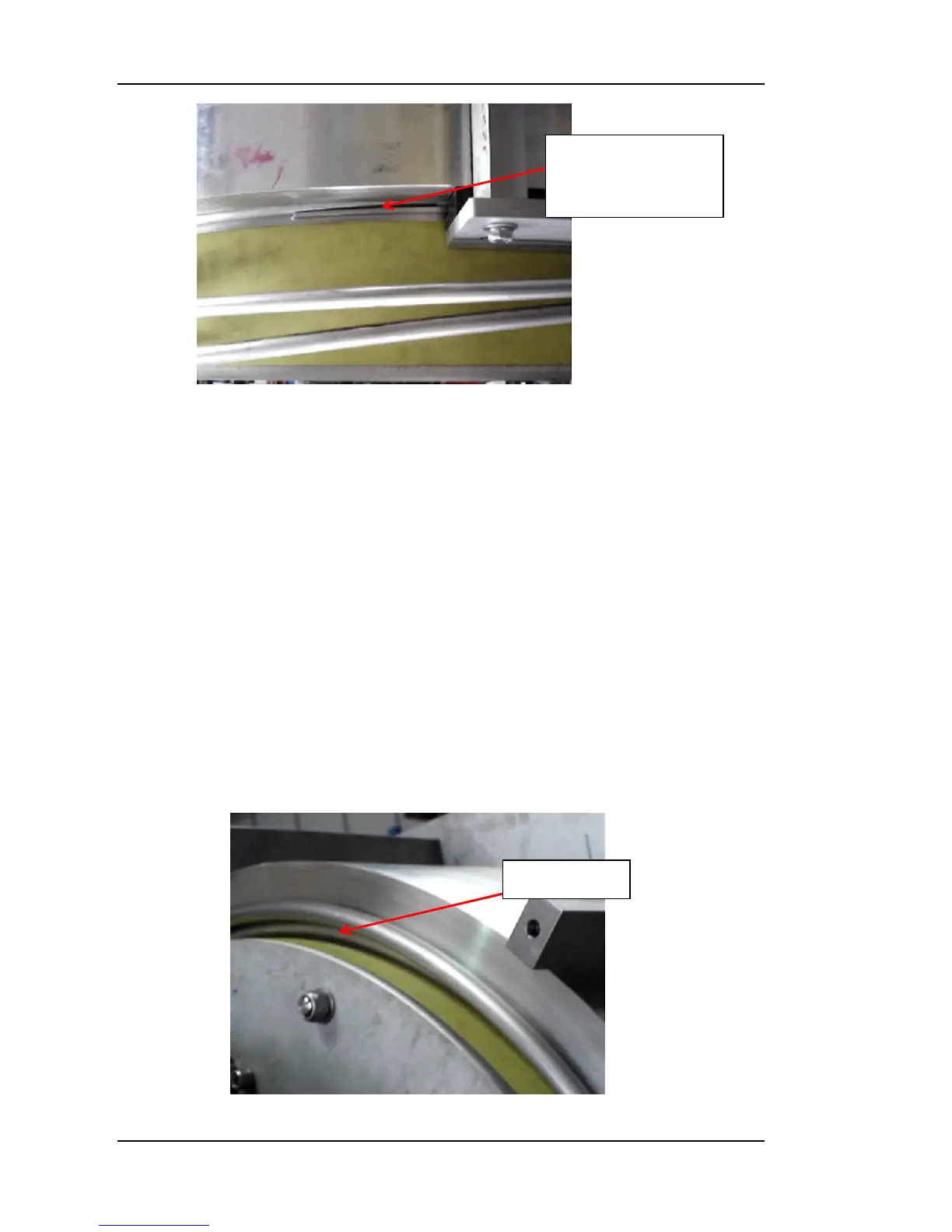

Figure 41: First coil passing behind second loading plate
Figure 42: Slack in the rod
12.If both plates fit okay and the first coil is tight behind then continue to
retract until all the coils are inside the Drum and the Coiled Rod Lower
Coupling is in-line with the cone up sensor and stop.
13.Manually push the straight section of rod into the Straightener and
move the middle roller until it contacts the Rod. Tighten sufficiently to
hold the Rod without causing physical damage. Replace the Front
Straightener Plate.
14.There will be a small amount of slack in the coiled rod. With the end of
the rod now clamped in the Straightener, retract very slowly. Any slack
in the coil will be pulled tight against the Cassette. Do not retract too far
just enough for the rod to touch the cassette. Stop retracting and
remove the two rod loading plates. Replace the Front Friction Retaining
Plate.
