SENTINEL 3 52
4. PPPoE: If you have an ADSL modem, you may need to set up PPPoE in order to
view your DVR from outside your network. You will need your login information. If you
do not have it, please contact your Internet Service provider to provide you with the
login information.
5. HTTP Port: Select the port number (default is port:2000)
1. Authentication: Choose whether or not a user name and password are required
2. Enter your DSL user name in the User Name box.
3. Enter your DSL password in the Password box.
4. Re-enter your password in the Conrm box.
5. Click the “Set Change” button.
6. Click the “Reboot” button.
7. Power off the DVR and power it back on to conrm the changes. The changes will
not take effect until you restart the DVR.

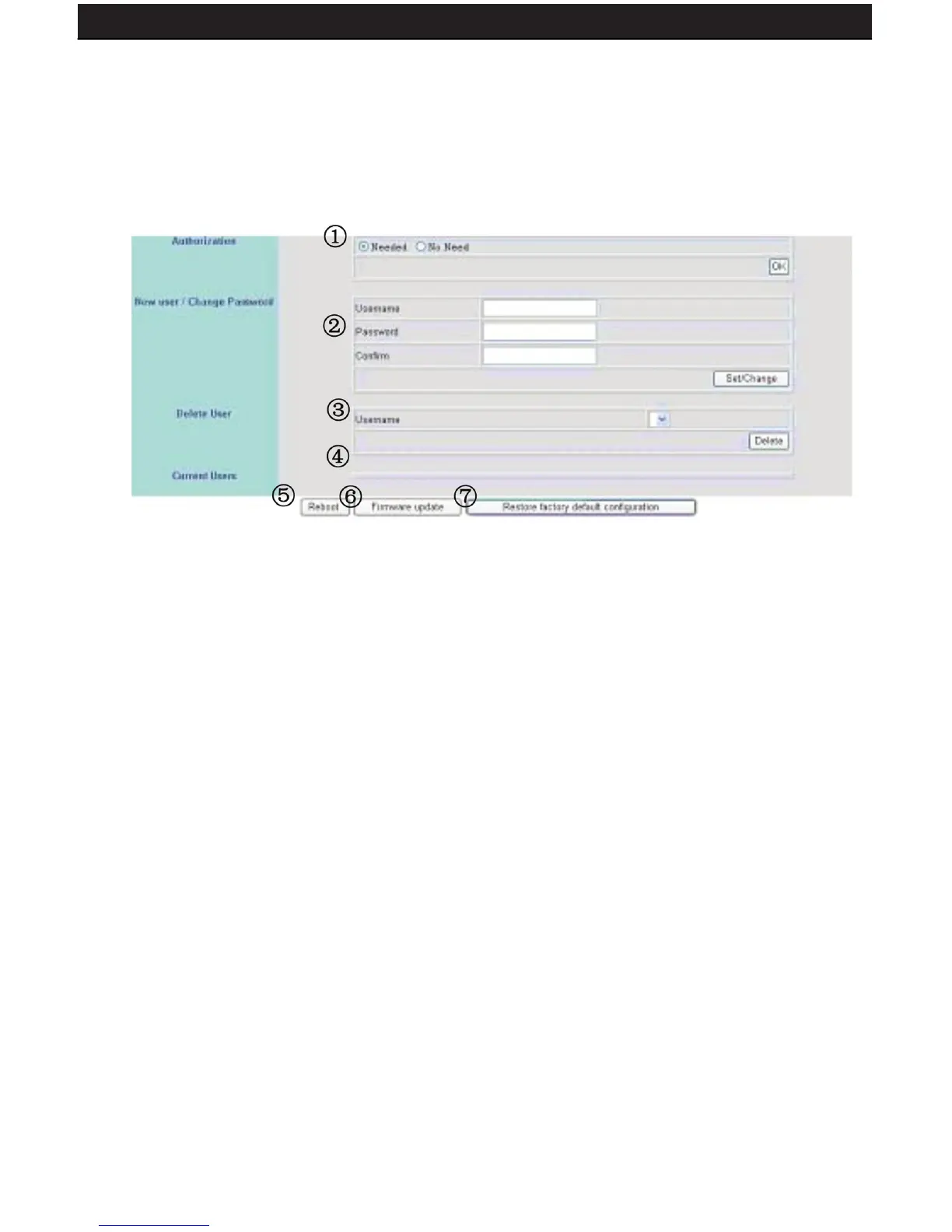

8.2.2 USER SETUP
This section allows you (the administrator) to set up multiple user accounts so other
authorized users can access the DVR. These users will be able to view live display, record,
and capture images. However, they will not be able to change conguration settings. When
you have set up user accounts, be sure to write down the user name and password for each
account so you can provide the users with the appropriate login credentials.
Authorization: Specify whether authentication is needed to access the DVR. If you select
“No Need,” there is a possibility that unauthorized users may access your DVR.
New User/Change Password: Add user or change password (Max. users = 30).
Note: For best results, a maximum of 20 simultaneous users is suggested.
Delete User: Delete user account.
Current Users: Currently registered users.
Reboot: Restart the Network DVR.
Firmware update: Updates the rmware, if a new rmware version becomes available.
Firmware updates may be available at www.defender.com (advanced users only).
Restore factory default conguration: Click “Restore factory default conguration” to return to
factory default settings (Please restart the Network DVR after setup has been completed).
