SENTINEL 3 9

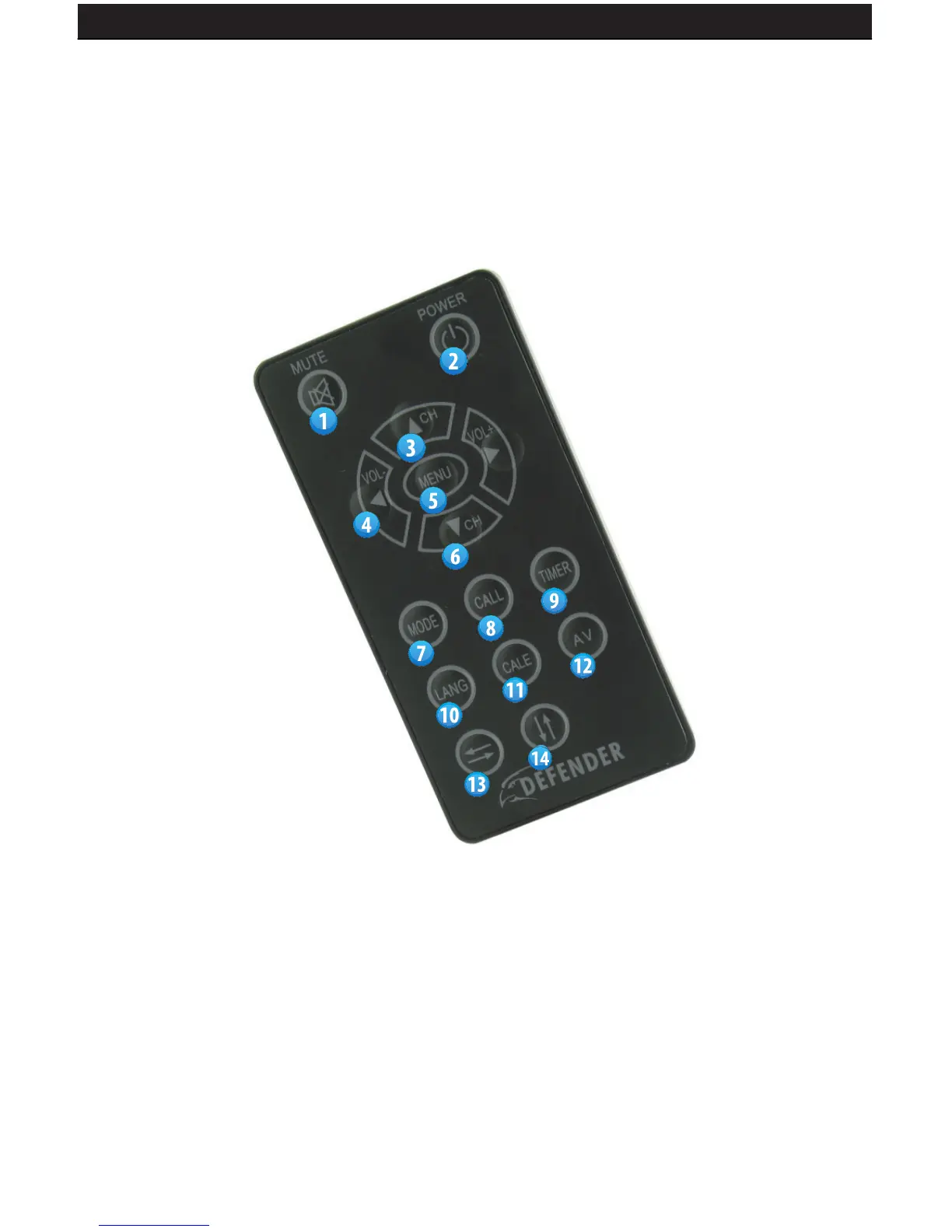

2.5 REMOTE CONTROL
1. Mute
2. Power
3. Channel Up/Up Navigation
4. Volume
5. Menu – Enter the onscreen menu and adjust settings
6. Channel Down/Down Navigation
7. Mode - Standard, Soft, Vivid, Light, Personal
8. Call – Display the input channel you are currently viewing
9. Timer – Adjust timer settings
10. Language – Select the desired language
11. Calendar – Enter the onscreen calendar
12. AV – Switch between video inputs
13. Flip Image Horizontally
14. Flip Image Vertically
12. AV2 In Port Connection to video
input source.
13. AV1 In Port Connection to video
input source.
14. 3.5mm Headphone Jack
Connects to stereo headphones.
15. Power Input DC power
input (12V)
16. Speakers
17. Mounting Rails
18. Mounting Hole
