13.2 INSTALLATION

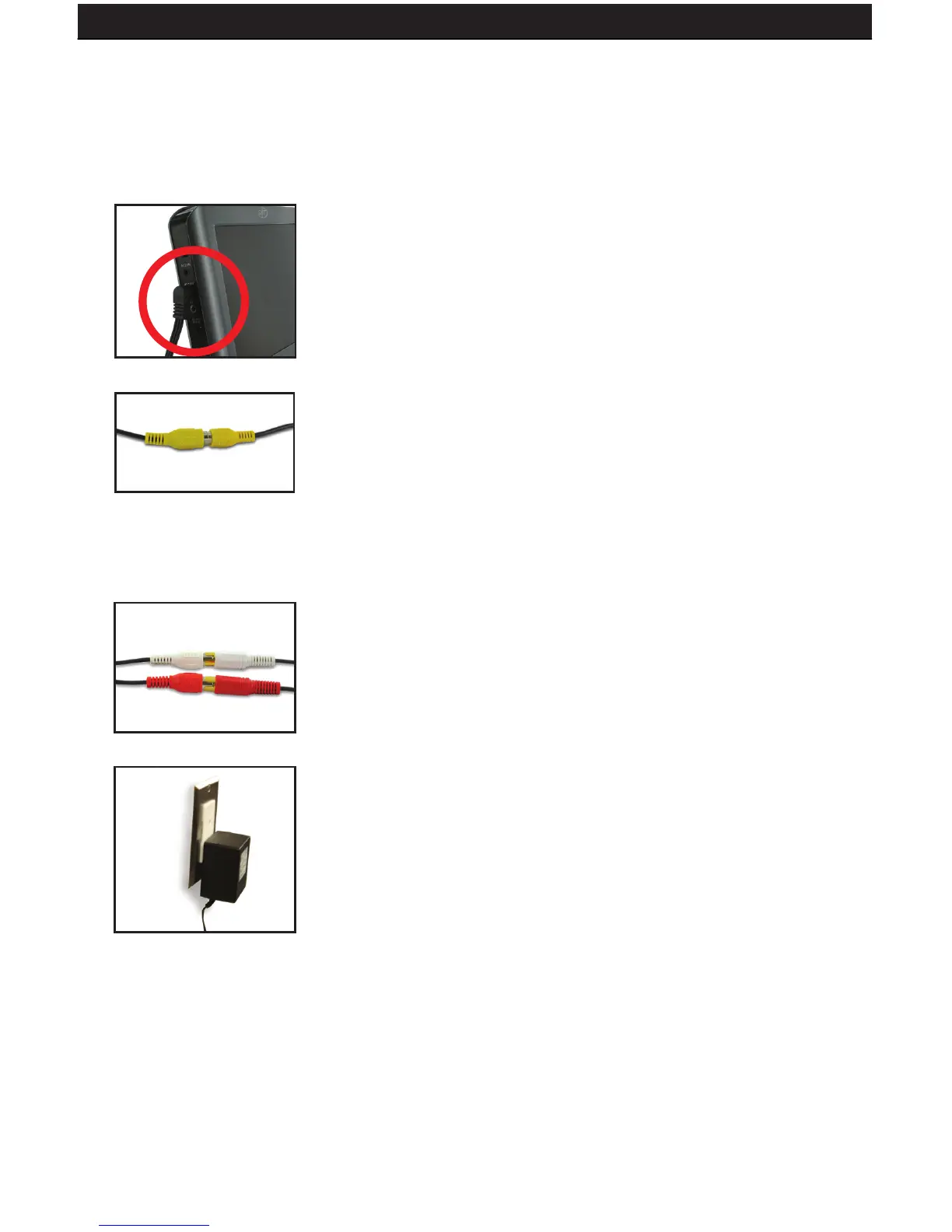

13.2.1 OPTION 1: CONNECTING TO SECURITY CAMERAS
1. Plug the “3.5mm to RCA (female) wire” into
theAV1/IN port on the monitor.
2. Plug the camera’s RCA output plug into
the video input (yellow) end of the “3.5mm
to RCA (female) wire.”
3. Repeat steps 1 and 2 for connecting a second camera to the
AV2/IN port on the monitor.
4. If the camera supports audio, ensure
that the RCA audio cable of the camera
(red or white) is connected to one of the
audio inputs (red or white) on the “3.5mm
to RCA (female) wire.”
5. Ensure that the cameras are plugged in.
