SENTINEL 3 64

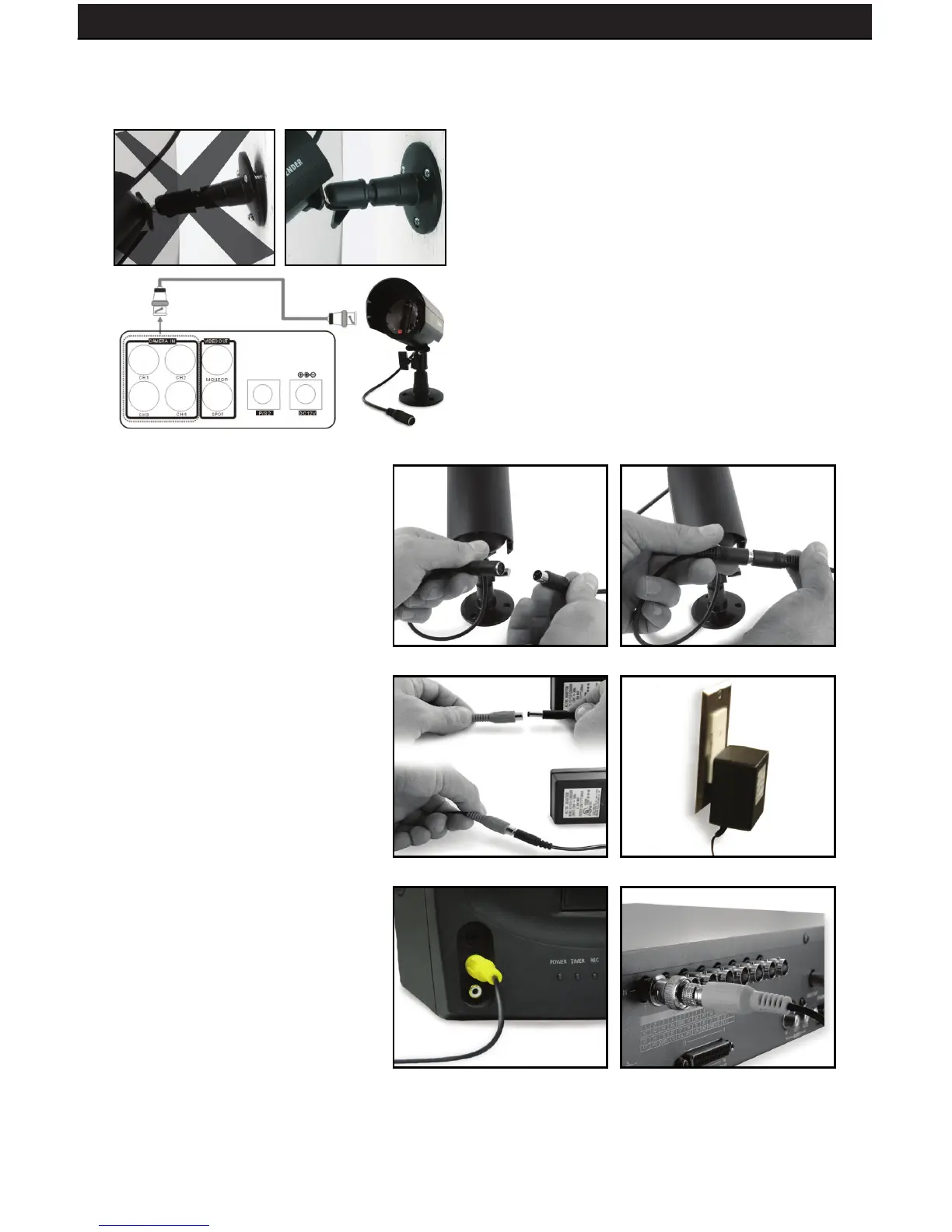

14.2.1 MOUNTING
1. Screw the mounting bracket into the
camera’s mounting hole, turning it
clockwise.
2. Mount the camera in the desired
location no more than 60 feet from
the TV/Monitor/VCR/DVR unless
you have purchased additional
wiring. You may wall mount or desk
mount these cameras.
3. Adjust cameras to the desired
viewing angles.
1. Plug the 4 pin DIN female
connection on the camera
into the 4 PIN DIN male
connection on the 60ft video/
power wire.
2. Match the two arrows on top
of both connecting cables.
3. Plug the camera’s power
supply into the power jack
located on the 60ft
video/power wire.
4. Plug the camera’s power
adapter into an AC outlet.
5. Connect the 60ft video/power
wire’s male RCA plug to the
VIDEO IN port of your TV/
monitor/VCR/DVR.
6. If your VIDEO IN port is a
BNC connection (common
with DVR units), you will
need to attach the BNC to
RCA adapter before
connecting the camera.
1 2
3 4
5 6
