SENTINEL 3 20

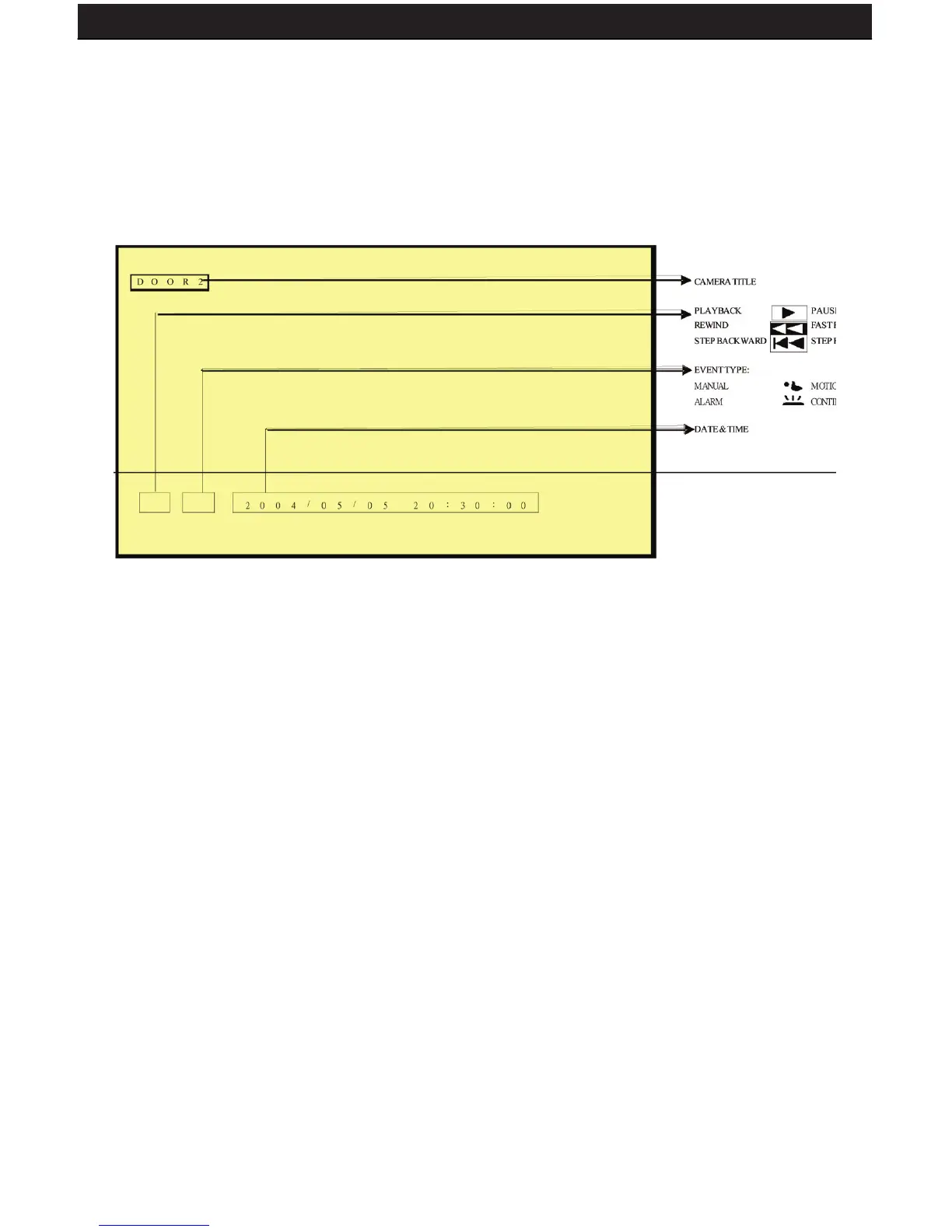

5.3 PLAYBACK MODE
1. When pressing the PLAY button and when the playback password is set to “ON”,
the system will request to enter a password. When the correct password has been
entered, all recording activities will stop and playback mode will begin.
2. Press the “PLAY” button to play back starting from the previous playback end time
(continues from where you left off).
3. Press the “DISP” button to switch on/off the channel, date, and time
message display.
4. Press the “INFO” button to switch on/off the system information display.
5. Press the “CH” button to play back a camera channel in full screen (CH1 – CH8).
6. Press the “SPLIT” button to switch to “Full Screen/ Quad Screen/ 9-Split Screen”.
7. The SEQ button does not function during playback.
8. Press the “PAUSE” button under normal playback to pause.
9. During pause status, press the “LEFT” button to step rewind playback, and the
“RIGHT” button to step forward playback.
10. During normal playback, press the “LEFT” button to adjust the rewind playback
speed (x1/ x2/ x4/ x8/ x16/ x32/ x64 ), and the “RIGHT” button to adjust the forward
playback speed (x1/ x2/ x4/ x8/ x16/ x32/ x64). Press the “PLAY” button to return to
normal speed and the “PAUSE” button to pause.
11. Connect the audio output to your TV/monitor/speaker input (using an RCA wire) to
enable audio playback.
12. Press the “STOP” button to stop playback and return to live monitoring mode or
schedule record mode.
