01/10/2021 ASSEMBLY INSTRUCTIONS MLD Control EC-6 with CCB III Page 20
DEGER 3000NT and 3000HD
The endclamp and bolts are adapted to the module
height. These parts are delivered separately and
are not included in the accessory pack.

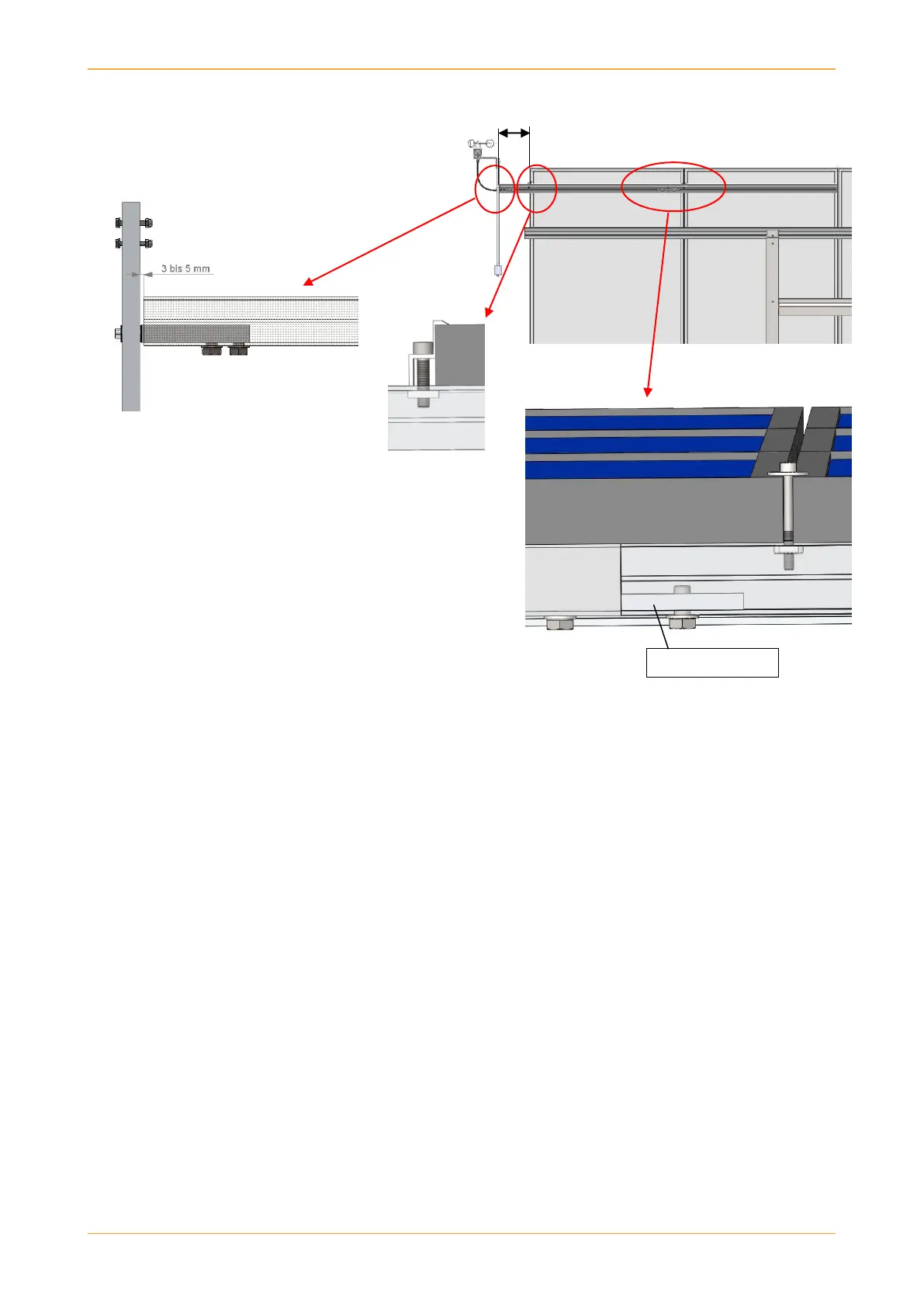

For this purpose the aluminum profile F-SET-X of
the pendulum kit has to be fastened to the top
module row with one clamp plate, bolt M6 and
sliding nut M6 as well as one endclamp, bolt M8
and sliding nut M8.
If necessary, extend the F-Set-X by using the
profile connector.
Torque M6: 8 Nm
Torque M8: 20 Nm
Torque M10: 38 Nm
To Next Page
