01/10/2021 ASSEMBLY INSTRUCTIONS MLD Control EC-6 with CCB III Page 21
All other DEGER systems

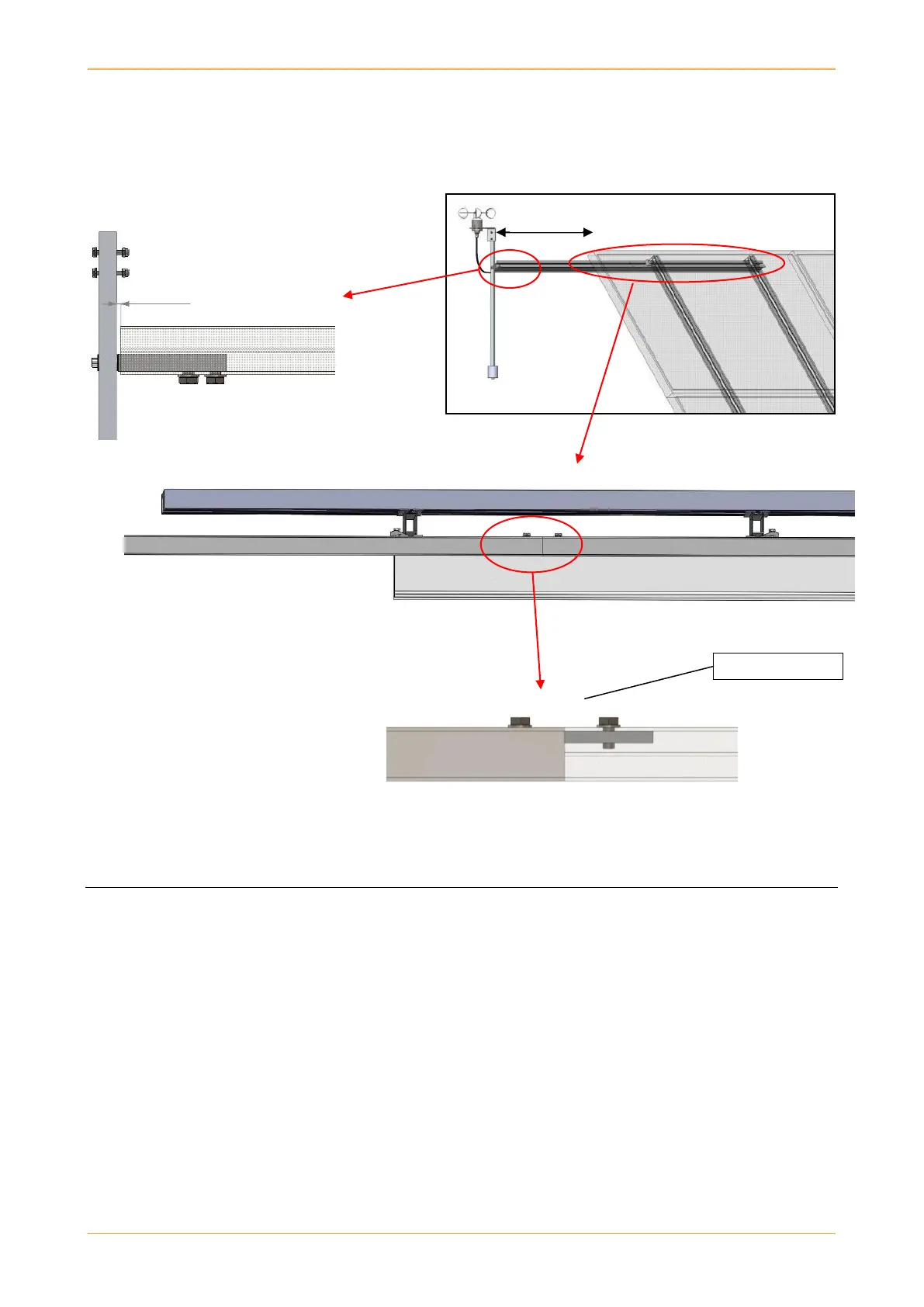

For this purpose the aluminum profile F-SET-X of the pendulum kit is fastened to the two outer aluminum
profiles of the DEGER system each with one clamping piece MTH M8, bolt M8x30 and sliding nut M8.
If necessary, extend the F-Set-X
by using the profile connector.
Torque M8: 18 Nm
Torque M10: 38 Nm
Design may differ due to various module sizes.
2. After the assembly of the pendulum kit has been completed, the mounting angle for the anemometer of
the wind monitor can be fastened using the loosely fastened bolts M4x30 on the nodal bar, washers M4 and
self-locking hexagon nuts M4.
Torque: 6 Nm.
