3.1.5 Mounting instructions
The unit can be mounted in two different ways:
1. Directly mounted on a DIN rail.
2. Fastened with screws to the rear side of the cabinet. Six screw holes are available for this mounting
method.
DEIF recommends using the screw hole fastening.
Warning in use of chemicals!
Do NOT use chemicals or oils (cutting oil, lubricating oil/grease) on or near by the surfaces of the controller
housing or display panel. These may cause serious damage to the plastic parts and void the warranty.
3.1.6 Tightening torques
Unit panel door mounting: 0.3 Nm, 2.7 lb-in (see diagram in "Unit dimensions")
Plug connections (terminals): 0.5 Nm, 4.4 lb-in

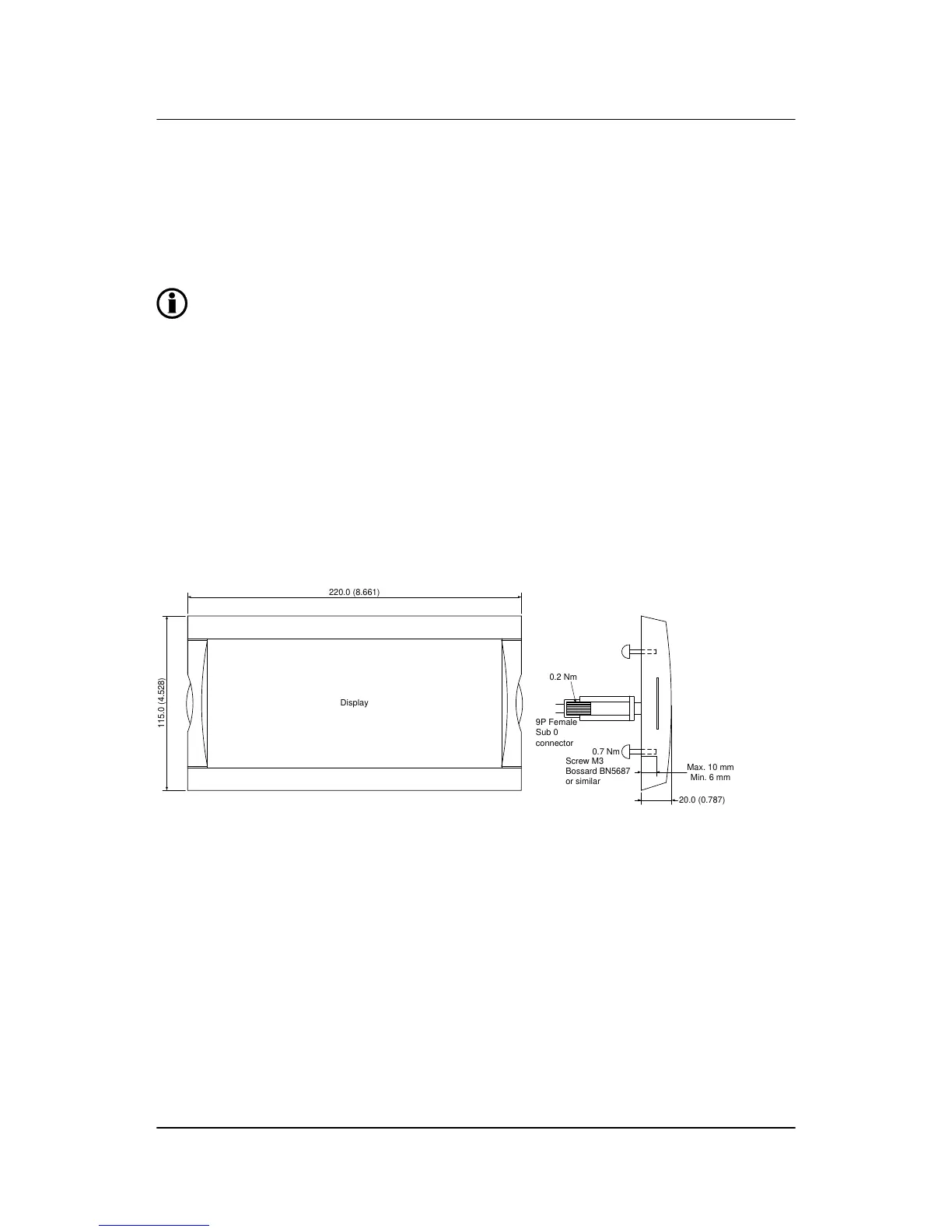

Display, DU-2, AOP-1 and AOP-2 (see diagram below)
Panel door mounting: 0.7 Nm, 6.2 lb-in
Sub-D screw: 0.2 Nm, 1.8 lb-in
220.0 (8.661)
115.0 (4.528)
Display
20.0 (0.787)
0.7 Nm
Screw M3
Bossard BN5687
or similar
0.2 Nm
9P Female
Sub 0
connector
Max. 10 mm
Min. 6 mm
AGC-3 installation instructions 4189340728
UK
Mounting
DEIF A/S Page 14 of 65
