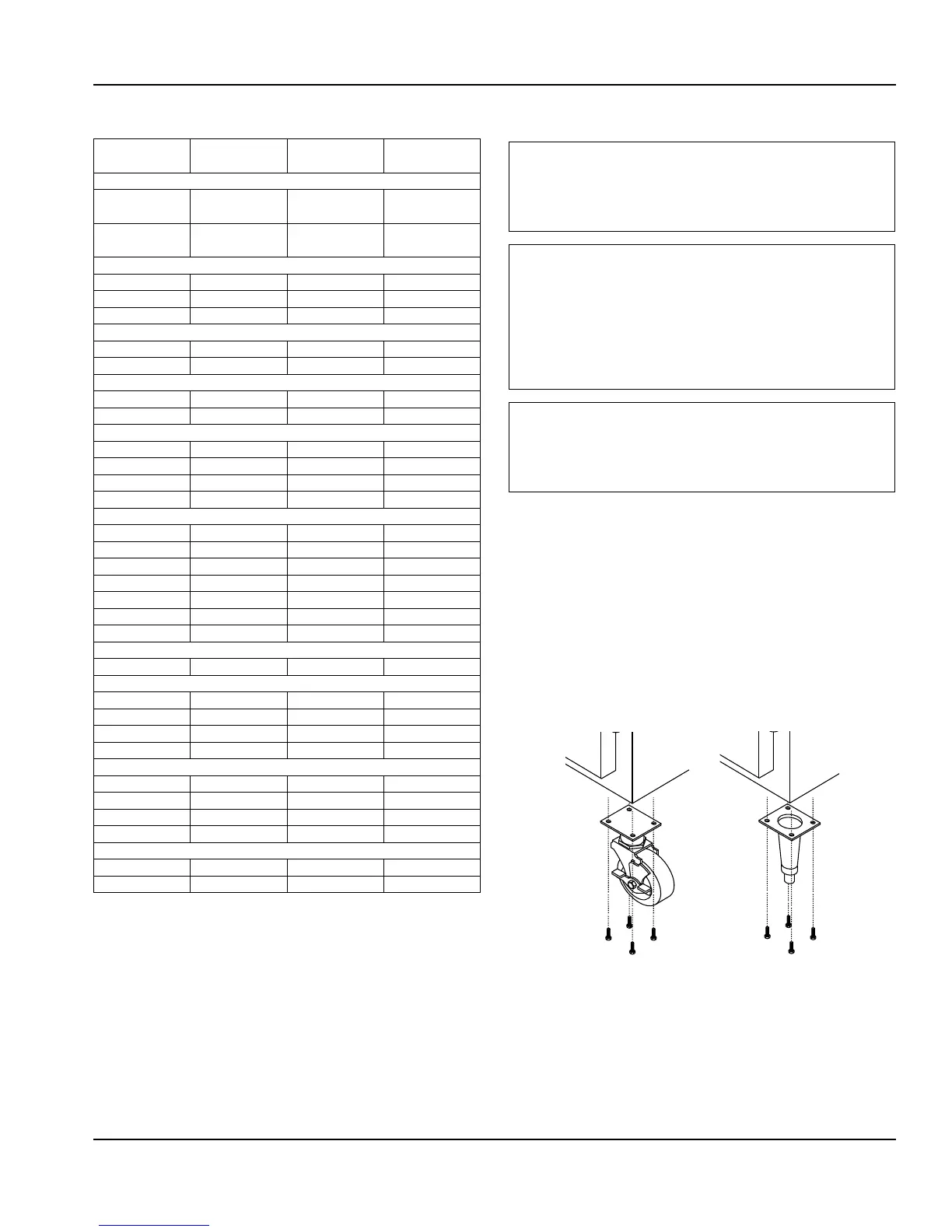

Delfield Specification Line GAF1P-S User Manual

Part Number GA_SM 08/18 11
Section 2 Installation
Refrigeration
Model Heat of
Rejection (BTU)
BTU/Hour
Capacity
R290
Charge
Reach-In Dual Temperature
GADBR1P-SH
GADTR1P-SH
Ref. 232
Frzr. 401
Ref. 1431
Frzr. 1094
Ref. 78g
Frzr. 62g
GADFL2P-S
GADRL2P-S
Ref. 420
Frzr. 790
Ref. 1920
Frzr. 2035
Ref. 113g
Frzr. 93g
Reach-In Freezer
GAF1P-S(H) 790 2035 93g
GAF2P-S(H) 1380 2485 109g
GAF3P-S(H) 1800 4070 (2X)110g
Pass-Thru Freezer
GAFPT1P-S(H) 930 2035 93g
GAFPT2P-S(H) 1630 4070 (2X)110g
Roll-In Freezer
GAFRI1P-S 1401 2261 109g
GAFRI2P-S 2458 4523 (2X)110g
Narrow Reach-In Refrigerator
GAR1NP-G(H) 540 1860 113g
GAR1NP-S(H) 390 1860 113g
GAR2NP-G(H) 890 2470 113g
GAR2NP-S(H) 590 2470 113g
Reach-In Refrigerator
GAR1P-G(H) 570 1920 113g
GAR1P-S(H) 420 1920 113g
GAR2P-G(H) 930 2540 113g
GAR2P-GL 1606 3370 113g
GAR2P-S(H) 620 2540 113g
GAR3P-G(H) 1400 3865 118g
GAR3P-S(H) 940 3865 118g
Reach-In Fishfile
GARFF1P-D 570 1920 113g
Pass-Thru Refrigerator
GARPT1P-G(H) 690 1860 113g
GARPT1P-S(H) 460 1860 113g
GARPT2P-G(H) 1260 3760 113g
GARPT2P-S(H) 800 3760 113g
Roll-In Refrigerator
GARRI1P-G 800 2470 113g
GARRI1P-S 680 2470 113g
GARRI2P-G 1460 3760 118g
GARRI2P-S 1230 3760 118g
Roll-Thru Refrigerator
GARRT1P-S 830 2470 113g
GARRT2P-S 1530 3760 118g
Leg & Caster Installation
n
Warning
The unit must be installed in a stable condition with
the front wheels locked. Locking the front casters after
installation is the owner’s and operator’s responsibility.
n
Warning
Use a jack to lift the refrigeration unit off the ground
just far enough to remove the leg/caster. Place blocking
underneath the unit. Do not work underneath a raised
unit without proper blocking. Do not lift the unit more
than necessary to remove the leg/caster. Lifting the unit
too far can make the unit unstable.
,
Caution
All single-section units require that the swivel casters be
mounted on the front and rigid casters be mounted on
the rear.
To install the legs or casters:
1. Remove unit from skid.
NOTE: The bolts used to hold the unit to the skid should
be re-used as the fourth hex head bolt for each caster or
leg plate installation. The bolt should not measure over
2” (5cm) in length.
2. Raise unit to access leg/caster mounting holes on
bottom of unit.
3. Attach the legs or casters to bottom of cabinet using hex
head bolts.
