Part Number GA_SM 08/18 19
Section 2 Installation

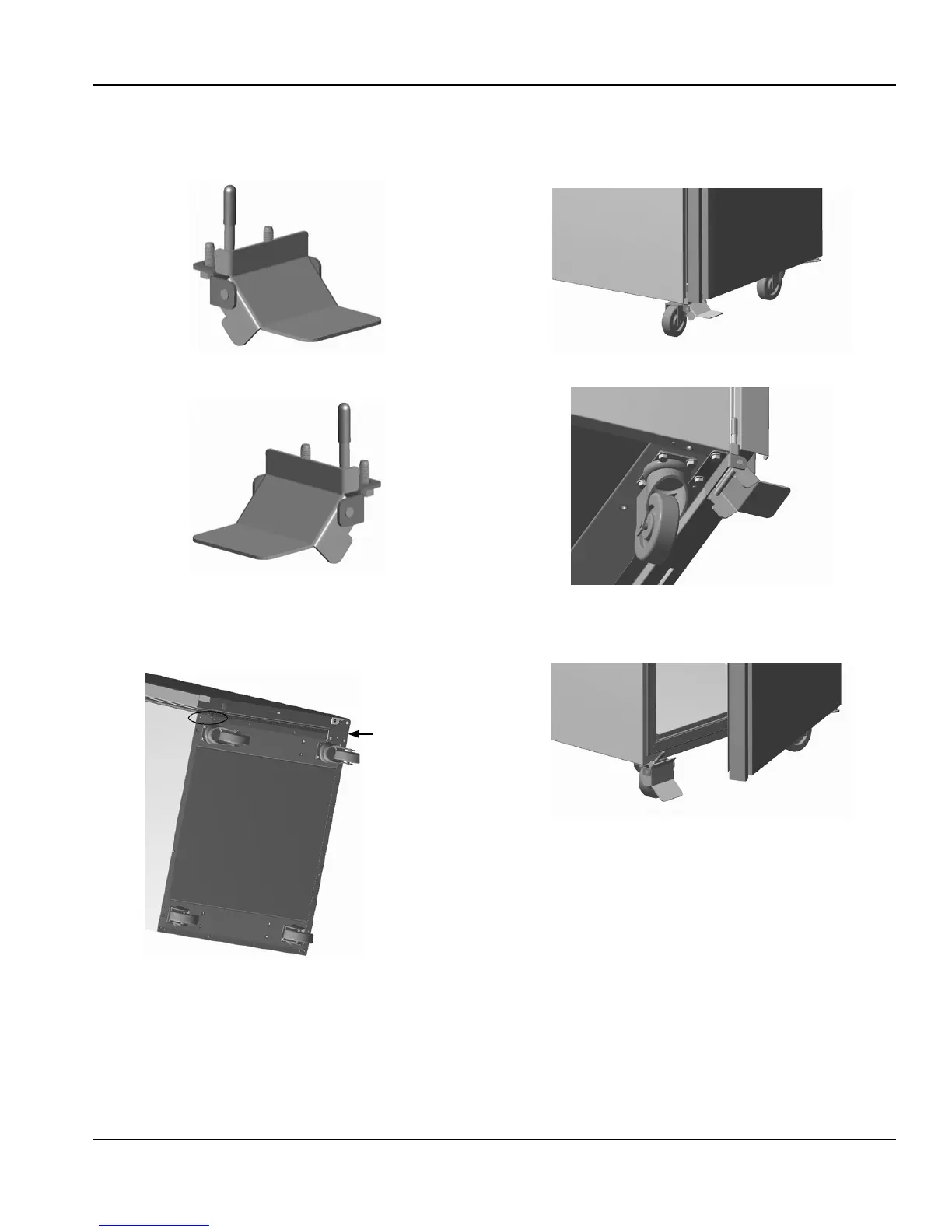

Optional Foot Pedal Installation Instructions
• If the optional foot pedal is ordered for a right hinged
door, ensure part # 000-D10-0031 is received.
• If the optional foot pedal is ordered for a left hinged
door, ensure part # 000-D10-0030 is received.
1. Locate foot pedal placement. Placement is on the
bottom of the cabinet, opposite of the bottom flat door
hinge bracket.
Bottom flat
door hinge
bracket
Front of unit
2. Mount foot pedal door assist with (2) 5/16-18 bolts that
are provided, use ½” socket or wrench. Foot pedal plate
should be facing forward and parallel to the floor when
door is closed.
Front View
Bottom Side View
3. Step down on top of foot pedal plate and door will swing
open.
Foot Pedal When Door Is Open
