Part Number GA_SM 08/18 49

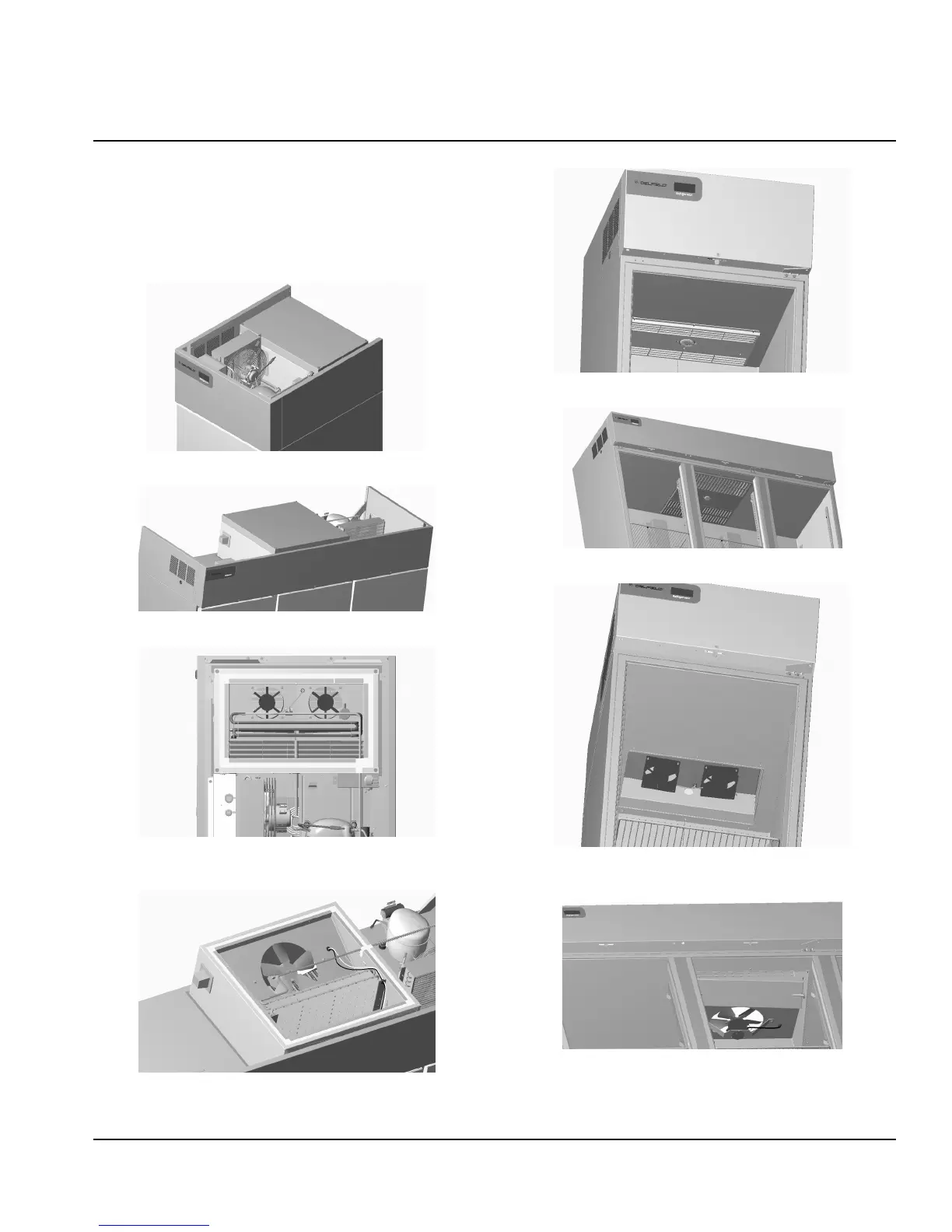

Evaporator Fan Access
• Evaporator fan wiring connections are accessed from
the top through the evaporator box lid.
• Access the evaporator fans inside the cabinet through
the air baffle in the interior top.
Evaporator box lid
Evaporator box lid
View with box lid removed
for access to fan wiring connections
View with box lid removed
for access to fan wiring connections
Interior view of air baffle
Interior view of air baffle
View with air baffle removed
for access to evaporator fans
View with air baffle removed
for access to evaporator fans
Section 7
Component Check Procedures
