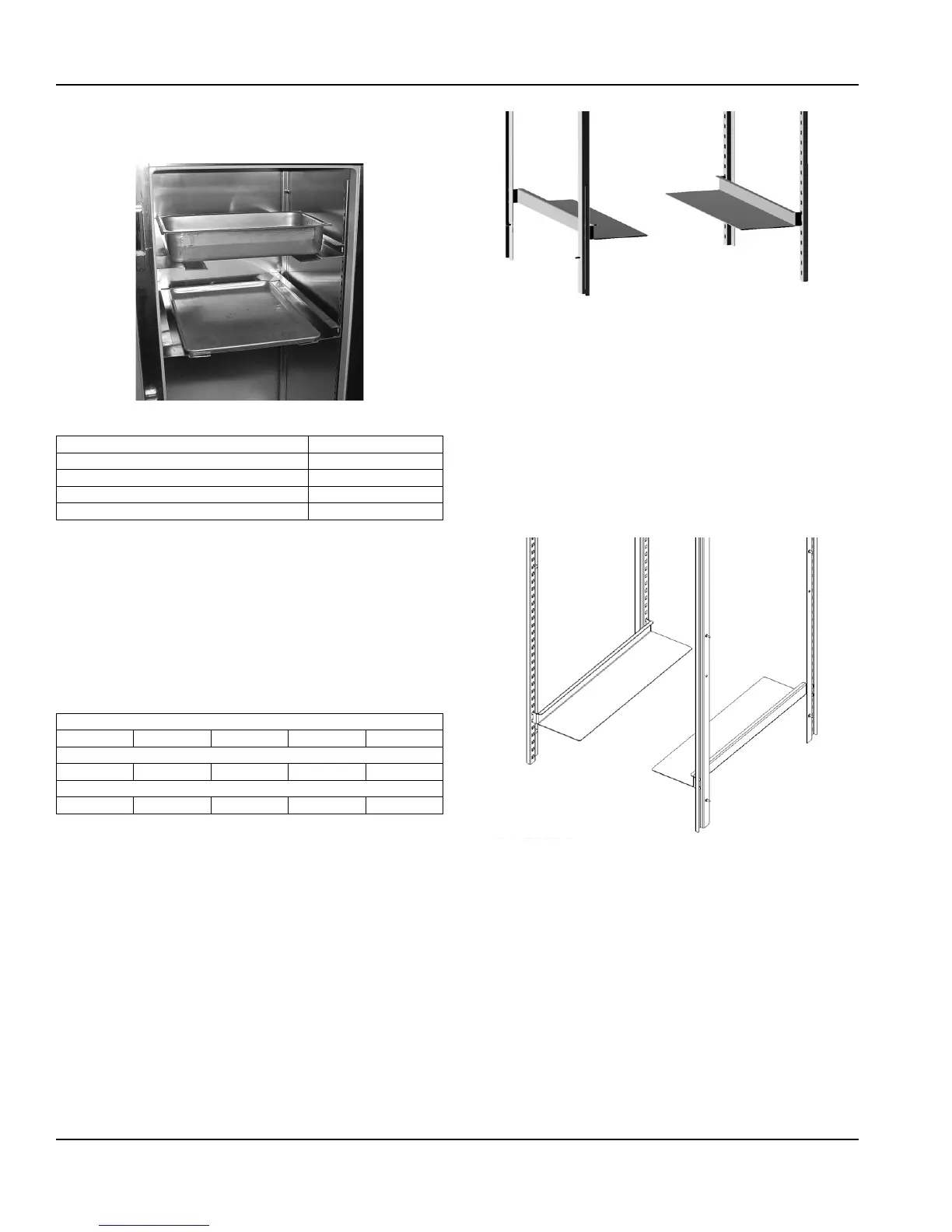

Installation Section 2
T-2 Tray Slide Installation
Universal Bottom Support for 12” x 20” and 18” x 26” pans
Installed T-2 tray slide with both size pans
System Name T-2
Slide Style Tray
Support Style Bottom
Compatible with 12” x 20” Pans Yes
Compatible with 18” x 26” Pans Yes
• The T-2 (Universal) tray slide system is designed to
support both 12” x 20” and 18” x 26” pans by the
bottom.
• The tray slide is an L shaped piece of formed stainless
steel.
• Each set of tray slides is mounted at the same height
across a door section.
• For each pan, one set of two (2) tray slides is used.
Centerline Spacing
2.0” 3.0” 4.0” 5.0” 6.0”
Maximum Tray Slides for a Full Section
23 15 12 9 8
Maximum Tray Slides for a Half Section (Top or Bottom)
10 7 5 4 4
T-2 Tray Slide System
T-2 Installation Instructions
1. For each pan, two (2) tray slides will be used. Each tray
slide must have another tray slide at the same height,
on the opposite side of the door section. Mount the tray
slides onto the pilasters by sliding the tabs down into
the pilaster cutouts. Make sure that all tabs are engaged
securely to each pilaster.
NOTE: A dead-blow hammer is recommended to seat the tab
into the cutouts.
Pilaster
Slider
2. Verify that all tray slides are lined up evenly.
NOTE: An easy check to verify correct installation is to slide
a pan onto each slide. If the pan is held securely, and is level
inside the door section, the installation has been successful.
