54 Part Number GA_SM 08/18
Component Check Procedures Section 7
LED Light Replacement
Important Notes
• Tools Required: T6 Torx Bit & Phillips Head screwdriver
• Keep track of the light cover, all screws and wires.
They will be reused.
Removal

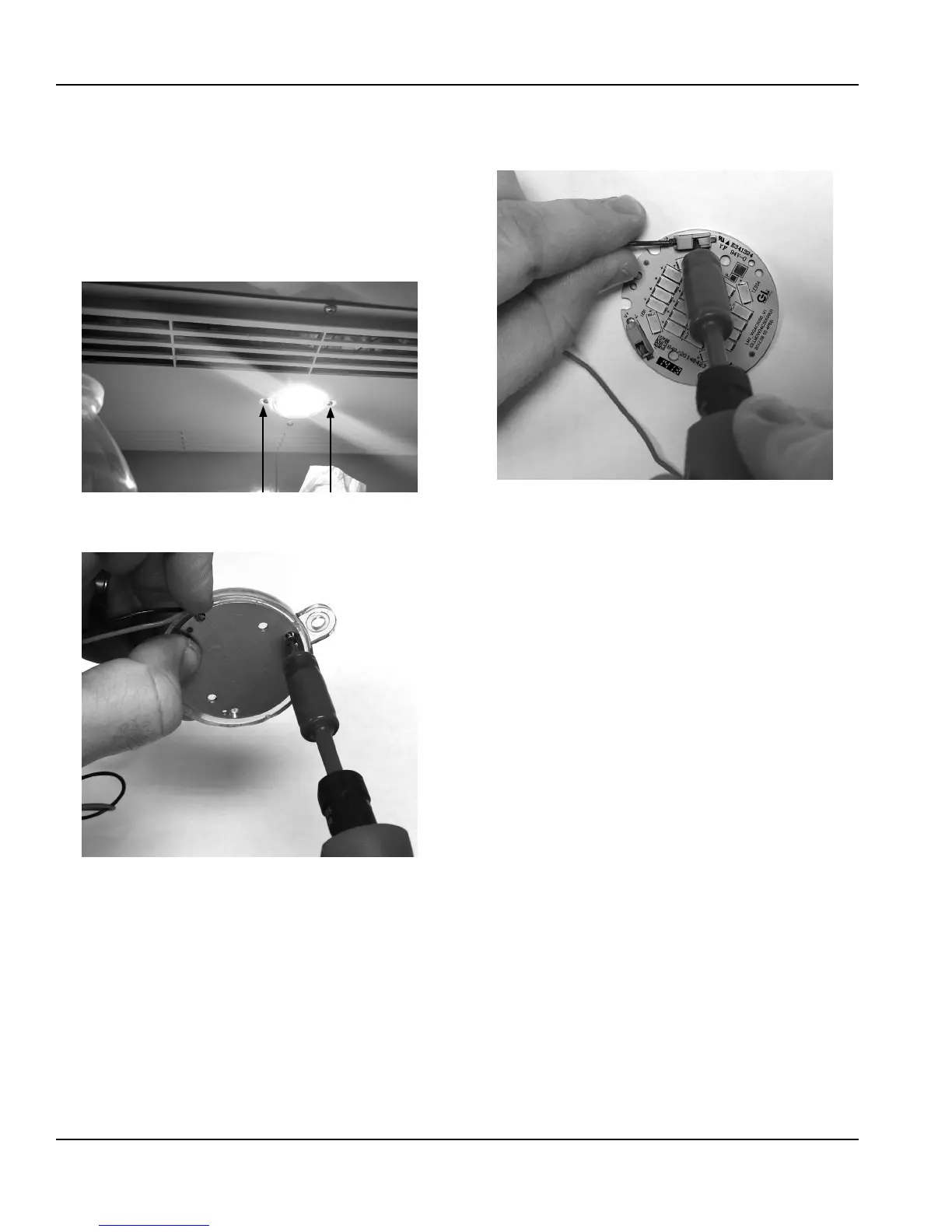

1. Unscrew the light fixture from the unit.
Two (2) Screws Secure the Light in the Unit
2. Unscrew the light from the cover with the T6 torx bit.
Four (4) Screws Secure the Light Cover On
3. Press the center of a raised tab to release the wire.
Remove the wire. Repeat on second tab for second
wire.
Pressing the Center of the Raised Tab Releases the Wire
4. Discard the old light.
Reinstall
5. Press the center of a raised tab and insert a wire.
Repeat on second tab with second wire. The wires are
interchangeable.
6. Screw the cover back on the light.
7. Screw the light fixture back into the unit.
