Part Number GA_SM 08/18 53
Section 7 Component Check Procedures

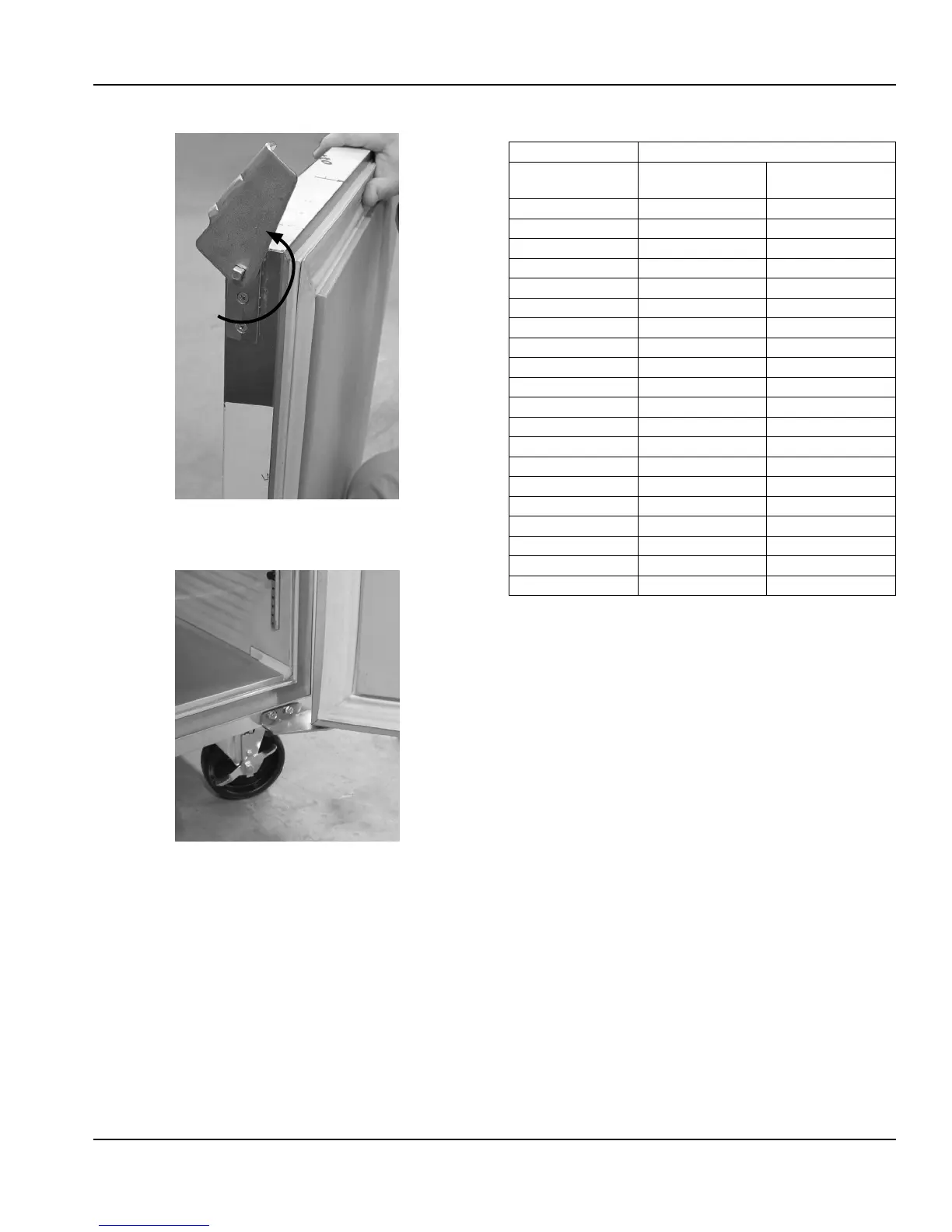

6. Rotate the door hinge 160°-180°.
7. Hold the hinge, twist the door and slide the top pin into
the top hinge.
8. Screw the bottom hinge to the unit.
9. Check the door alignment. Check that it shuts and
seals. Adjust the bottom hinge if necessary.
Temperature Probe Resistance
Part 2195702 5KΩ NTC Temperature Probe
Temperature
in °C
Temperature
in °F
Resistance (Ω)
Nominal
-20 -4 48,560
-19 -2.2 45,835
-18 -0.4 43,275
-17 1.4 40,870
-16 3.2 38,610
-15 5 36,490
-2 28.4 18,100
-1 30.2 17,190
**0 32 16,330
1 33.8 15,520
2 35.6 14,755
3 37.4 14,030
4 39.2 13,345
5 41 12,700
20 68 6,245
21 69.8 5,970
22 71.6 5,710
23 73.4 5,460
24 75.2 5,225
25 77 5,000
** Resistance if probe is placed in an ice bath.
