40 Part Number GA_SM 08/18
Control Section 6

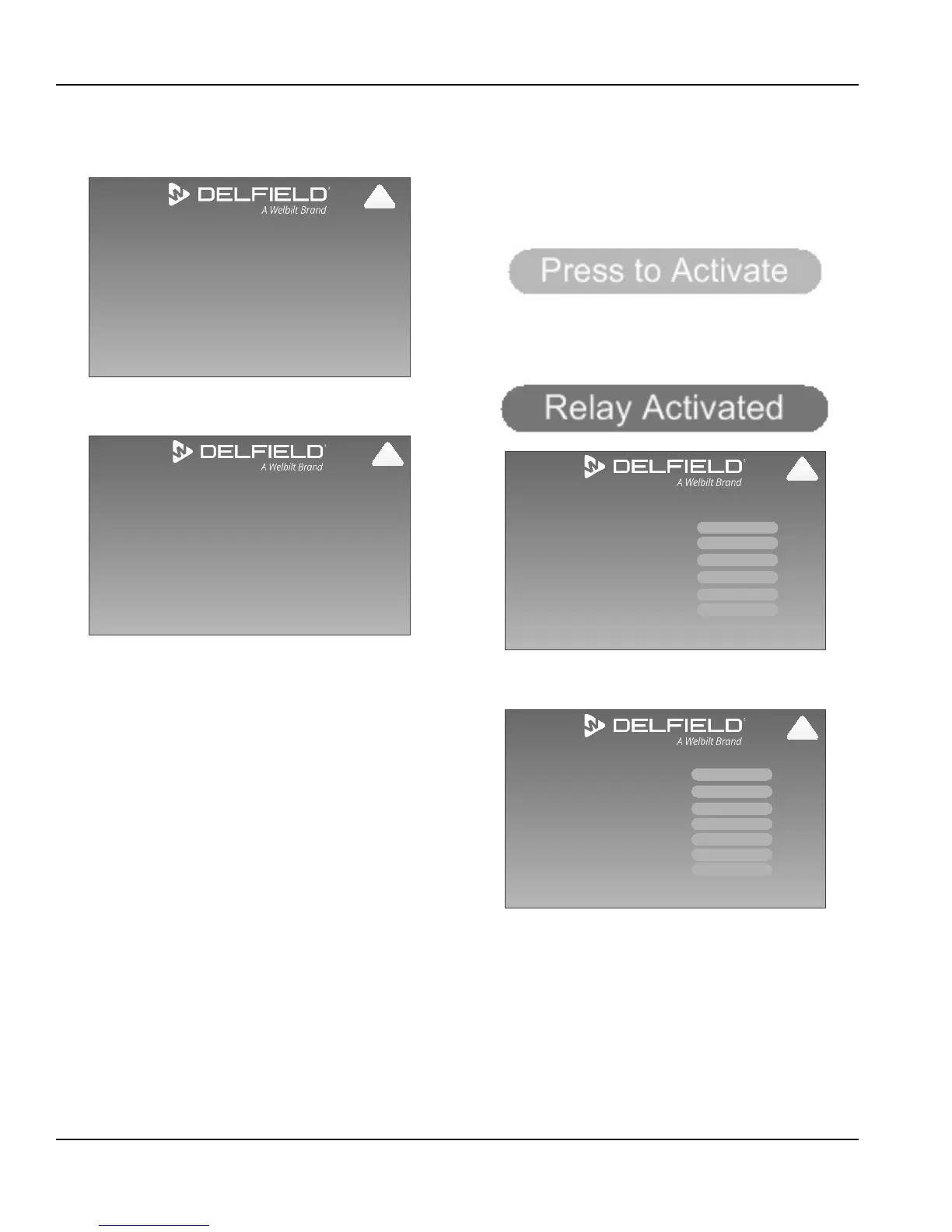

TEMPERATURE PROBES
• This screen is a list of temperature probes with their
current value.
Temperature and Humidity
Box Temperature: XXX.X°X
Ambient Temperature: XXX.X°X
Relative Humidity: XX%
Back
Heated
!
Configuration Screen\Diagnostics\Temperature Probes
Heated Unit
Temperature and Humidity
Box Temperature: 36.4°F
Cond. Inlet Temperature: XXX.X°X
Cond. Outlet Temperature: XXX.X°X
Evap. Inlet Temperature: XXX.X°X
Evap. Outlet Temperature: XXX.X°X
Ambient Temperature: XXX.X°X
Relative Humidity: XX%
Back
Refg, Frz, Split
!
Configuration Screen\Diagnostics\Temperature Probes
1 Section Dual Temperature Unit
RELAY OUTPUTS
• Access to this page requires the service password.
• This screen lists the relays available for a service person
to energize.
• Selecting the Press to Activate icon will energize the
relay for 5 seconds.
• Only one relay can be activated at a time.
• During the 5 second energize period the icon will be
green and read, Relay Activated.
Relay Outputs
Compressor:
Condenser Fan:
Evaporator Fan:
Frame Heaters:
Defrost Heater:
Interior Light:
Back
Press to Activate
Press to Activate
Press to Activate
Press to Activate
Press to Activate
Press to Activate
Freezer
!
Configuration Screen\Diagnostics\Relay Outputs
Freezer
Relay Outputs
Compressor 1:
Compressor 2:
Condenser Fan:
Evaporator Fan:
Frame Heaters:
Defrost Heater:
Interior Light:
Back
Press to Activate
Press to Activate
Press to Activate
Press to Activate
Press to Activate
Press to Activate
Press to Activate
Split system
!
Configuration Screen\Diagnostics\Relay Outputs
1 Section Dual Temperature Unit
To Next Page
