Delfield Specification Line GAF1P-S User Manual

52 Part Number GA_SM 08/18
Component Check Procedures Section 7

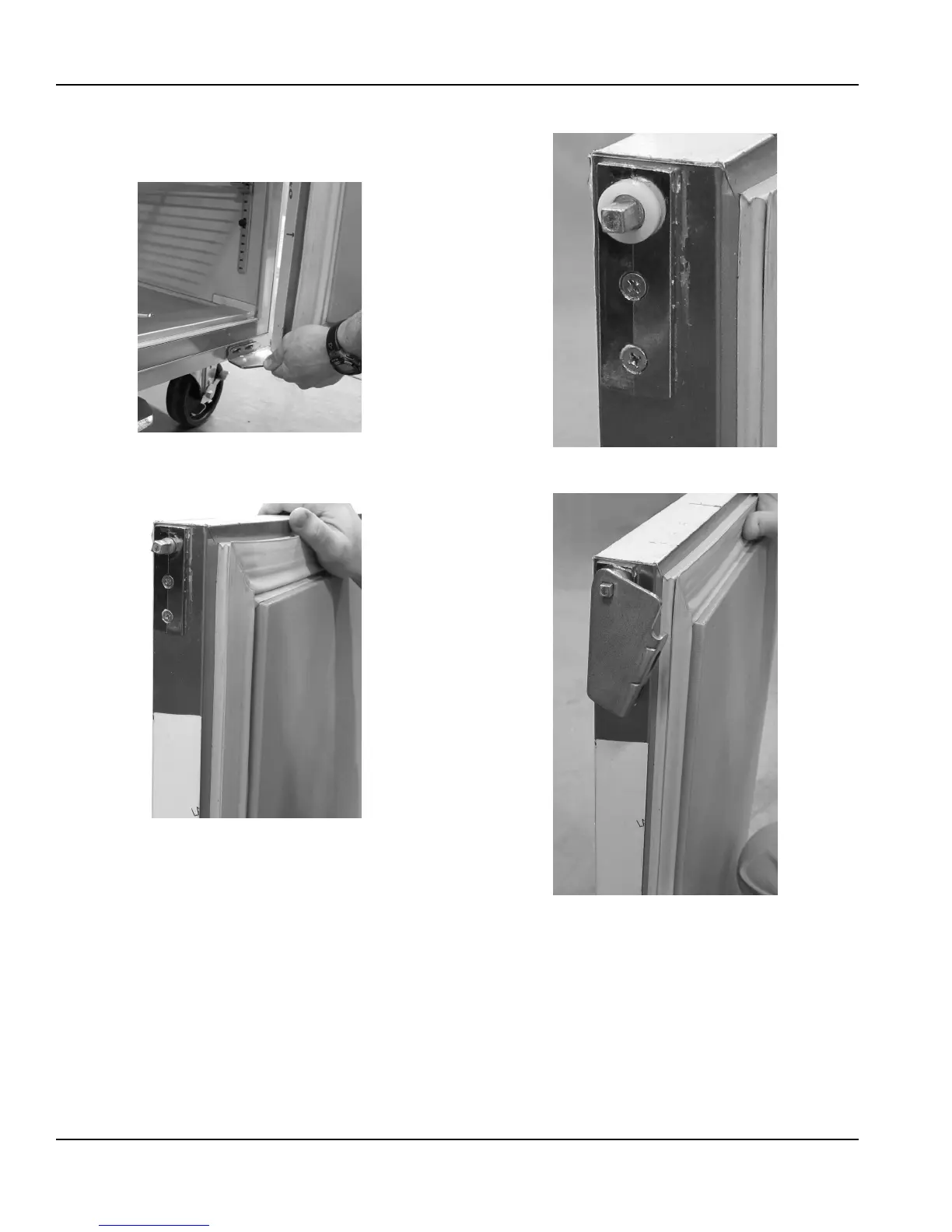

Door Hinges
1. With a 3/8” nut driver remove the nuts and bottom
hinge from the unit.
2. Remove door from unit.
3. Remove two screws from the bottom of the door to
replace the hinge cartridge.
4. Place a white spacer on the bottom hinge pin.
5. Place the hinge on the hinge pin, rotate it and ensure
there is tension in both directions.
