Part Number GA_SM 08/18 15
Section 2 Installation
T-1 Tray Slide Installation
Edge Support for 18” x 26” pans

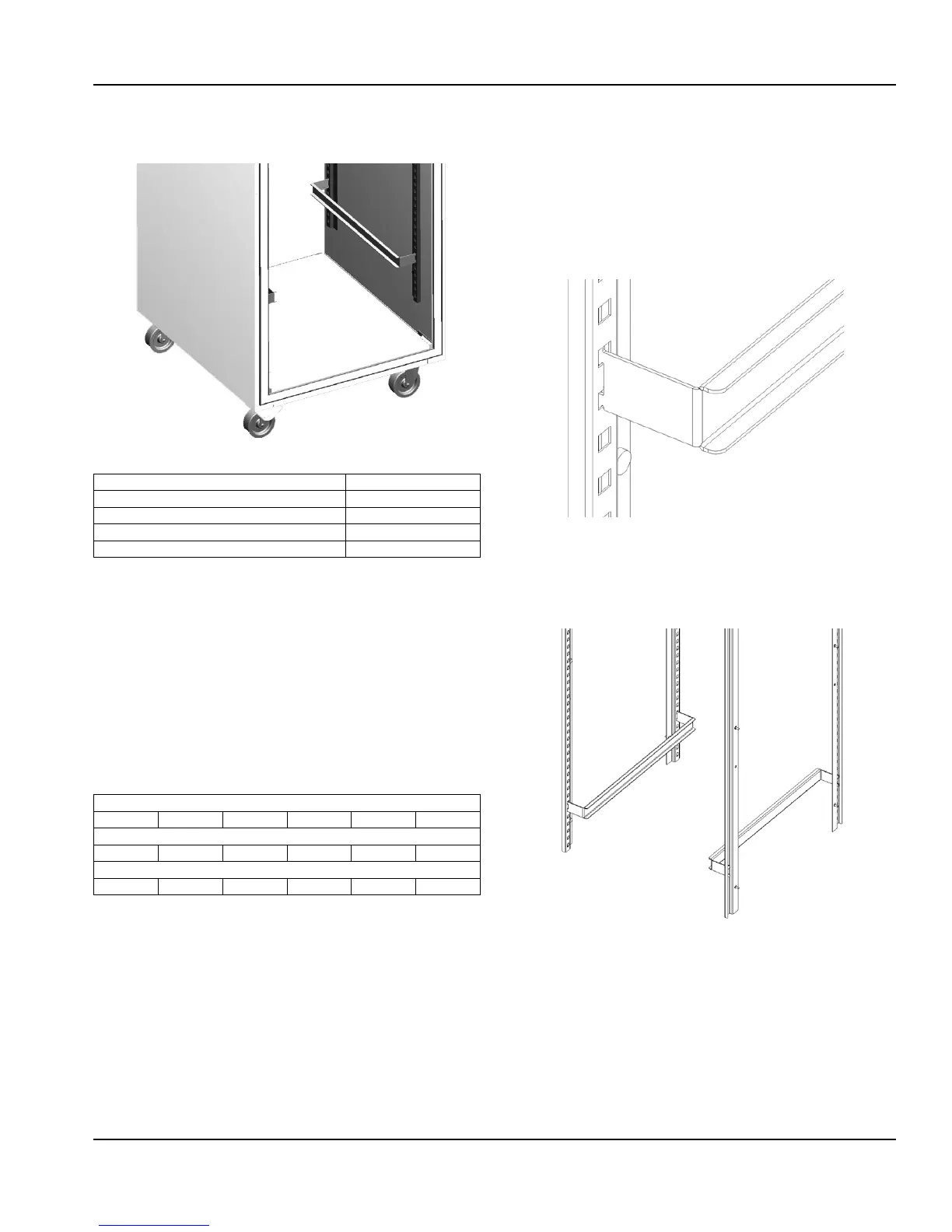

Installed T-1 Tray Slide for 18”x 26” Pans
System Name T-1
Slide Style Tray
Support Style Edge
Compatible with 12” x 20” Pans No
Compatible with 18” x 26” Pans Yes
• The T-1 tray slide system is designed to support 18” x 26”
pans by the edge of the pan.
• The slides are shaped as a C channel.
• Each set of tray slides is mounted at the same height
across a door section.
• For each pan, one set of two (2) tray slides is used. The
exception is 1.5” spacing.
• For 1.5” spacing, the tray slides are mounted every 3”
and the top and bottom of each tray slide is used to hold
a pan.
Centerline Spacing
1.5” 2.0” 3.0” 4.0” 5.0” 6.0”
Maximum Tray Slides for a Full Section
15 23 15 12 9 8
Maximum Tray Slides for a Half Section (Top or Bottom)
7 10 7 5 4 4
T-1 Installation Instructions
1. For each pan, mount a pair of tray slides; one on each
side of the door section at the same height. Mount the
tray slides onto the pilasters by sliding the tray slide
tabs down into the cutouts. Make sure that all tabs are
engaged securely to each pilaster.
NOTE: A dead-blow hammer is recommended to seat the tab
into the cutouts.
Pilaster
Slider
2. Verify that all tray slides are lined up evenly.
NOTE: An easy check to verify correct installation is to slide
an 18” x 26” pan onto each slide. If the pan is held securely,
and is level inside the door section, the installation has been
successful.
To Next Page
