Dell 1815dn - All-in-one Laser Printer User Manual

44 Loading Print Media

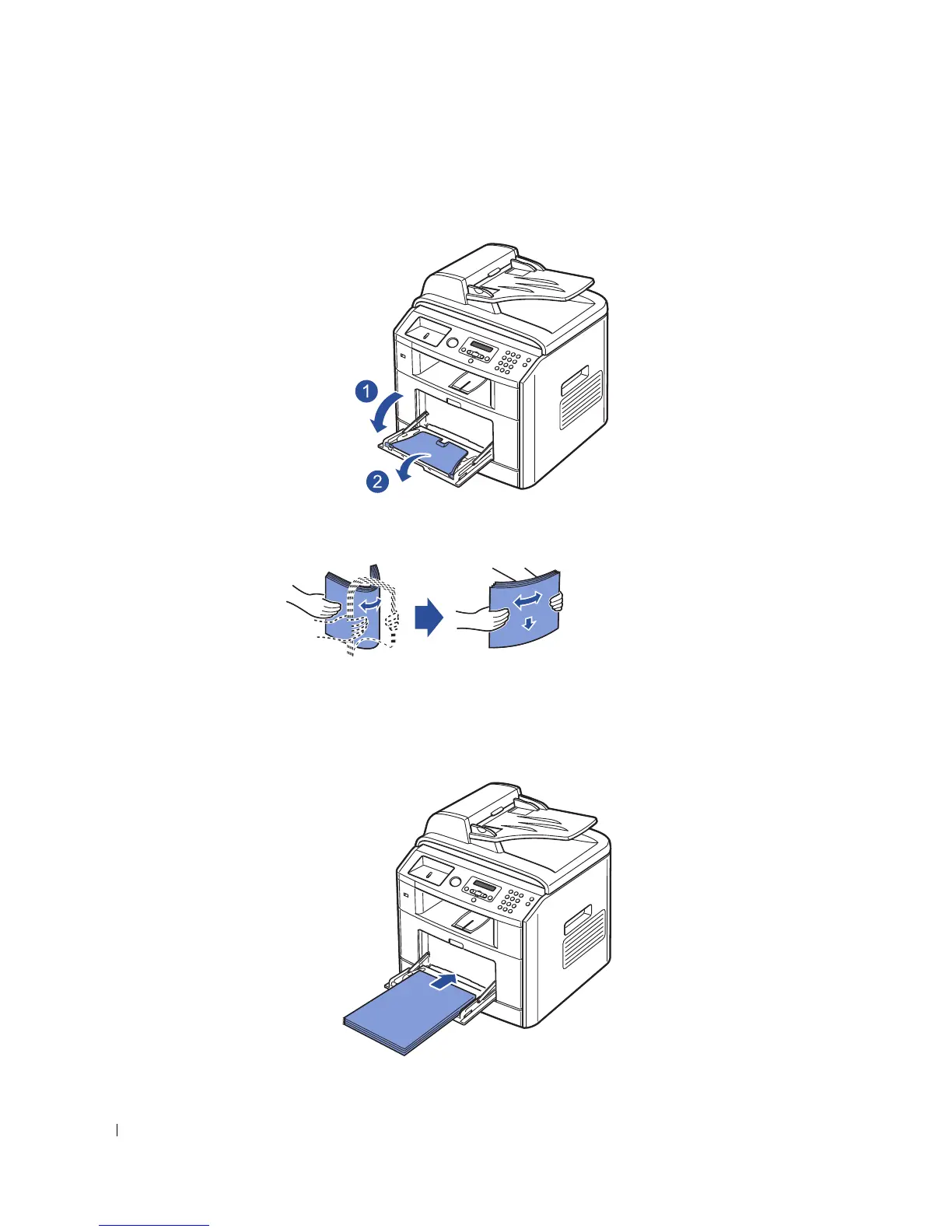

To use the bypass tray:
1 Open the bypass tray and unfold the paper support extension, as shown.
2 If you are using paper, flex or fan the edge of the paper stack to separate the pages before loading.
For transparencies, hold them by the edges and avoid touching the print side. Oils from your fingers
can cause print quality problems.
3 Load the print material with the side to be printed on facing up .

Dell 1815dn - All-in-one Laser Printer Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax Transmission Speed	33.6 Kbps
Monthly Duty Cycle	Up to 15, 000 pages
Connectivity	USB 2.0, Ethernet
Duplex Printing	Automatic
Functions	Print, Copy, Scan, Fax
First Page Out Time	Less than 8.5 seconds
Memory	32 MB
Paper Handling	250-sheet input tray, 50-sheet multi-purpose tray
Media Size	A4, A5, B5
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Linux, Mac OS
