Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

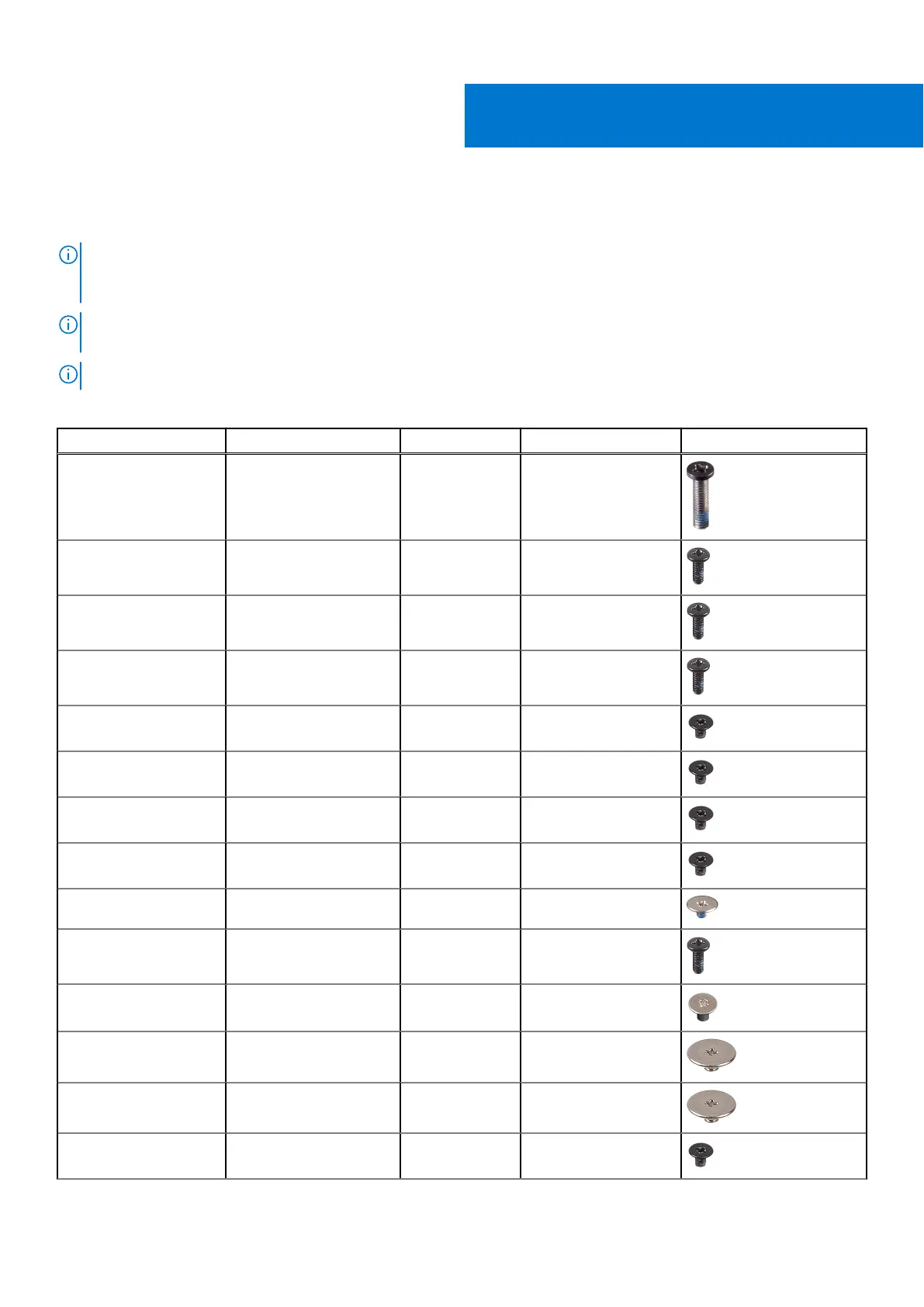

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm-rest assembly M2.5x9 8
Battery (Half-length) Palm-rest assembly M2x5 4
Battery (Full-length) Palm-rest assembly M2x5 6
Hard-drive assembly Palm-rest assembly M2x5 4
Fans Heat sink M2x3 2
Heat-sink assembly System board and fan M2x3 4
Wireless-card bracket System board M2x3 1
Solid-state drive bracket Palm-rest assembly M2x3 1
Solid-state drive Solid-state drive bracket M2x2 1
I/O board Palm-rest assembly M2x5 1
Touchpad Palm-rest assembly M2x2.5 4
Display hinges Palm-rest assembly M2.5x4.5 2
Display hinges Display back-cover and
antenna assembly
M2.5x4.5 10
Display panel Display back-cover and
antenna assembly
M2x3 4
5
Screw list 15
