Replacing the display assembly
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

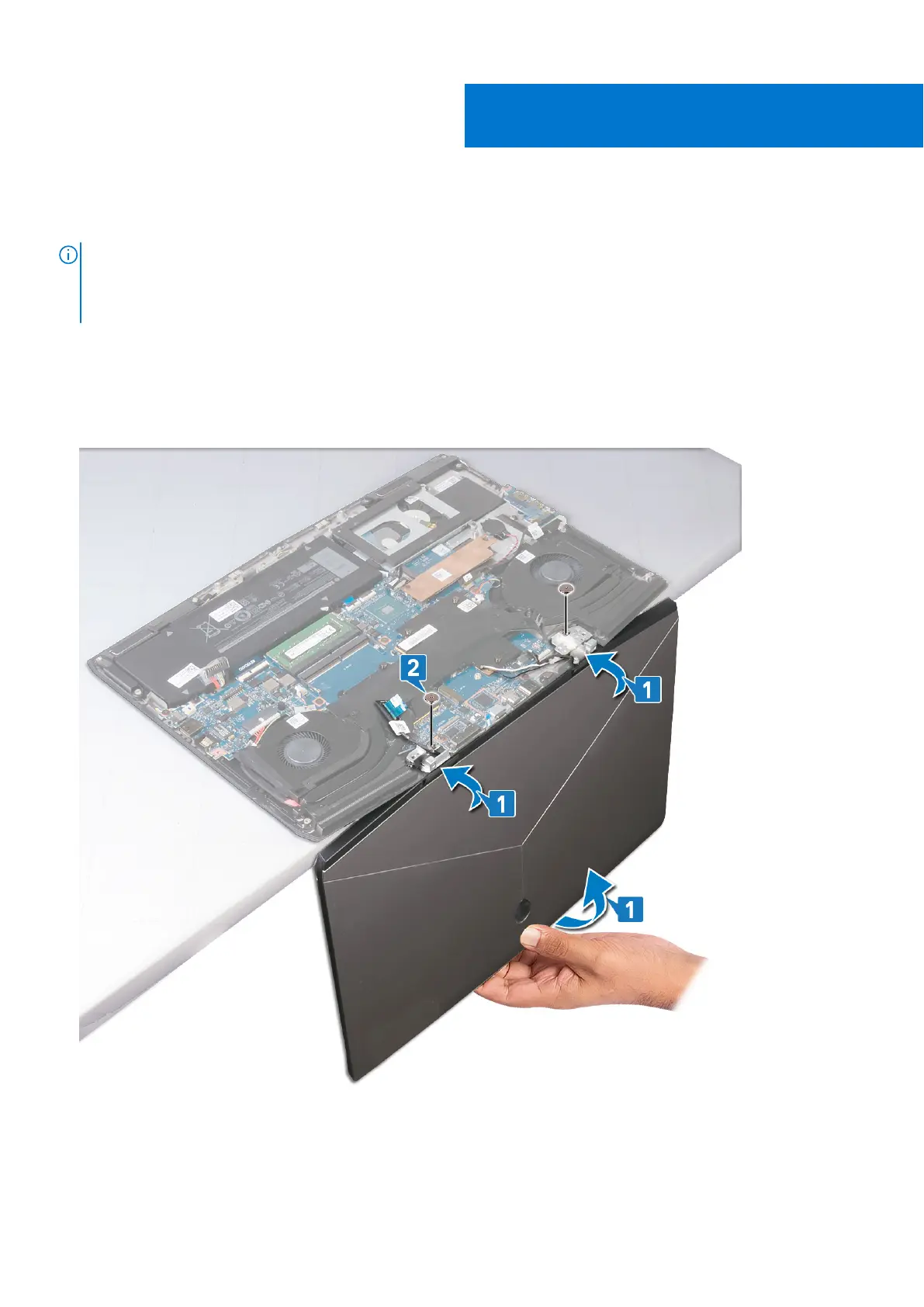

1. Open the hinges to 90 degree and place the display assembly on the palm-rest assembly by rotating outward.
2. Replace the two screws (M2.5x4.5) that secures the display hinges to the palm-rest assembly.
3. Close the display and place the computer on a clean and flat surface.
4. Slide the display cable into the connector on the system board and close the latch to secure the cable.
5. Adhere the tape that secures the display-cable connector latch to the system board.
6. Connect the camera cable to the system board and adhere the tape that secures the camera cable to the system board.
