Dell Alienware m17

To Next Page

To Previous Page

Procedure

1. Peel the tape that secures the I/O-board cable to the I/O board.

2. Open the latch and disconnect the I/O-board cable from the I/O board.

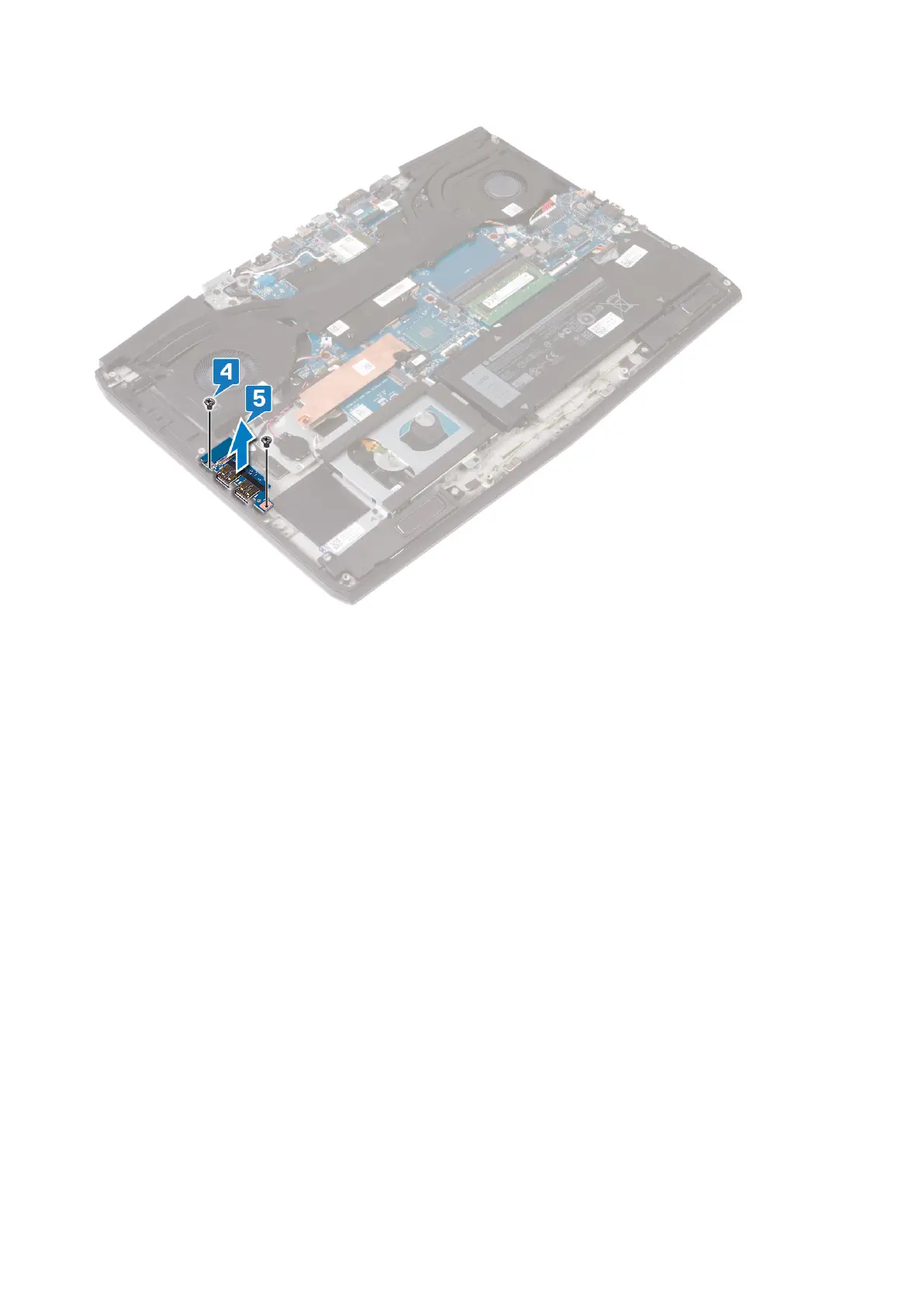

Removing the I/O board
