Dell Alienware m17 - Post-Requisites

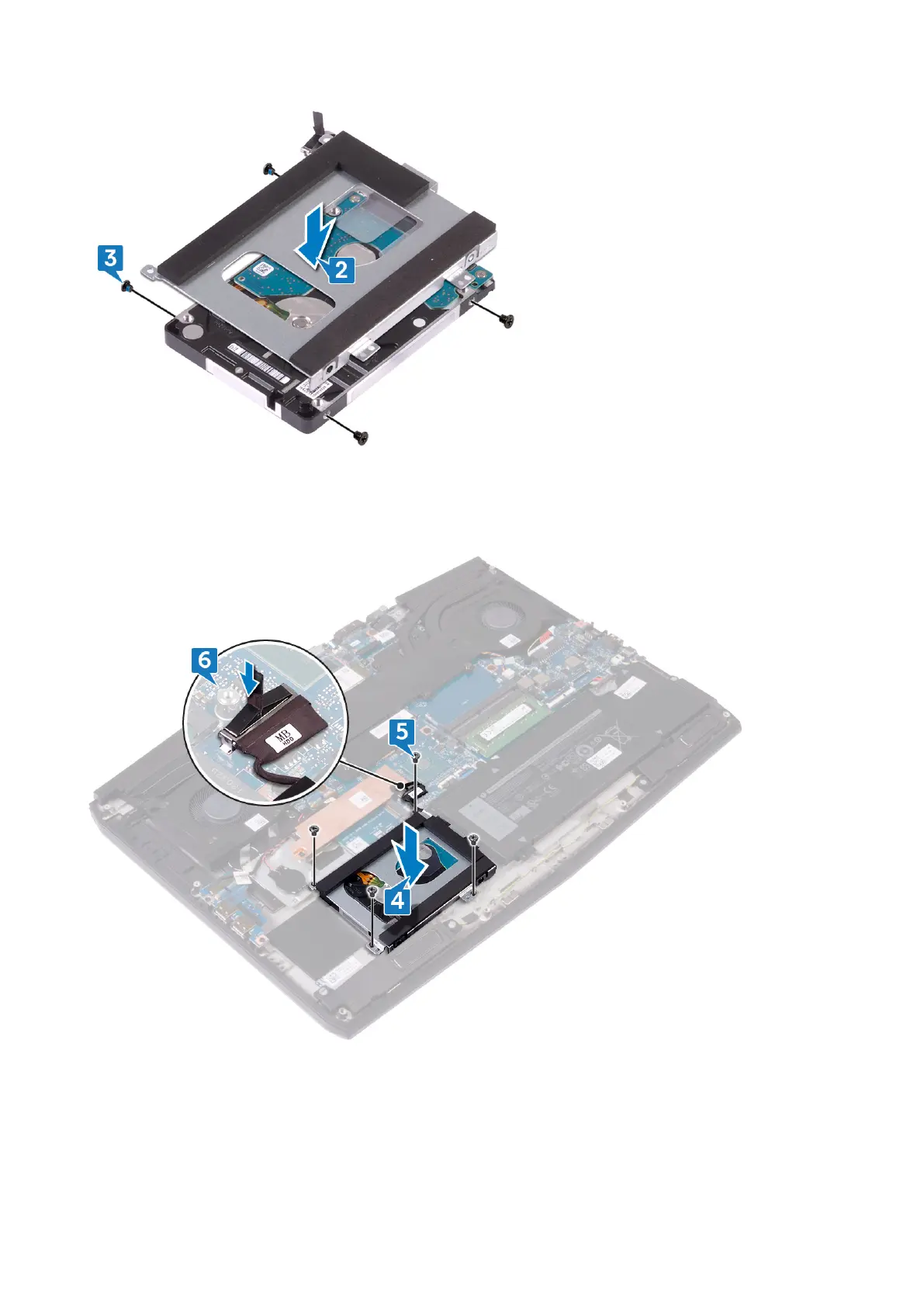

4. Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest assembly.
5. Replace the four screws (M2x5) that secure the hard-drive assembly to the palm-rest assembly.
6. Connect the hard-drive cable to the system board.
Post-requisites
Replace the base cover.
Replacing the hard drive
31
