Replacing the power-adapter port
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

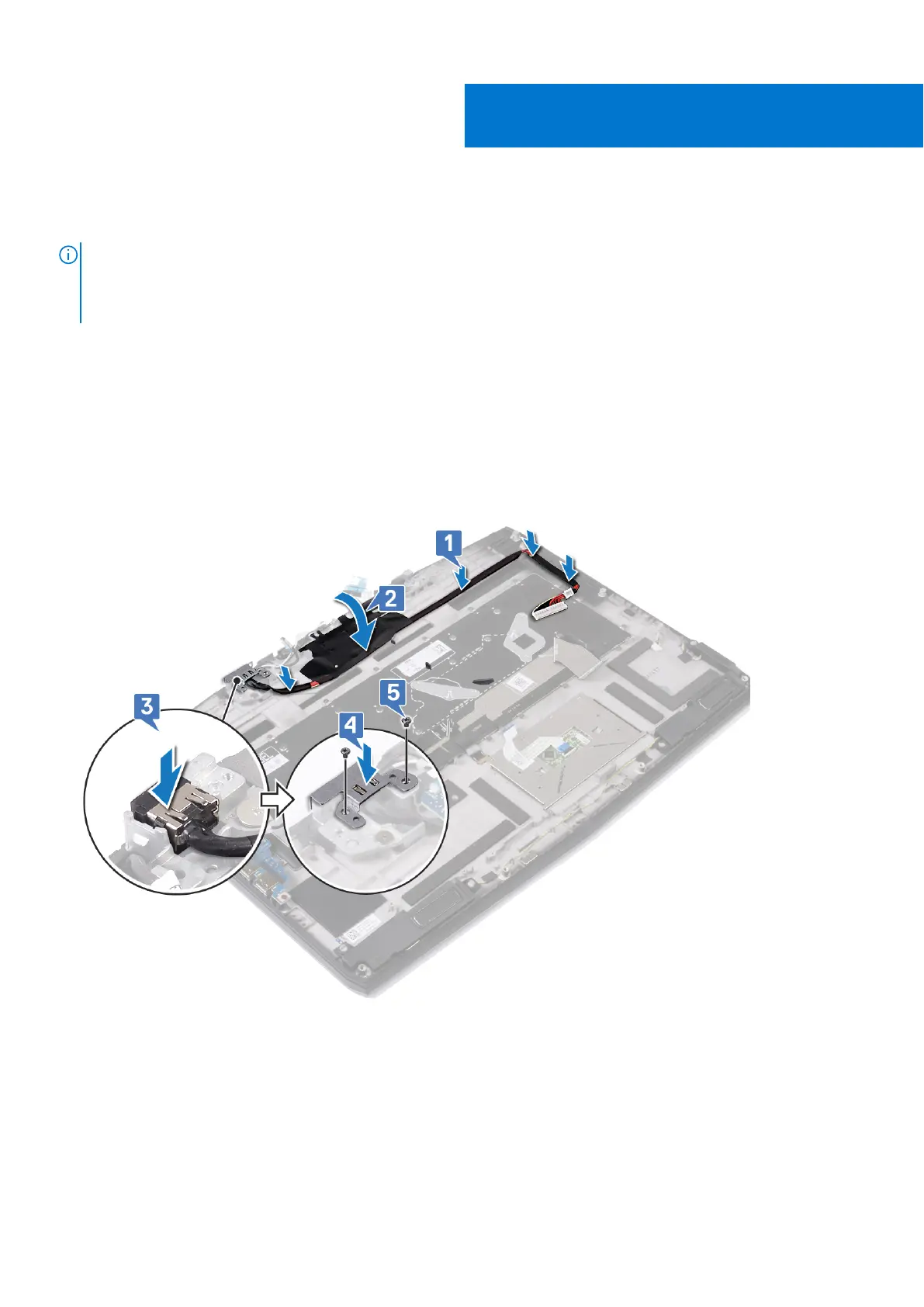

1. Route the power-adapter port cable through the routing guides on the palm-rest assembly.
2. Adhere the Mylar to the power-button board.
3. Place the power-adapter port into the slot on the palm-rest assembly.
4. Align and place the power-button board bracket on the palm-rest assembly .
5. Replace the two screws (M2.5x4.5) that secure the power-adapter port bracket to the palm-rest assembly.
Post-requisites
1. Replace the system board.
2. Follow the procedure from step 2 to step 6 in Replacing the heat sink.
3. Replace the solid-state drive/Intel Optane.
4. Replace the wireless card.
