Removing the speakers
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1. Remove the base cover.
2. Remove the battery (half-length) or the battery (full-length), whichever applicable.
3. Follow the procedure from step 1 to step 3 in Removing the hard drive.

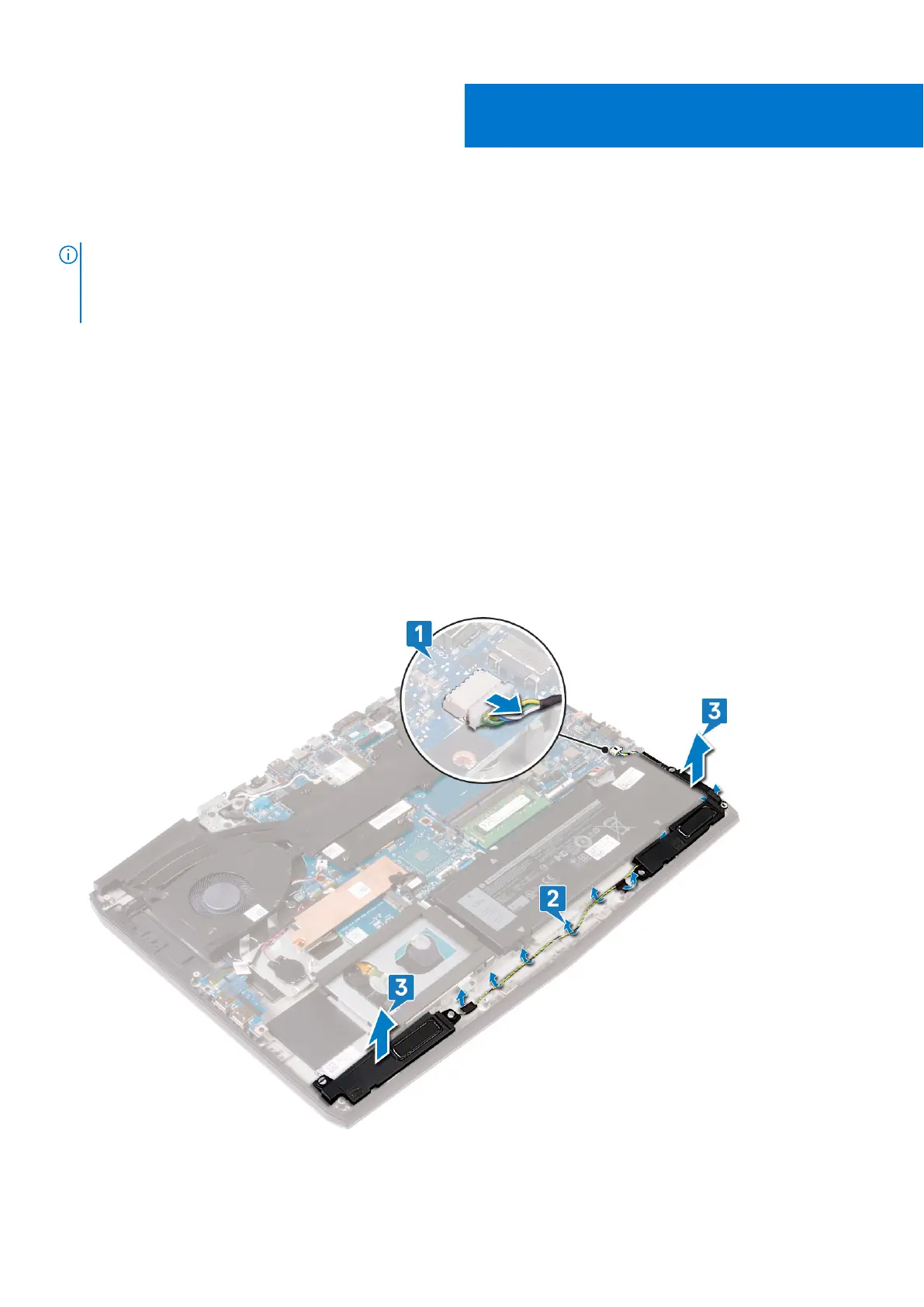

Procedure
1. Disconnect the speaker cable from the system board.
2. Note the speaker cable routing and remove the speaker cable from the routing guides on palm-rest assembly.
3. Lift the speakers, along with the cable, off the palm-rest assembly.
30
Removing the speakers 65
