Replacing the display hinges
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

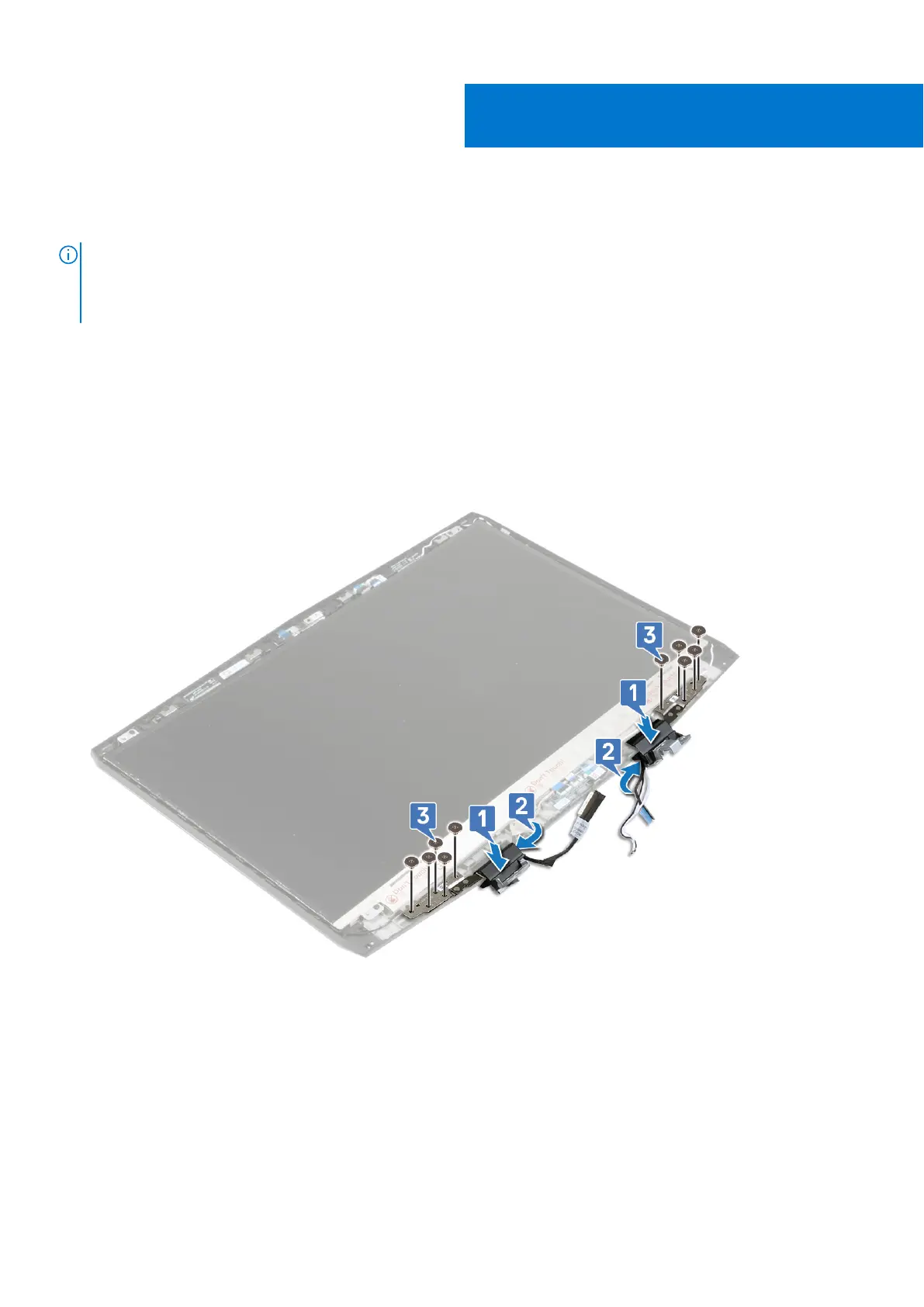

1. Align the screw holes on the display hinges with the screw holes on the display assembly.
2. Replace the plastic hinge covers on the left and right hinges along with the display cable.
3. Replace the ten screws (M2.5x4.5) that secure the display hinges to the display assembly.
Post-requisites
1. Replace the display bezel.
2. Replace the display assembly.
3. Replace the wireless card.
4. Replace the base cover.
