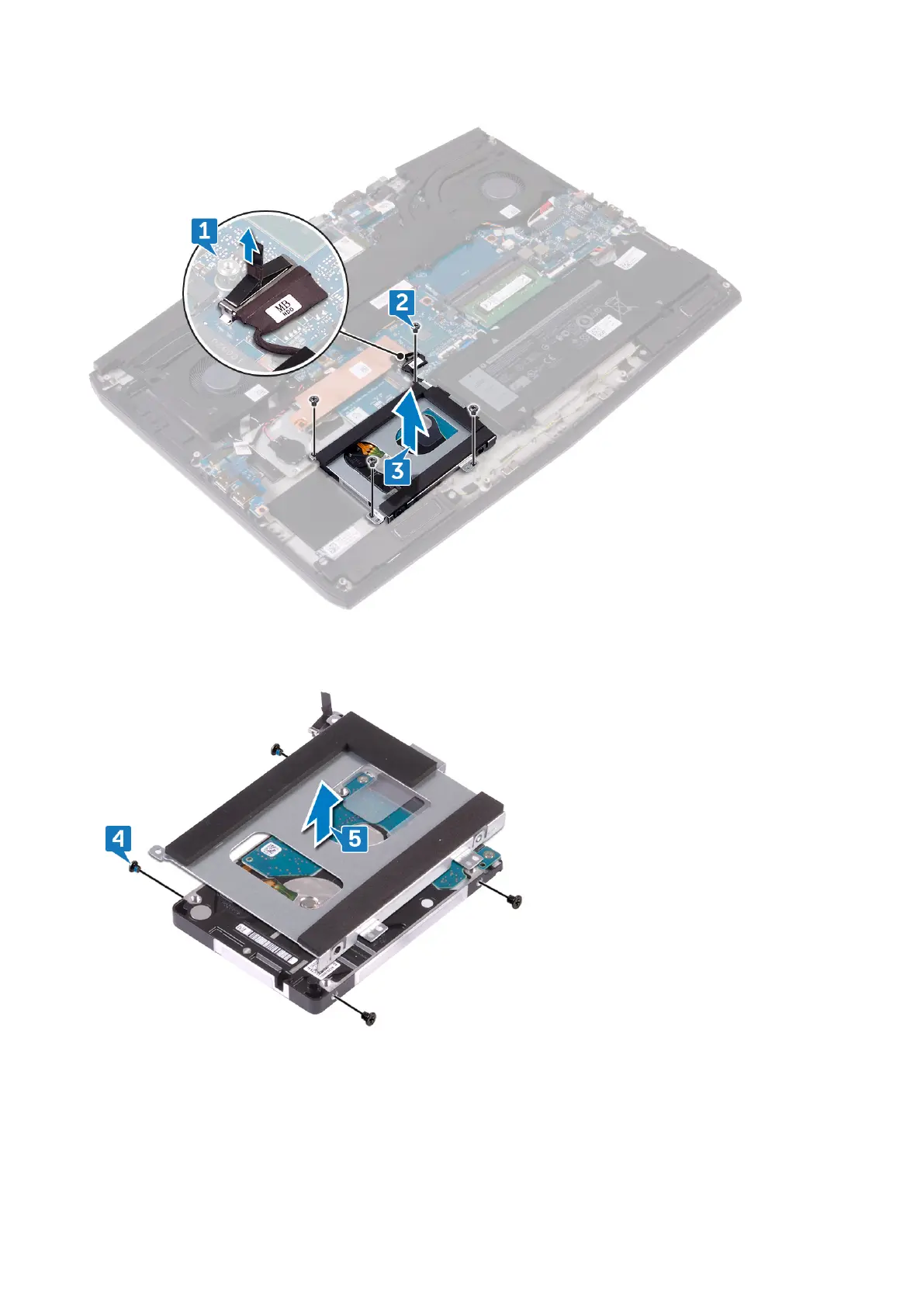

4. Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

5. Lift the hard drive off the hard-drive bracket.

6. Disconnect the interposer from the hard-drive assembly.

Removing the hard drive
