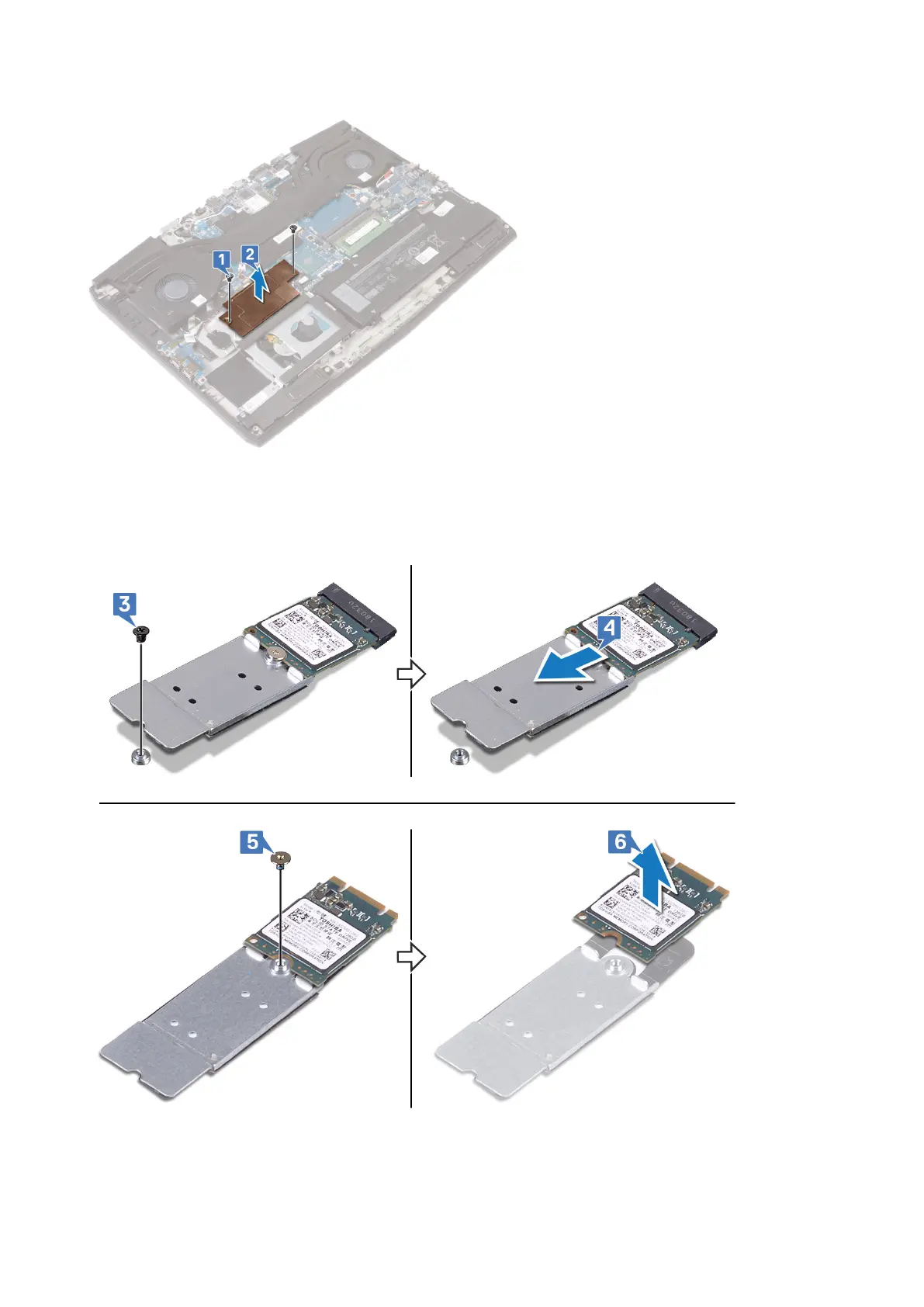

3. Remove the screw (M2x3) that secures the M.2 2230 card bracket to the palm-rest assembly.
4. Slide and remove the M.2 2230 card along with the bracket from the M.2 slot on the system board.
5. Remove the screw (M1.6x2) that secures the M.2 2230 card to the card bracket.
6. Lift the M.2 2230 card off the card bracket.
Removing the solid-state drive/Intel Optane
