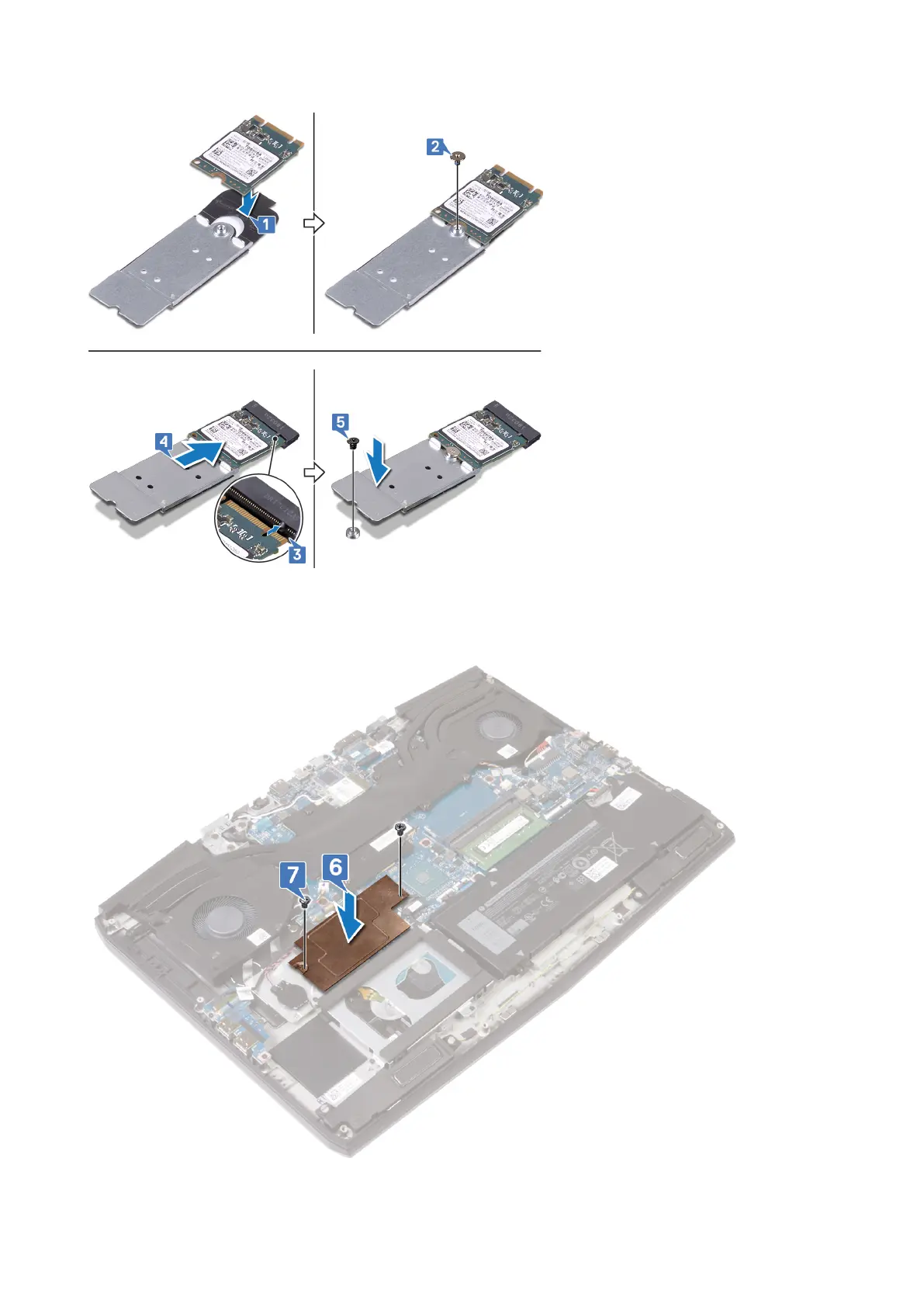

6. Align the screw holes of the M.2 thermal shield with the screw holes on the palm-rest assembly and system board.

7. Replace the two screws (M2x3) that secure the M.2 thermal shield to the palm-rest assembly and system board.

Replacing the solid-state drive/Intel Optane
