Dell Alienware m17

To Next Page

To Previous Page

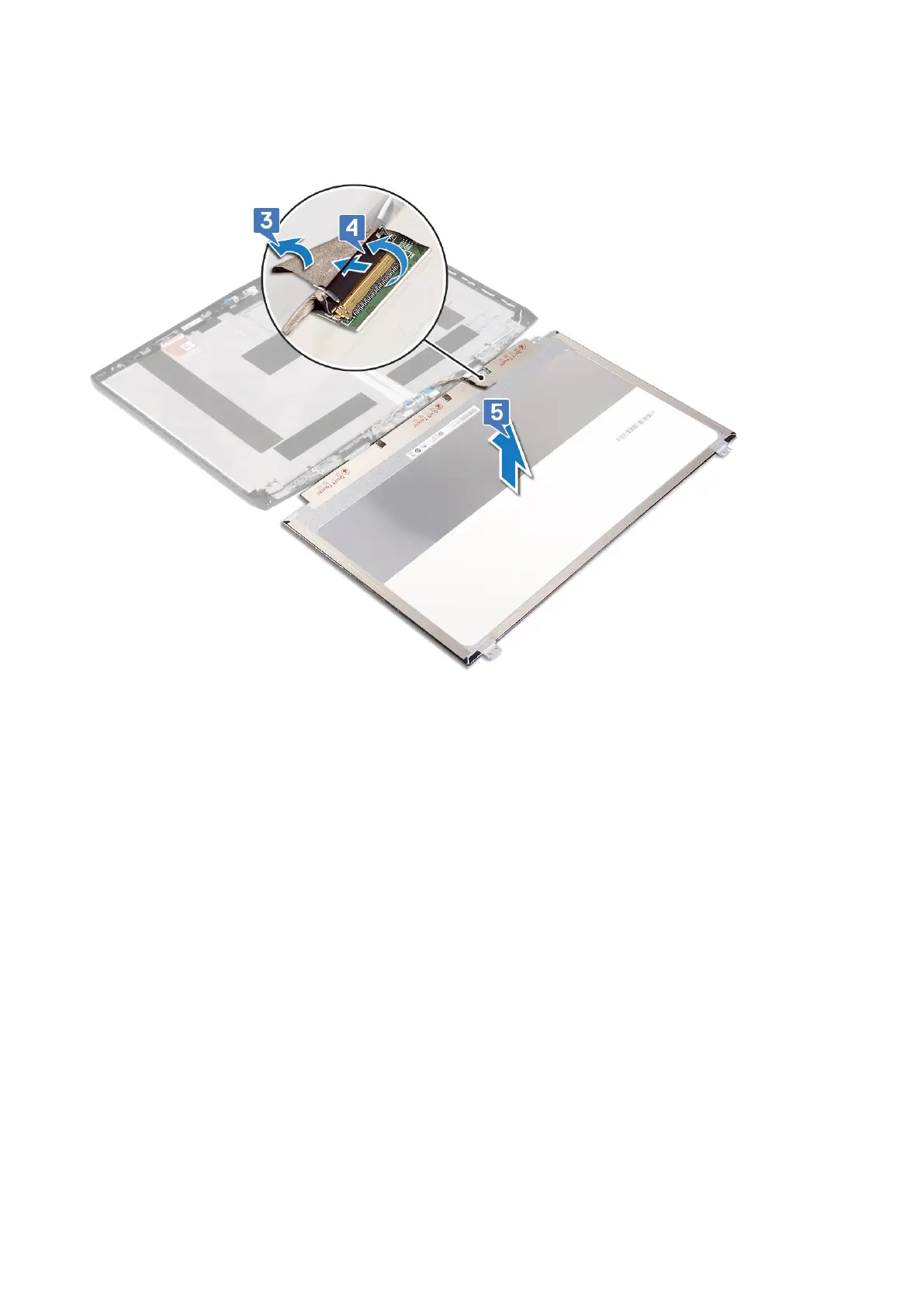

3. Peel the tape that secures the display-cable connector latch to the display panel.

4. Open the latch and disconnect the display cable from the display panel.

5. Lift the display panel from the display back-cover and antenna assembly.

After performing all the steps you are left with the display panel.

Removing the display panel

Main Page

default chapter3
