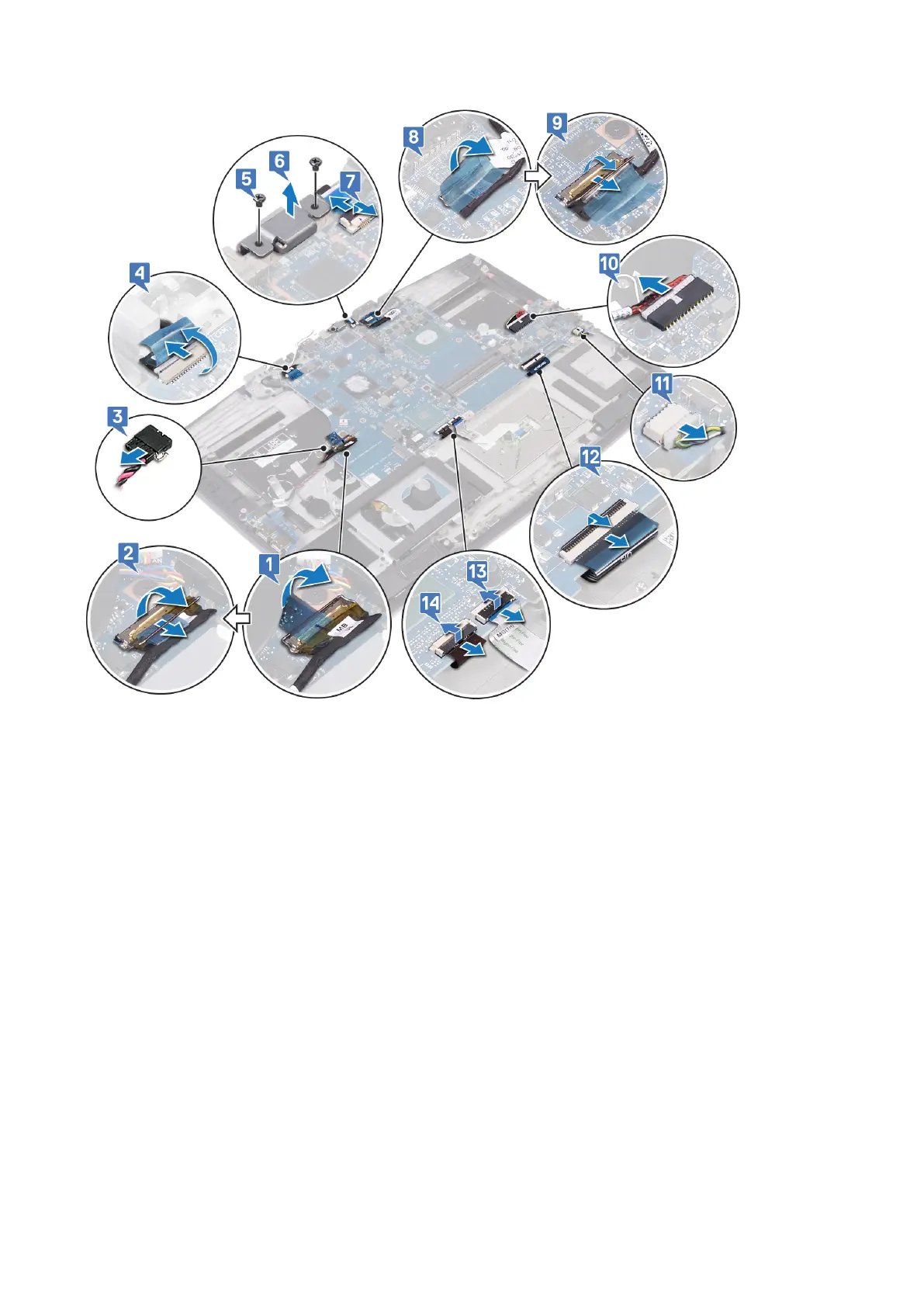

15. Remove the six screws (M2x3) that secure the system board to the palm-rest assembly.

16. Gently release the ports on the system board from the slots on the palm-rest assembly and lift the system board off the

palm-rest assembly.

Removing the system board
