Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the memory module.
4. Remove the M.2 2280 solid state drive or M.2 2230 solid-state drive in slot one and two, whichever is applicable.
5. Remove the M.2 2230 solid-state drive in slot three and four, if applicable.
6. Remove the wireless card.
7. Remove the
small fan.
8. Remove the top heat-sink.
9. Remove the rear I/O cover.
10.Remove the battery.
About this task

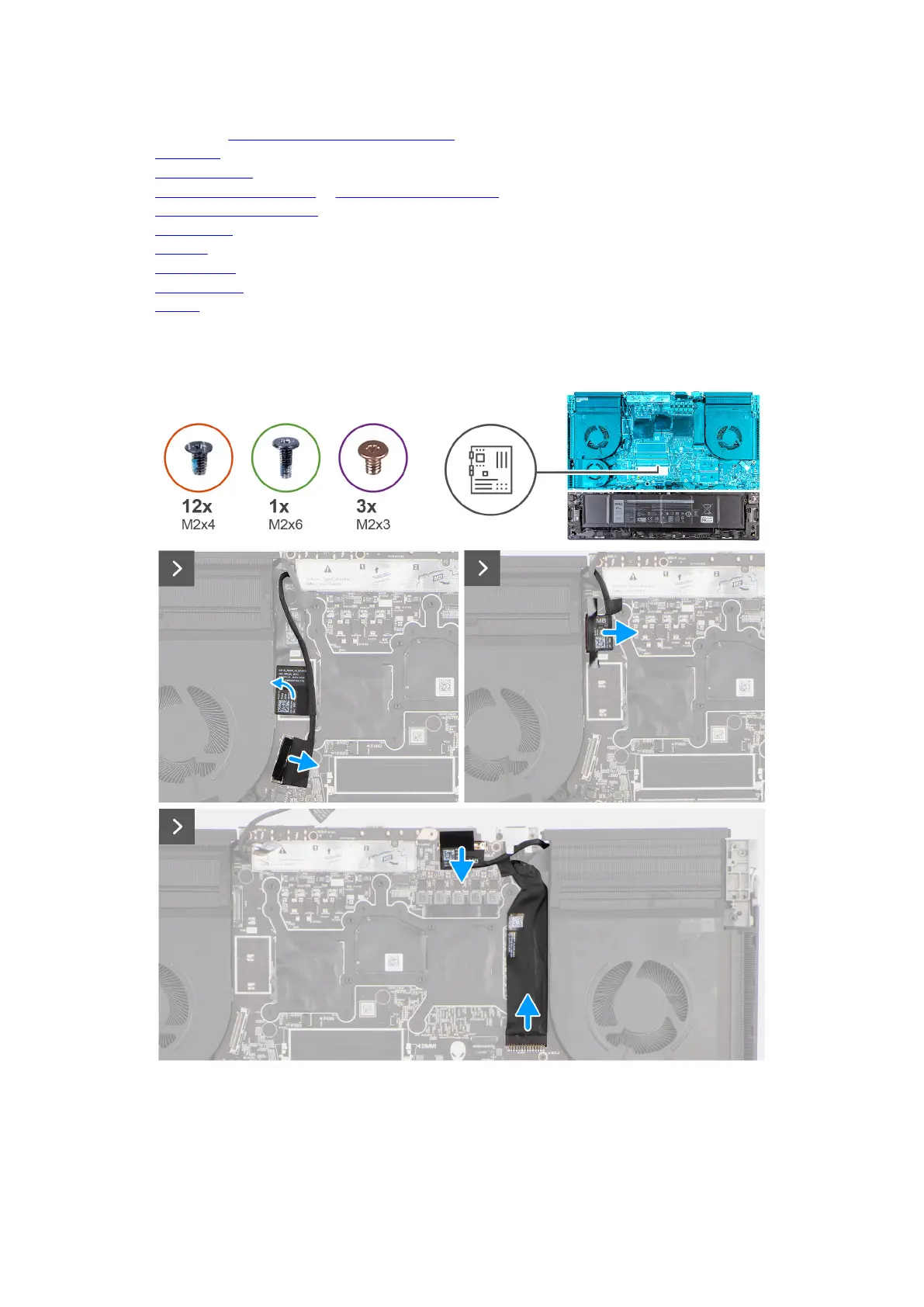

The following images indicate the location of the system board and provide a visual representation of the removal procedure.
Steps
1. Disconnect the rear I/O board cable from the connector on the system board.
2. Peel the tapes securing the rear I/O board cable to the system board.
3. Peel the tape securing the camera cable to the system board.
76
