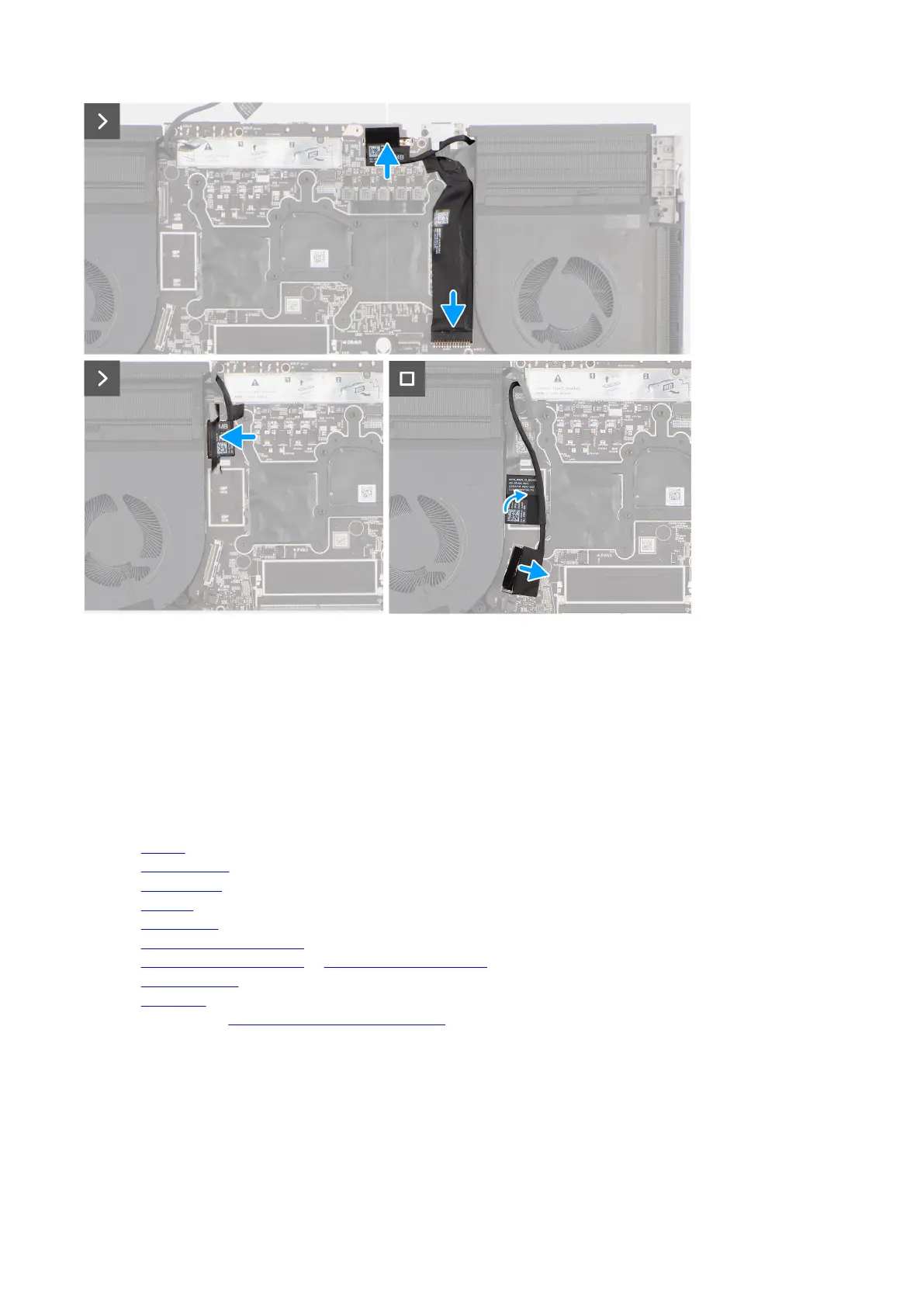

18.Adhere the power-adapter port cable to the system board.
19.Connect the power-adapter port cable to the connector (DCIN1) on the system board.
20.Connect the display cable to the connector (LCD1) system board and close the latch to secure the cable.
21. Adhere the tape that secures the display-cable connector latch to the system board.
22.Connect the camera cable to connector (CAM1) the system board.
23.Adhere the tape securing the camera cable to the system board to secure the cable.
24.Connect the rear I/O board cable to the system board.
25.Adhere the tapes securing the rear I/O board cable to the system board.
Next steps
1. Install the
battery.
2. Install the rear I/O cover.
3. Install the top heat-sink.
4. Install the small fan.
5. Install the wireless card.
6. Install the M.2 2230 solid-state drive in slot three and four, if applicable.
7. Install the
M.2 2280 solid-state drive or M.2 2230 solid-state drive in slot one and two, whichever is applicable.
8. Install the memory module.
9. Install the base cover.
10.Follow the procedure in After working inside your computer.
81
