Dell™Latitude™E4200ServiceManual
Removing the Card With Bluetooth Wireless Technology
Replacing the Card With Bluetooth Wireless Technology

Removing the Card With Bluetooth Wireless Technology

1. Follow the procedures in Before Working on Your Computer.

2. Remove the LED cover (see Removing the LED Cover).

3. Remove the keyboard (see Removing the Keyboard).

4. Disconnect the cable from the system board by gently pulling up on the release latch.

5. Lift up on the module to remove it from the base assembly.

6. Turn the module upside down.

7. Remove the M2 x 3-mm screw from the card.

8. Pull up on the card to disconnect it from the connector on the module.
Replacing the Card With Bluetooth Wireless Technology

1. Connect the card to the card connector on the module.

2. Replace the M2 x 3-mm screw on the card.

3. Turn the module topside up, and press the module into the base assembly.

4. Connect the cable to the system board using the release latch.

5. Replace the keyboard (see Replacing the Keyboard).

CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.

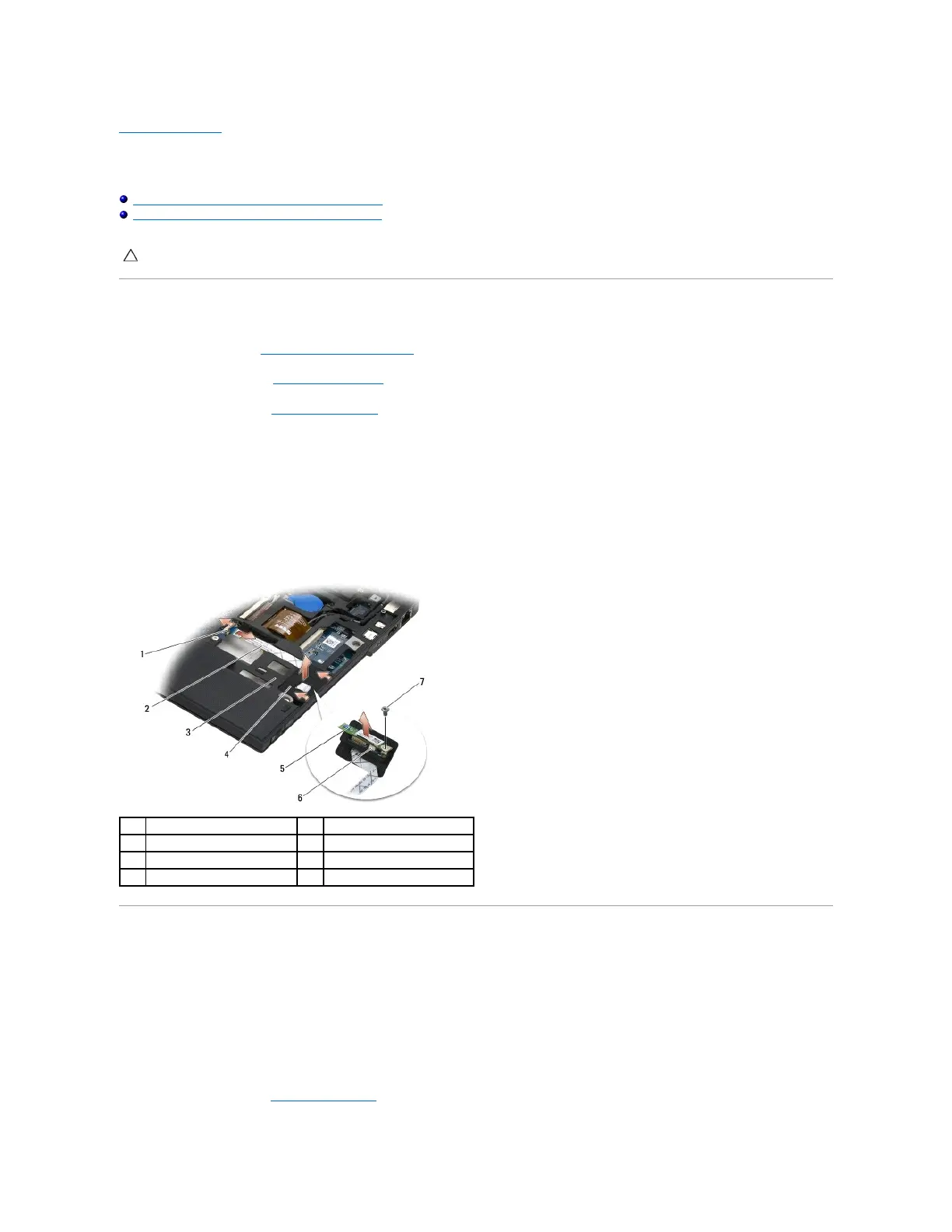

1
release latch
2
cable
3
base assembly
4
module
5
card
6
card connector
7
screw


