 Palm Rest Assembly
Dell™Latitude™E4200ServiceManual
Removing the Palm Rest Assembly
Replacing the Palm Rest Assembly

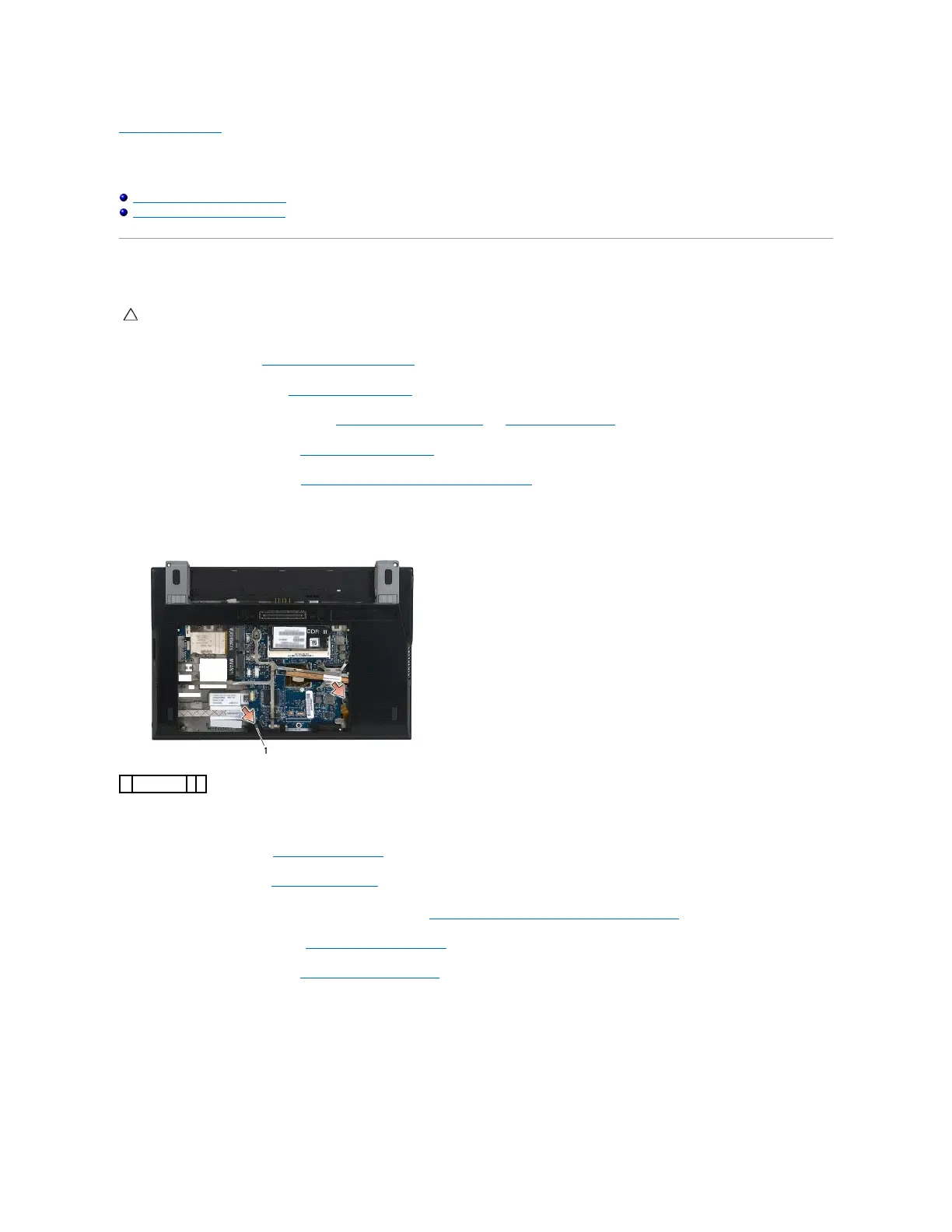

Removing the Palm Rest Assembly


1. Follow the instructions in Before Working on Your Computer.

2. Remove the service panel (see Removing the Service Panel).

3. Remove the WLAN and WWAN cards (see Removing the WLAN/WiMax Card and Removing a WWAN Card).

4. Remove the memory module (see Removing the Memory Module).

5. Remove the solid state drive (see Removing the Solid State Drive and Cable Assembly).

6. Disconnect the fingerprint reader/wireless switch cable from the system board by gently pulling on the connector release.

7. Remove the two silver M2 x 5-mm screws labeled "P".

8. Turn the computer topside up.

9. Remove the LED cover (see Removing the LED Cover).

10. Remove the keyboard (see Removing the Keyboard).

11. Remove the module with Bluetooth
®
wireless technology (see Removing the Card With Bluetooth Wireless Technology).

12. Remove the display assembly (see Removing the Display Assembly).

13. Remove the coin-cell battery (see Removing the Coin-Cell Battery).

14. Disconnect the ExpressCard and touch pad cables from the system board by gently lifting up on the latches near the cable connectors.
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.
1
screws (2)


