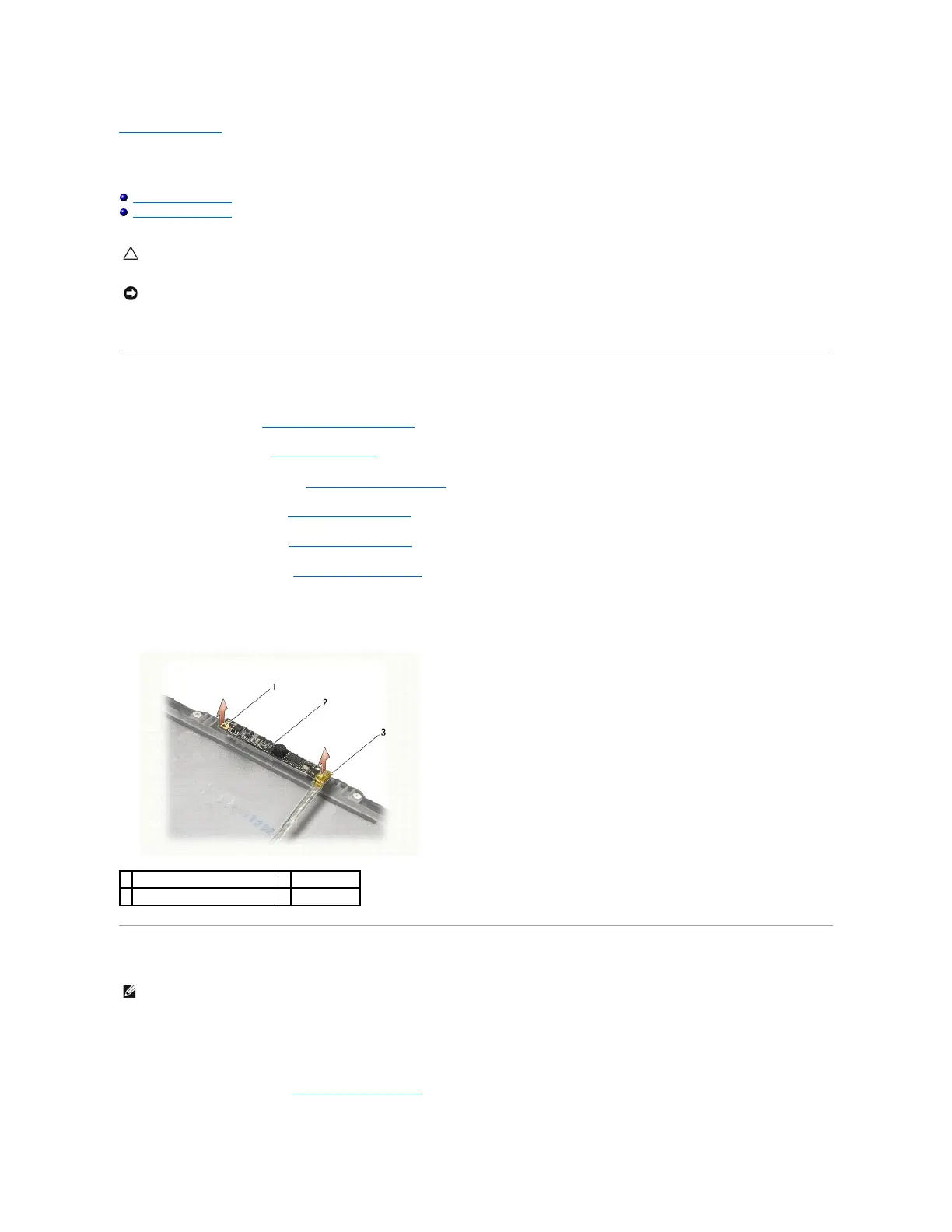

Dell Latitude E4200 - Removing the Camera; Replacing the Camera

Back to Contents Page
 Camera
Dell™Latitude™E4200ServiceManual
Removing the Camera
Replacing the Camera


If you ordered a camera with your computer, the camera is already installed.
Removing the Camera

1. Follow the instructions in Before Working on Your Computer.

2. Remove the keyboard (see Removing the Keyboard).

3. Remove the display assembly (see Removing the Display Assembly).

4. Remove the display bezel (see Removing the Display Bezel).

5. Remove the display panel (see Removing the Display Panel).

6. Remove the display hinges (see Removing the Display Hinges).

7. Lift the camera board from the display back cover.

8. Free the display/camera cable assembly from the display hinges.
Replacing the Camera

1. Align the camera board to the alignment posts on the display cover.

2. Re-thread the display cables through the hinges.

3. Replace the display hinges (see Replacing the Display Hinges).

CAUTION: Before working inside the computer, read the safety information that shipped with the computer. For additional safety best practices
information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface
(such as the back panel) on the computer.
1
alignment post (2)
2
camera board
3
display/camera cable assembly


NOTE: This procedure assumes that you have completed the removal procedure first.
