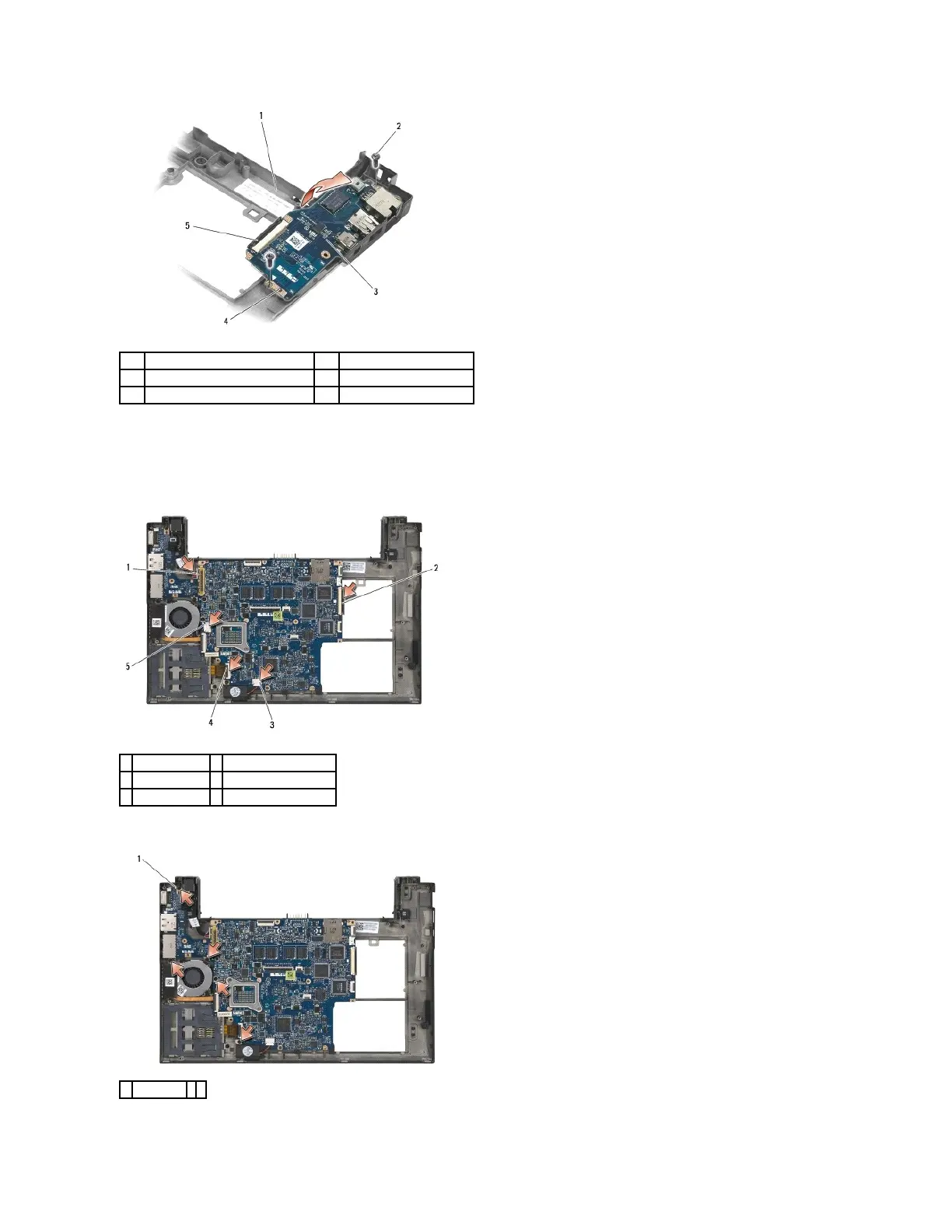

16. Disconnect the right I/O board cable from the system board by gently pulling on the connector release.

17. Disconnect the smart card reader cable from the system board by gently lifting up on the release latch.

18. Disconnect the fan and speaker cables from the system board.

19. Remove the five M2 x 3-mm screws securing the system board assembly to the base assembly.

1
base assembly
2
screws (2)
3
right I/O board
4
guide pins (2)
5
connector release


1
DC power cable
2
right I/O board cable
3
speaker cable
4
smart card reader cable
5
fan cable


1
screws (5)


