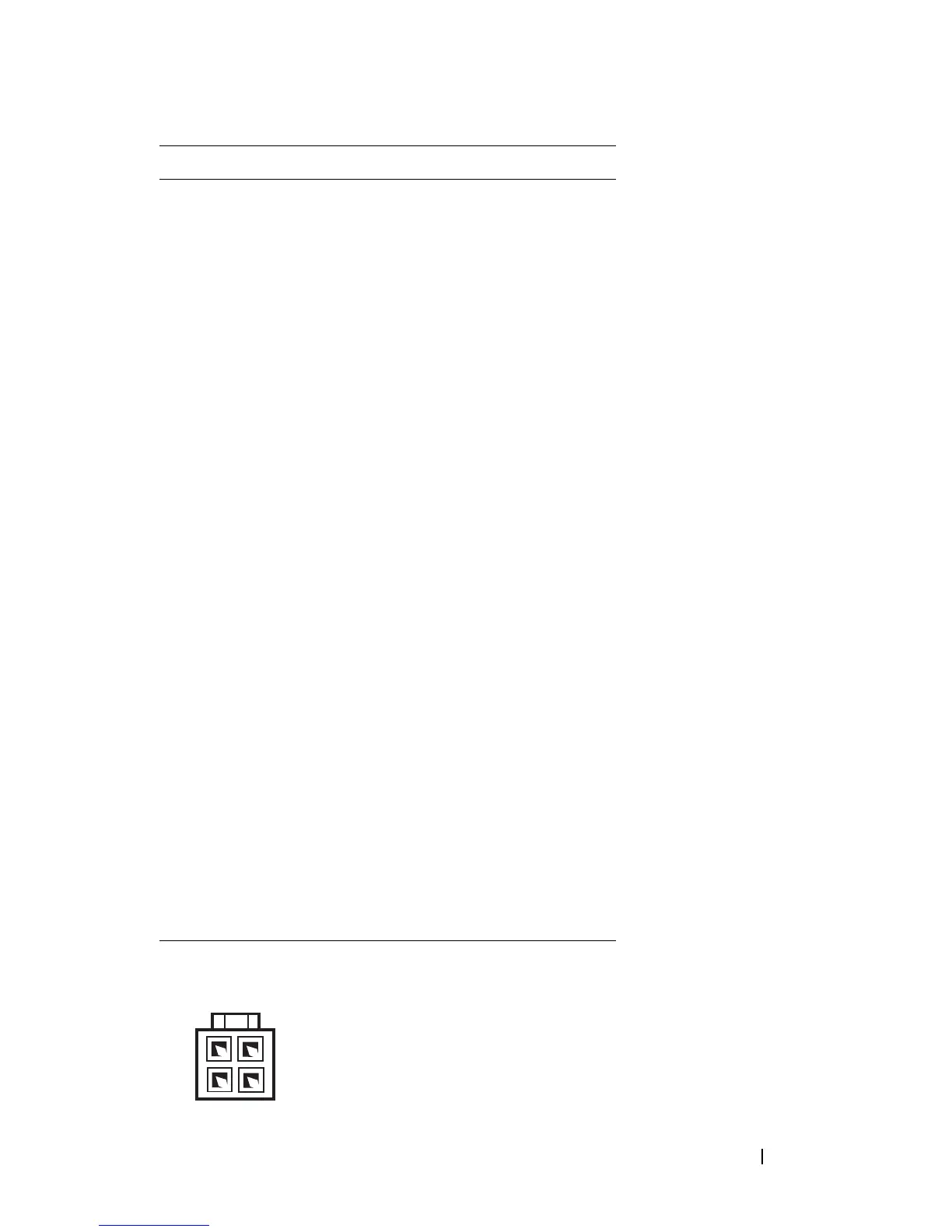

Dell OptiPlex 330 - Page 215

Desktop Computer Parts 215
DC Power Connector P2
2 3.3 V Orange 20 AWG
3 RTN Black 20 AWG
4 5 V Red 20 AWG
5 RTN Black 20 AWG
6 5 V Red 20 AWG
7 RTN Black 20 AWG
8 POK Gray 22 AWG
9 5 V AUX Purple 20 AWG
10 +12 V Yellow 20 AWG
11 +12 V Yellow 20 AWG
12 3.3 V Orange 20 AWG
13 3.3 V Orange 20 AWG
14 -12 V Blue 22 AWG
15 RTN Black 20 AWG
16 PS_ON Green 22 AWG
17 RTN Black 20 AWG
18 RTN Black 20 AWG
19 RTN Black 20 AWG
20 OPEN
21 5 V Red 20 AWG
22 5 V Red 20 AWG
23 5 V Red 20 AWG
24 RTN Black 20 AWG
Pin Number Signal name Wire Color Wire Size
3
1
4
2
