24 Mini Tower Computer Views
CAUTION: Ensure that none of the system air vents are blocked. Blocking them
would cause serious thermal problems.

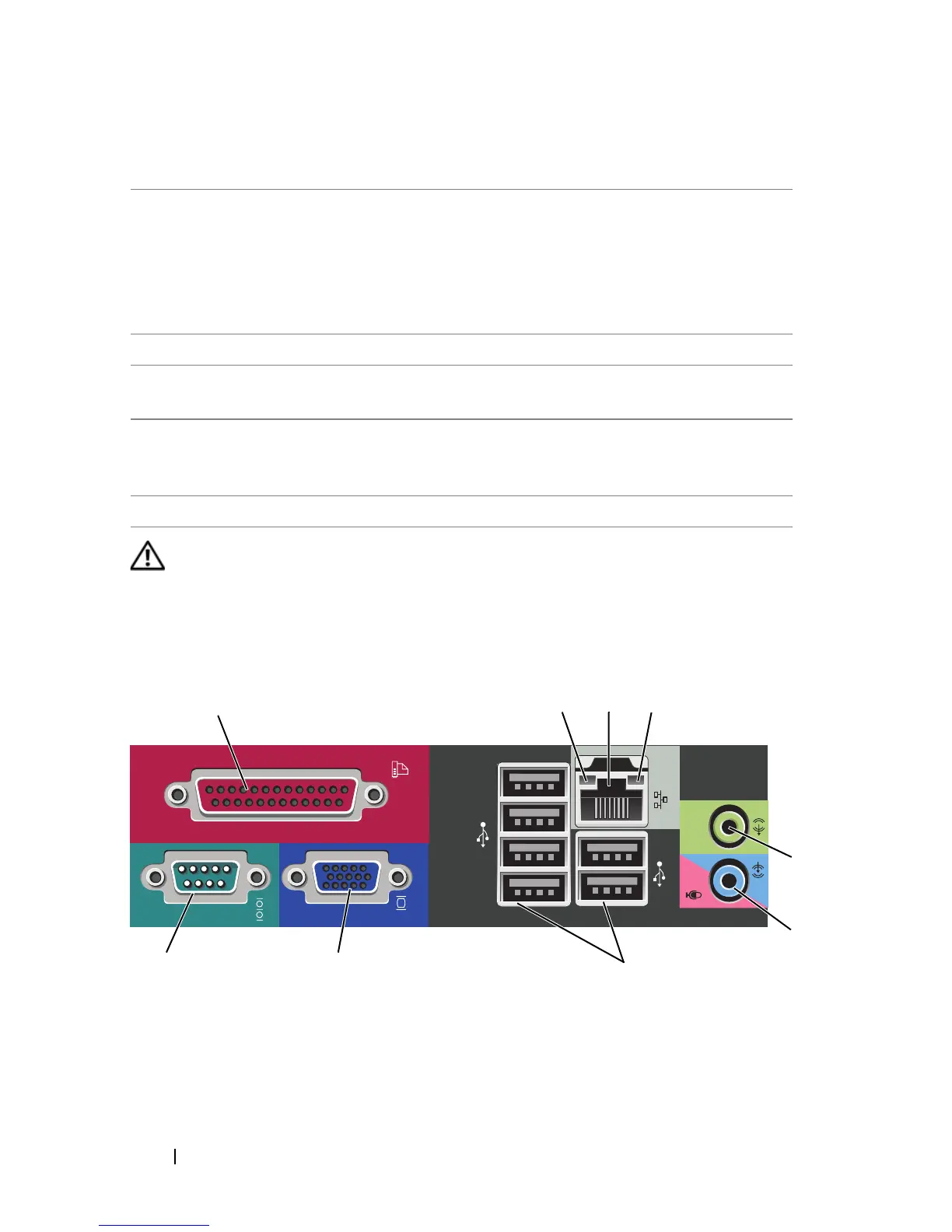

Back Panel Connectors
1 cover release latch This latch allows you to open the computer cover.
2 padlock rings Padlock rings are for attaching a commercially available
antitheft device. The padlock rings allow you to secure the
computer cover to the chassis with a padlock to prevent
unauthorized access to the inside of the computer. To use
the padlock rings, insert a commercially available padlock
through the rings, and then lock the padlock.
3 power connector Insert the power cable.
4 voltage selector
switch
For selecting voltage rating.
5 back panel
connectors
Plug USB, audio, and other devices into the appropriate
connector (see "Back Panel Connectors" on page 24 for
more information.
6 card slots Access connectors for any installed PCI and PCI Express cards.
1
3
98 7
5
6
24
